Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

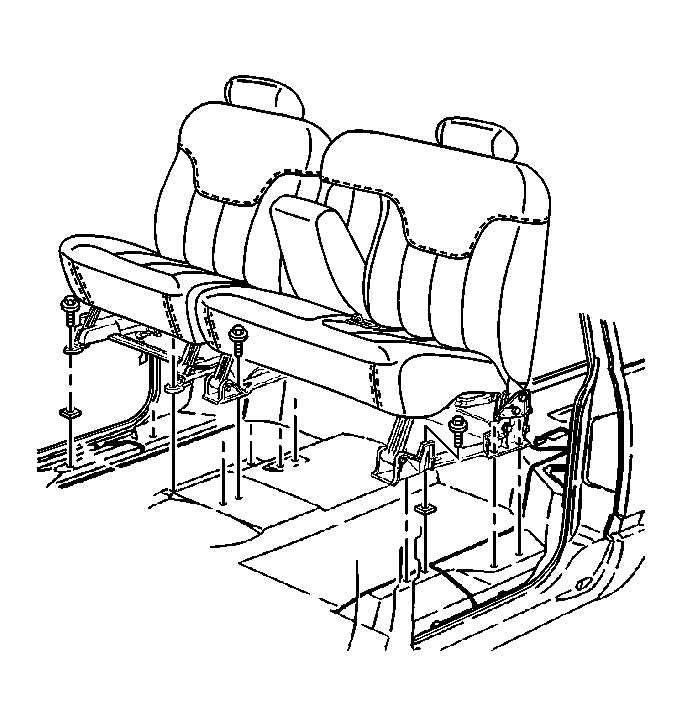

    Fig 1: Rear Seat (60/40 Split)
    GM276317Courtesy of GENERAL MOTORS CORP.
  1. Install the seat into the vehicle.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the seat retaining bolts.

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

  3. Connect the electrical connectors, if equipped.
  4. Install the jack assembly, if removed.
  5. Install the covers to the seat bolts.
  6. Install the seat back recliner handle screw, if removed.

    Tighten:  Tighten the screw to 2 N.m (18 lb in).

  7. Install the front and the rear leg trim covers.
