Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with side air bags, disable the SIR system. Refer to DISABLING SYSTEM .
  2. Move the seat to the full rearward position. Remove the front seat nut cover (3), if equipped.

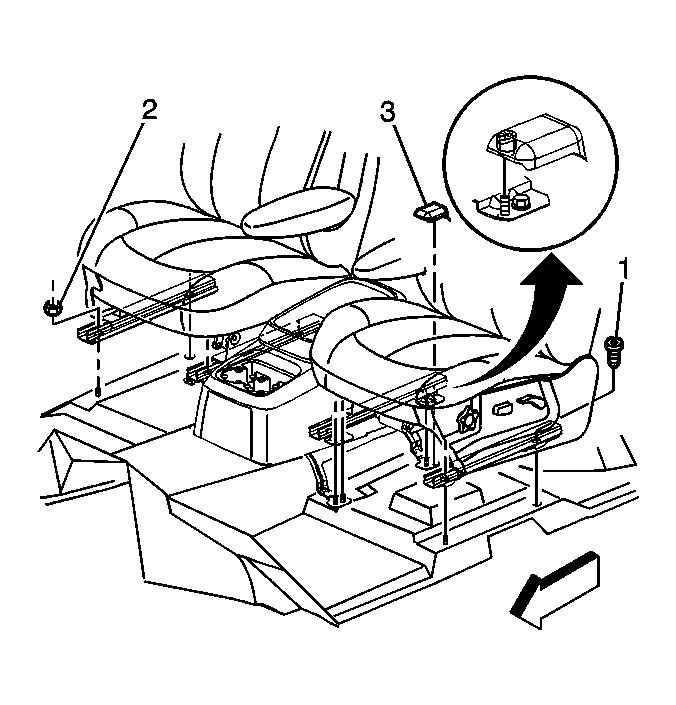

    Fig 1: Front Seat Nut Cover & Seat Retaining Front Nuts - Front Bucket
    GM363709Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat retaining front nuts (2).
  4. Move the seat to the full forward position in order to remove the seat retaining rear bolts (1).
  5. Disconnect the electrical harness, if equipped.
  6. Remove the seat from the vehicle.
