Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

5) - This step simulates pressing and releasing a properly functioning traction control switch.
6) - The traction control switch may be damaged if the traction control switch signal circuit is shorted to voltage.
7) - This step test if the ignition 1 voltage circuit can supply adequate power to the traction control switch.
8) - This step tests if the EBCM is commanding the traction off indicator OFF.

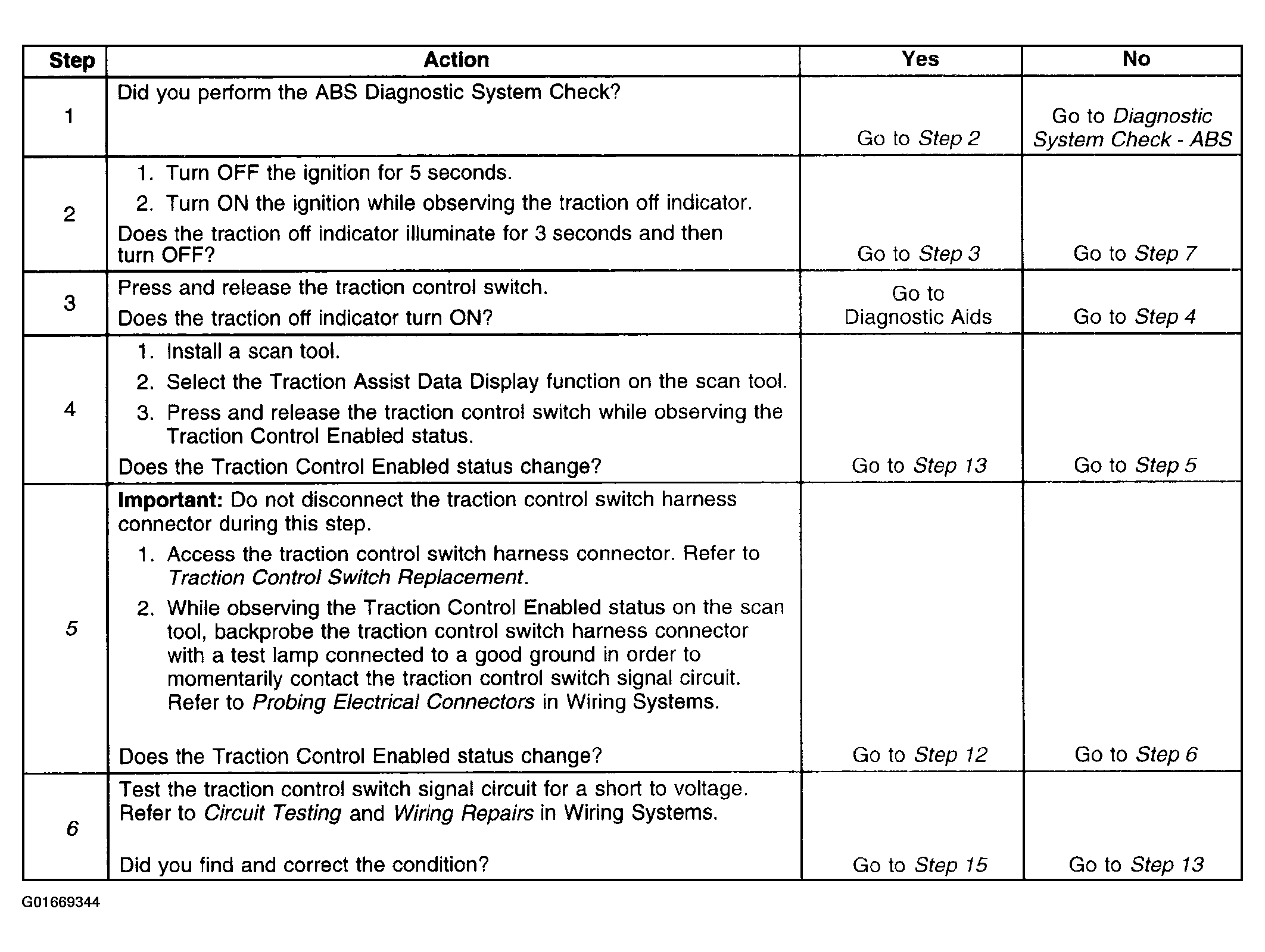

Fig 1: Traction Off Indicator Inoperative Diagnosis (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

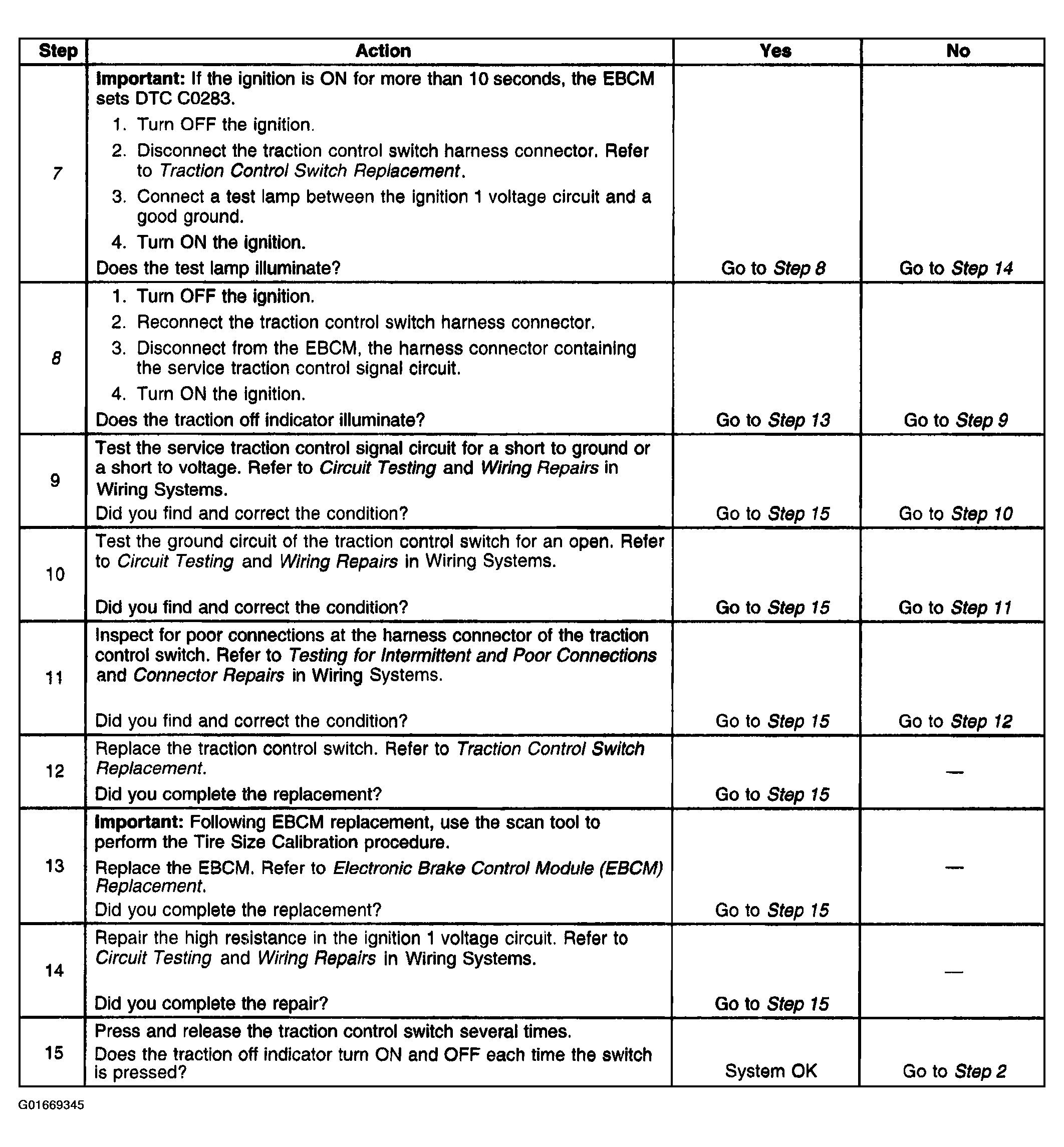

Fig 2: Traction Off Indicator Inoperative Diagnosis (Steps 7-15)

Courtesy of GENERAL MOTORS CORP.
