Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

4) - This step tests for a shorted stoplamp switch.
5) - This step tests for an open stoplamp switch.

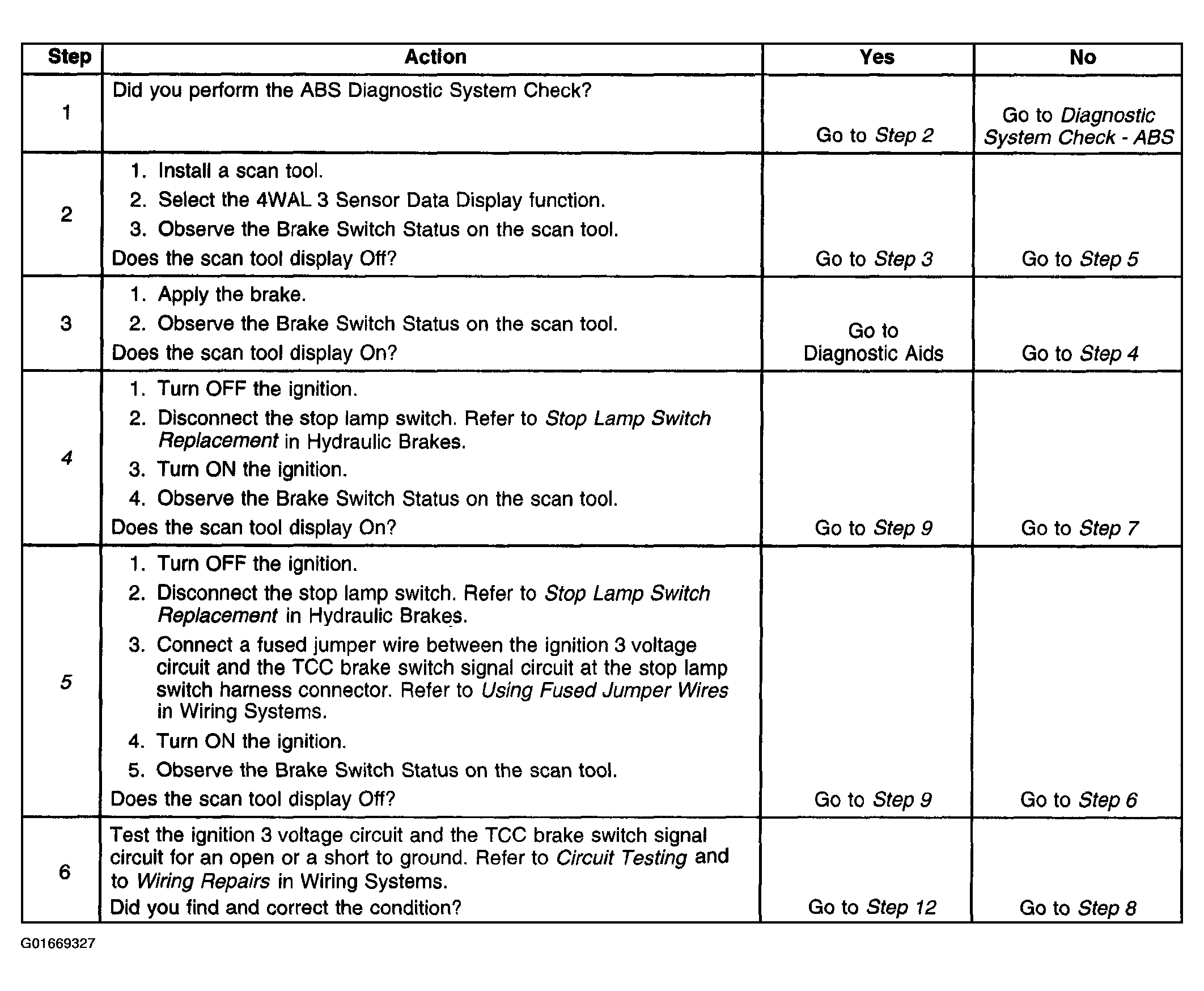

Fig 1: DTC C0281 Diagnosis (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

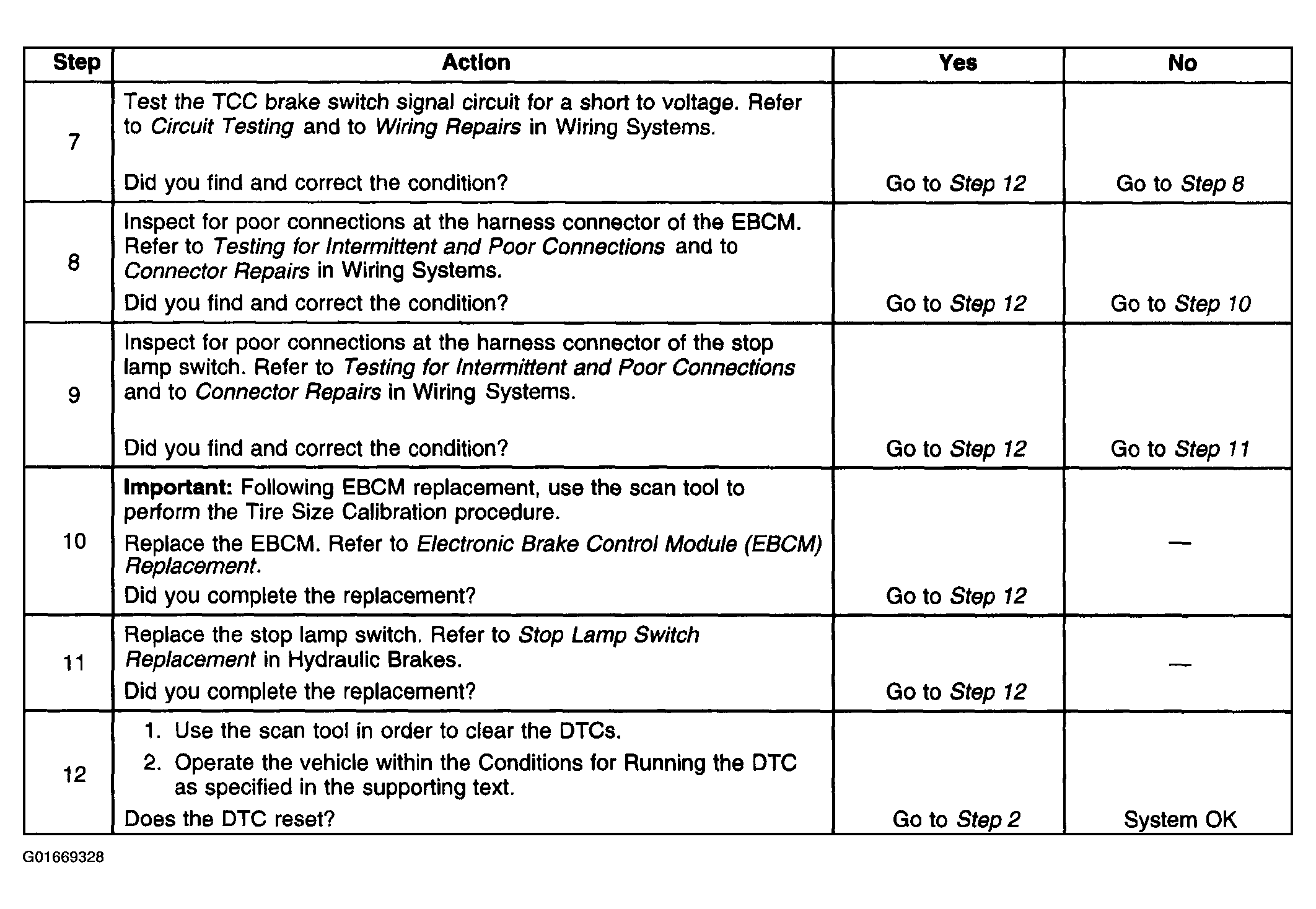

Fig 2: DTC C0281 Diagnosis (Steps 7-12)

Courtesy of GENERAL MOTORS CORP.
