Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

4) - If the front tires are not the same size as the rear tires, the EBCM calibration must match the FRONT tire size and the PCM calibration must match the REAR tire size.

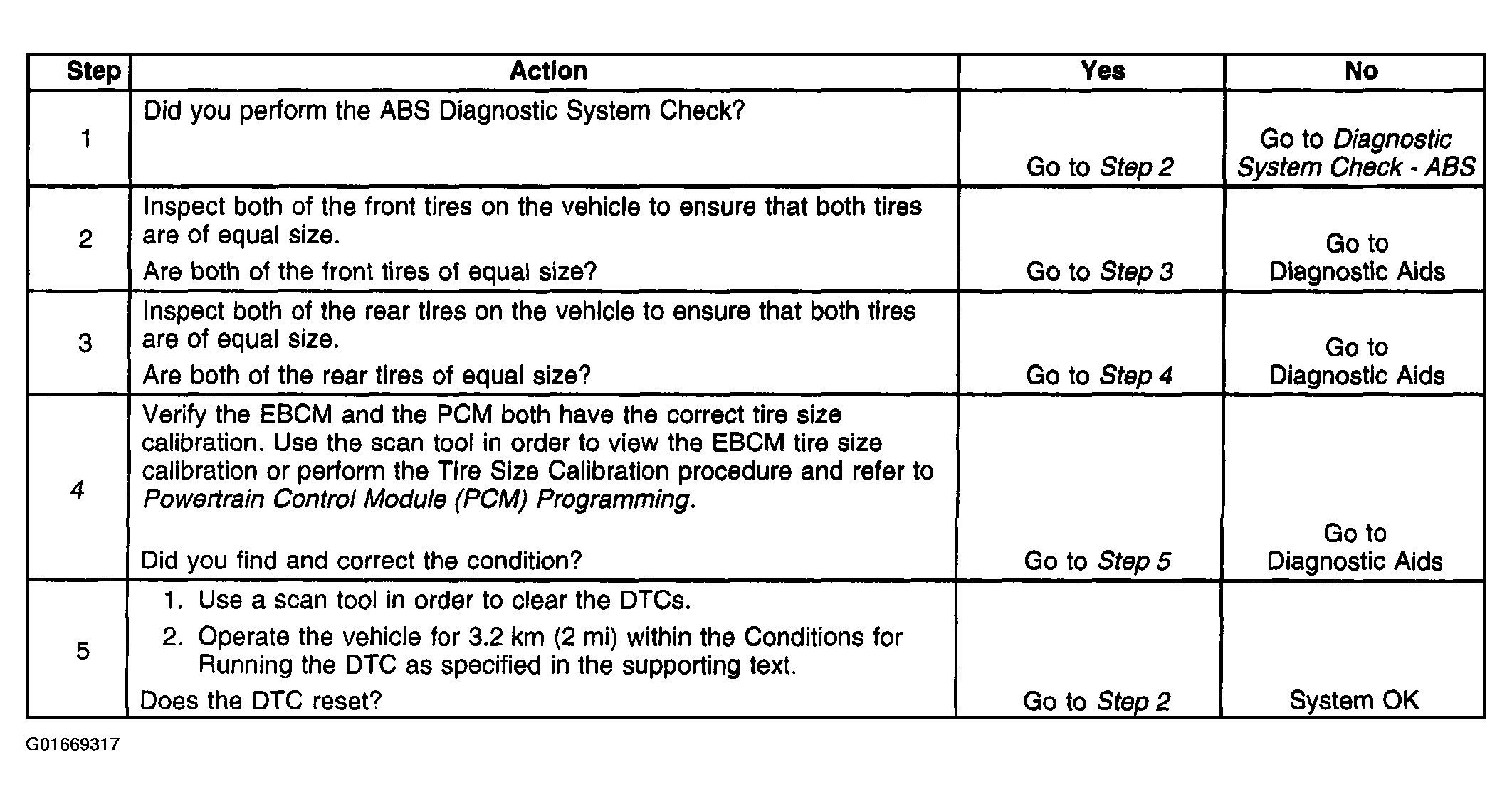

Fig 1: DTC C0238 Diagnosis

Courtesy of GENERAL MOTORS CORP.
