Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body wiring harness junction block but do not disconnect the harness.
  2. Remove the park brake warning lamp switch mounting bolt.
  3. Remove the park brake warning lamp switch.

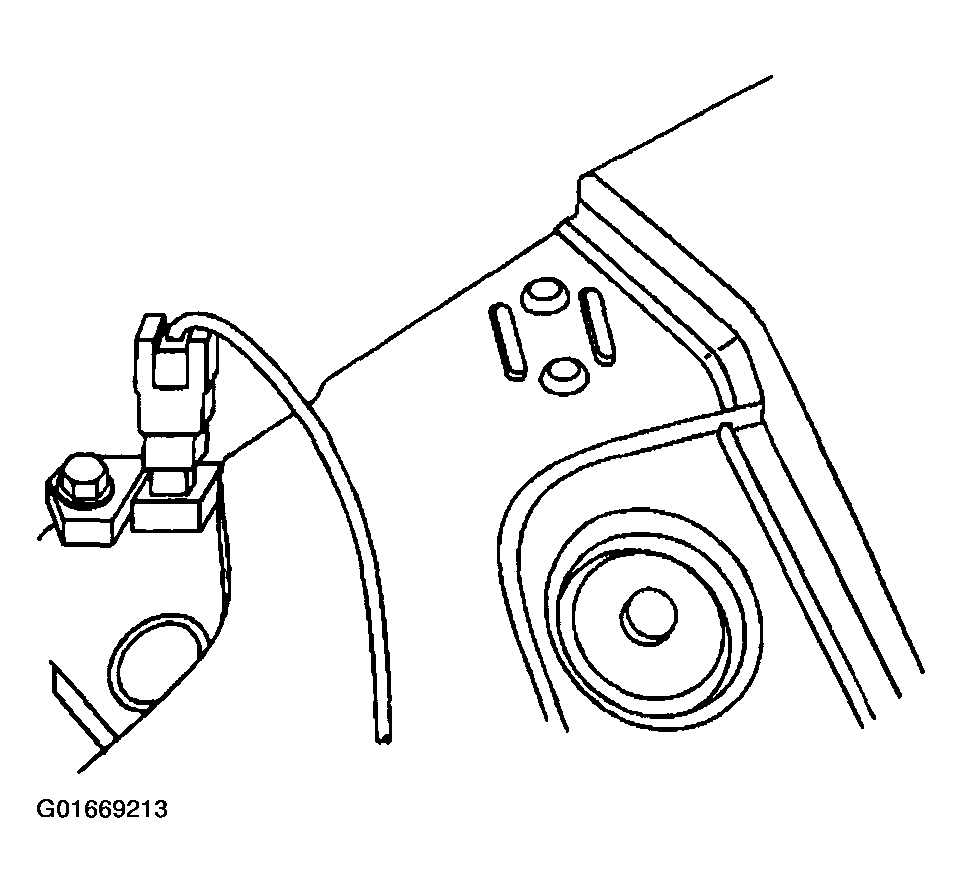

    Fig 1: Park Brake Warning Lamp Switch
    G01669213Courtesy of GENERAL MOTORS CORP.
