Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake.
  2. Raise and support the vehicle.
  3. Remove the tire and wheel assembly.
  4. Relieve the tension from the park brake cable by pulling down on the intermediate cable then release the cable from the equalizer bar.

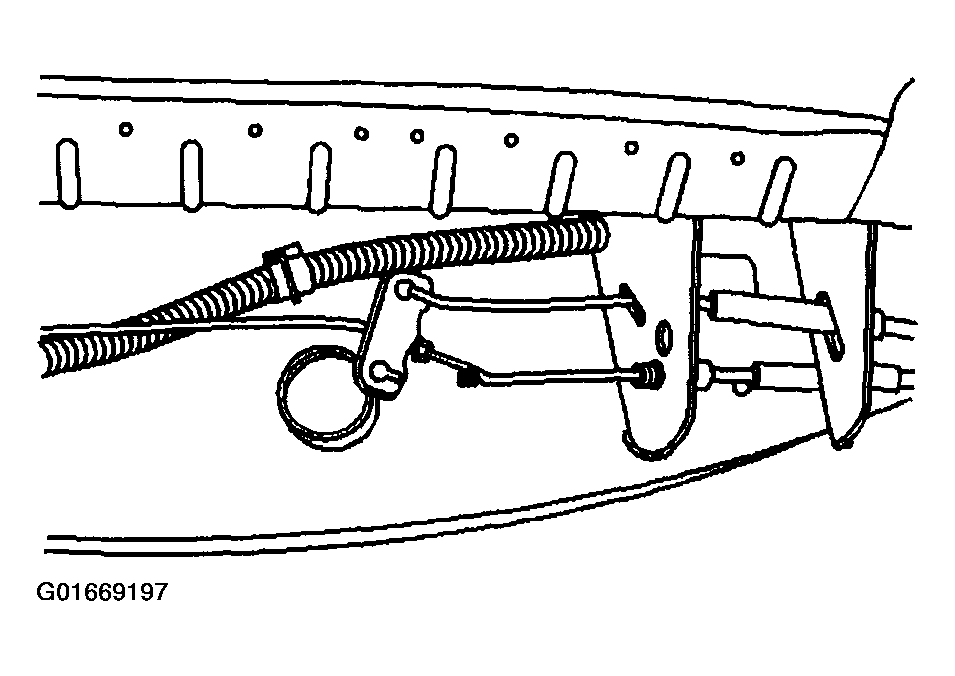

    Fig 1: Park Brake Cable Equalizer Bar
    G01669197Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear park brake bracket bolt.

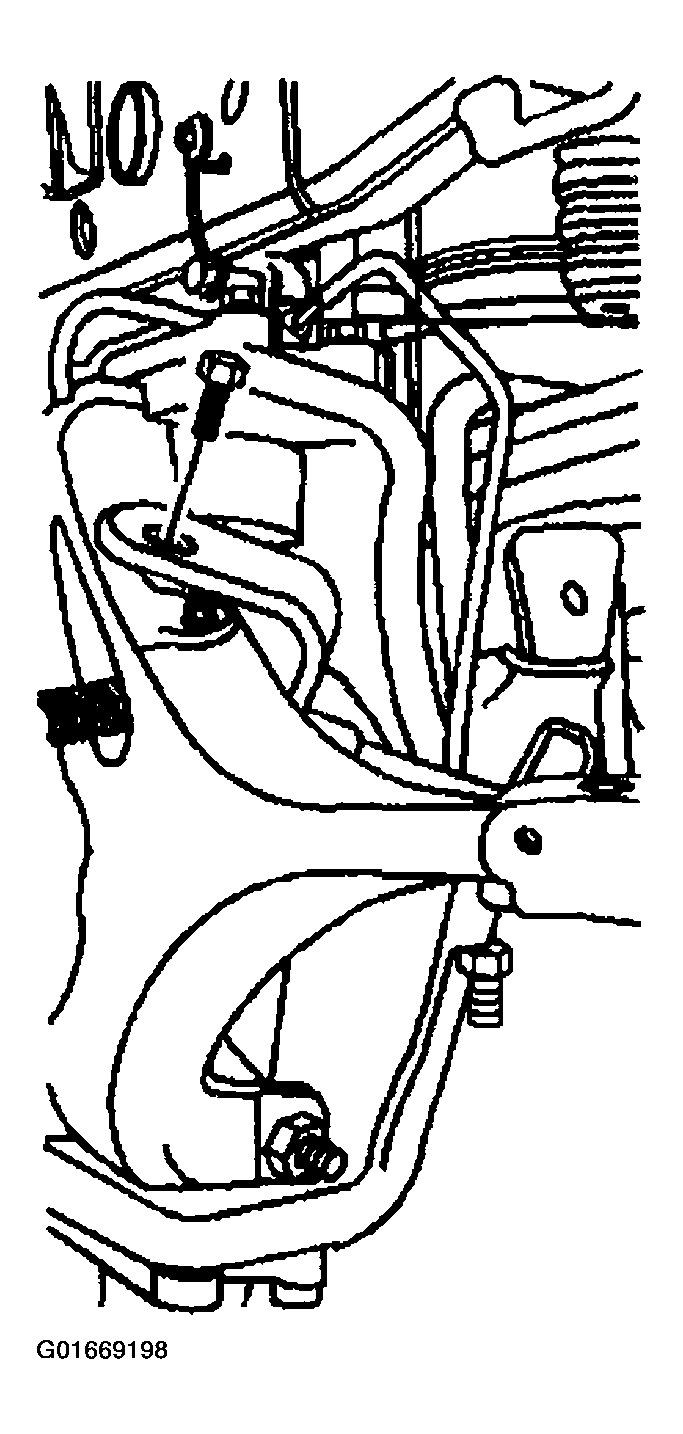

    Fig 2: Rear Park Brake Bracket Bolt
    G01669198Courtesy of GENERAL MOTORS CORP.
  6. Remove the park brake cable from the park brake actuator lever.
  7. Remove the wheel bearing. Refer to WHEEL HUB & BEARING REPLACEMENT .
  8. Remove the park brake assembly and backing plate from the steering knuckle.
  9. Remove the park brake shoe retaining clip bolt and retaining clip bolt and retaining clip.
  10. Remove the park brake shoe from the actuator.

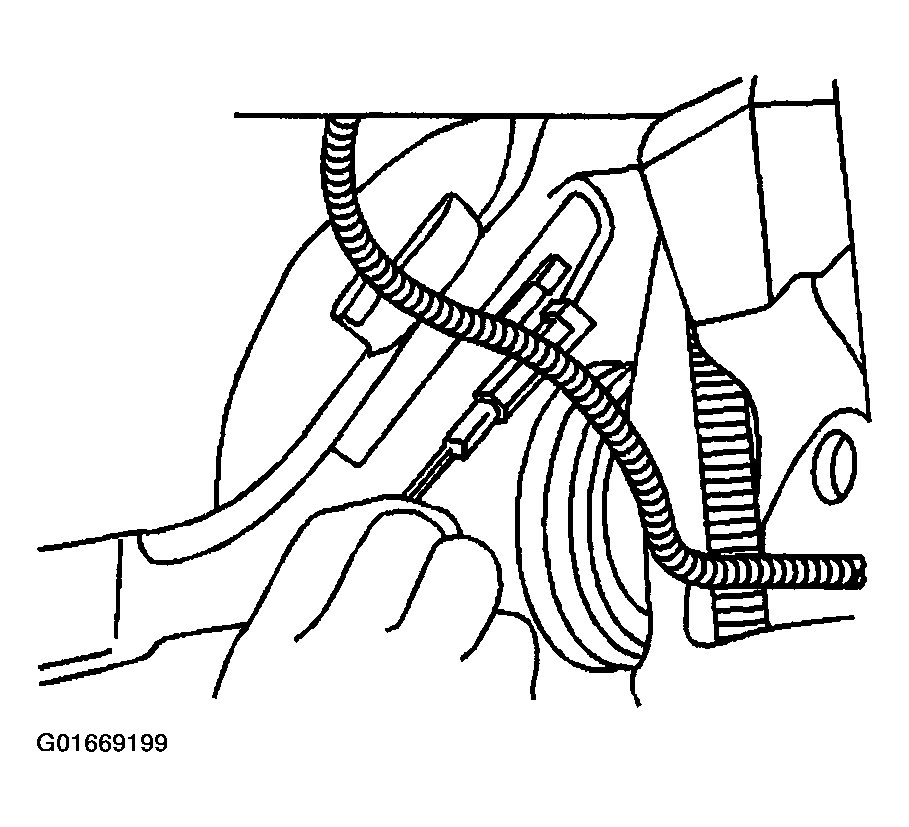

    Fig 3: Park Brake Shoe Actuator
    G01669199Courtesy of GENERAL MOTORS CORP.
