Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Relieve the tension from the park brake cables from the equalizer by pulling down on the intermediate cable and release the rear cables from the equalizer bar.
    Fig 1: Park Brake Cable Equalizer
    G01669207Courtesy of GENERAL MOTORS CORP.
  4. Remove the safety stands.
  5. Lower the vehicle.
  6. Remove the left side hinge pillar panel.
  7. Disconnect the park brake warning lamp connection.
  8. Remove the MID-Bussed Electrical Center bracket.
  9. Disconnect the park brake release cable from the park brake lever.

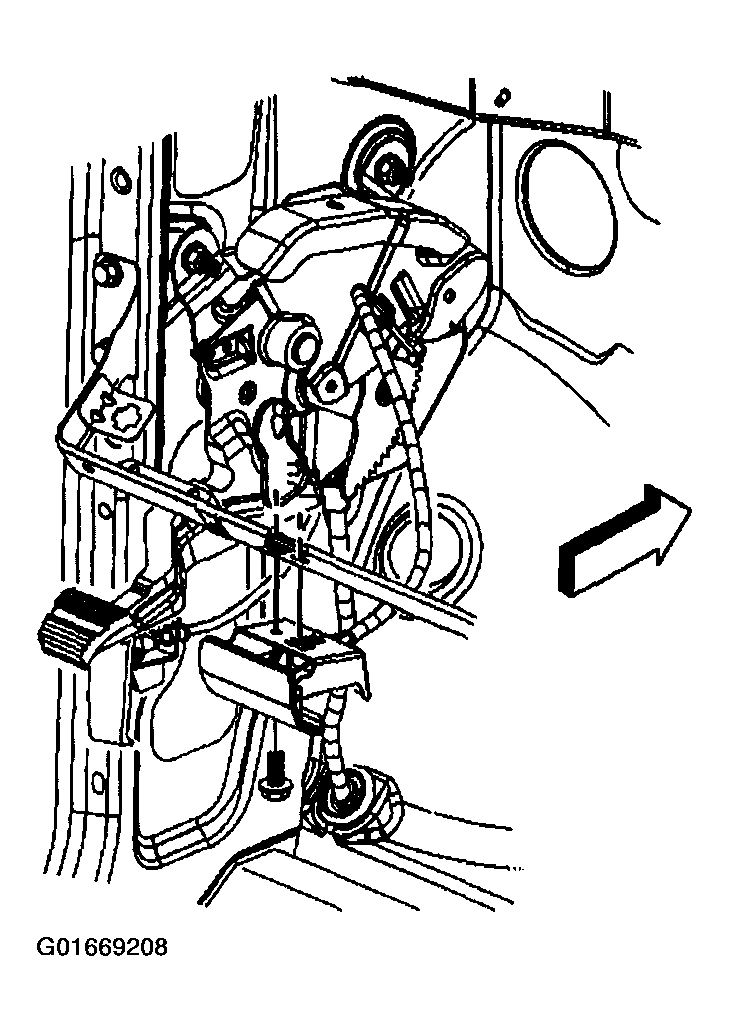

    Fig 2: Park Brake Lever
    G01669208Courtesy of GENERAL MOTORS CORP.
  10. Remove the park brake lever mounting nuts.
  11. Disconnect the front park brake cable from the park brake lever.
  12. Remove the park brake lever.

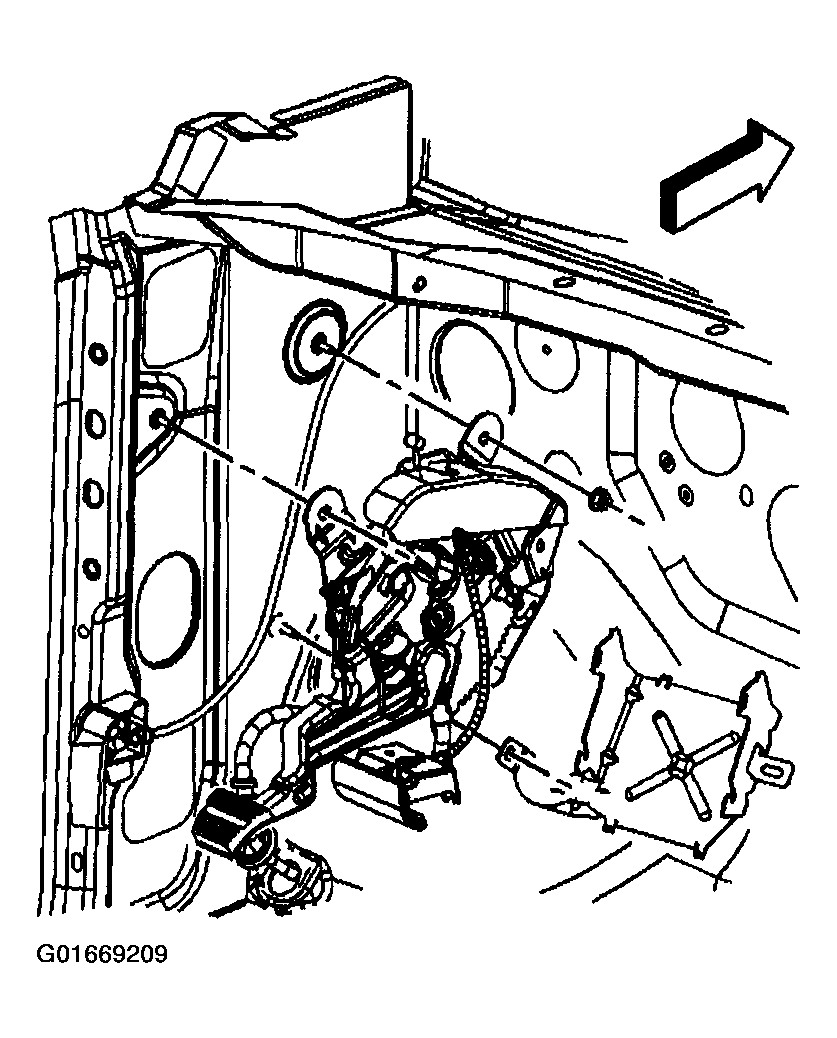

    Fig 3: Park Brake Pedal Assembly
    G01669209Courtesy of GENERAL MOTORS CORP.
