Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Release the park brake.
Raise and support the vehicle.
Relieve the tension on the cable by loosening the nut at the equalizer.
Disconnect the cable from the equalizer.

Fig 1: Park Brake Cable Equalizer
Courtesy of GENERAL MOTORS CORP.
Remove the bolt from the rear axle clip.
Remove the cable from the differential clip.

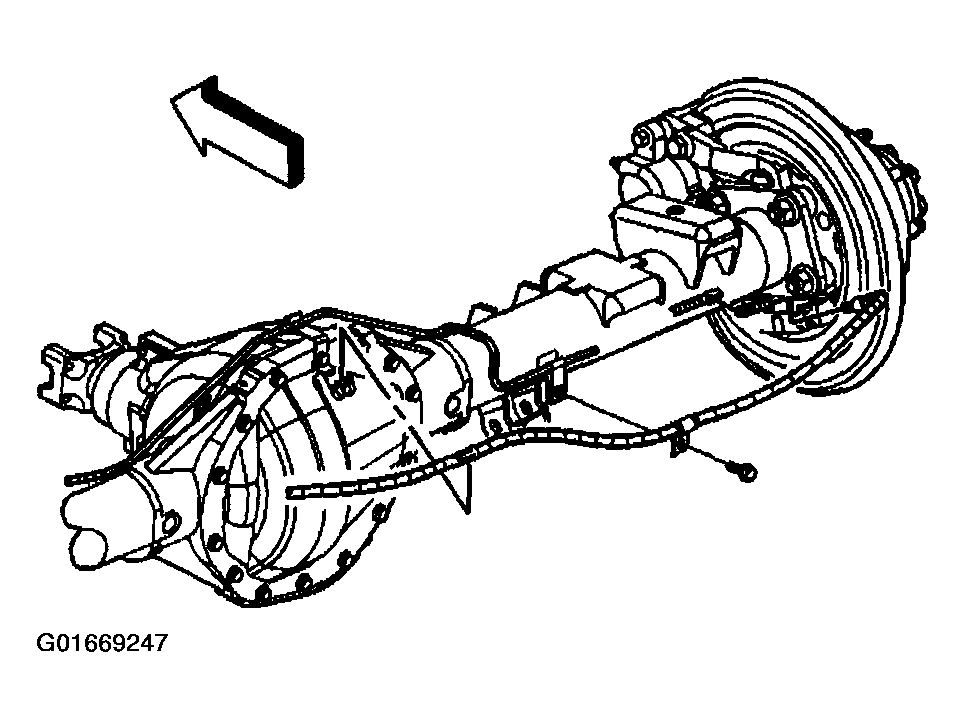

Fig 2: Park Brake Cable Differential Clip
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the mounting bracket by depressing the locking tabs.

Fig 3: Park Brake Cable From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the left and right side cable guides, 15-Series utilities.
Remove the cable from the track bar clips.

Fig 4: Park Brake Cable Track Bar Clips
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the lever, all except 15-Series utilities.
Remove the cable from the backing plate by depressing the locking tabs.
Remove the cable from the retaining bracket.

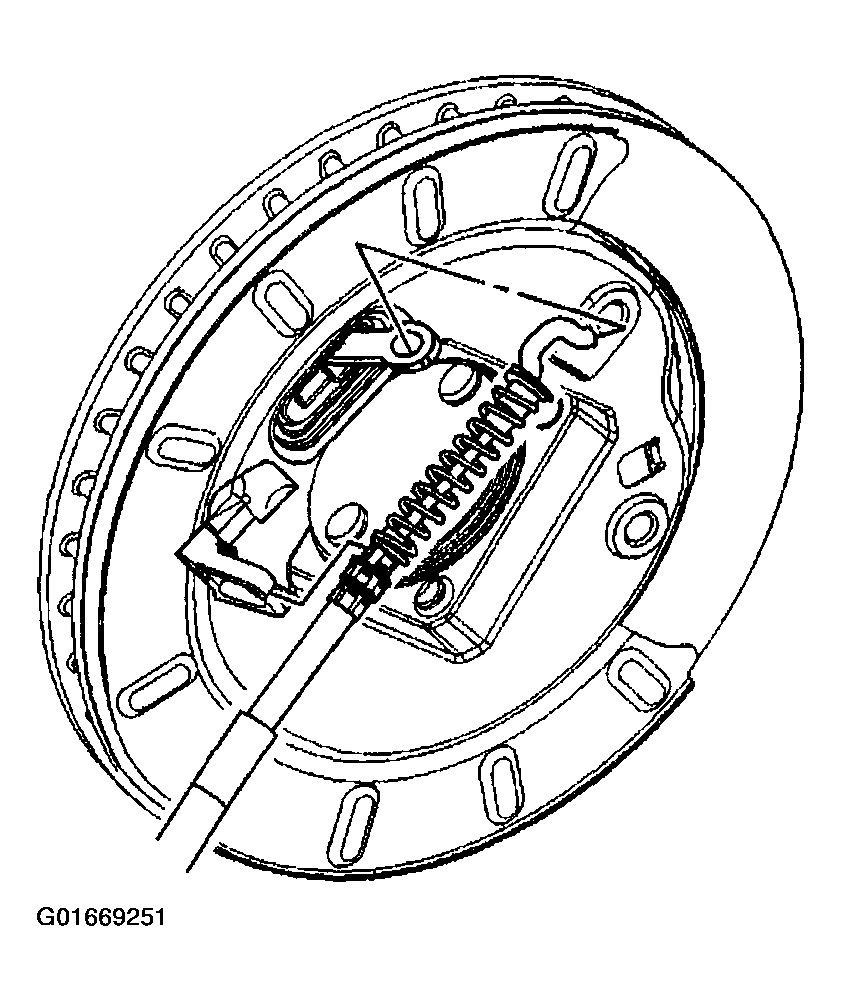

Fig 5: Park Brake Cable Retaining Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the cable.
Remove the cable from the lever, 15 series utilities.
Remove the cable from the backing plate by depressing the locking tabs.
Remove the cable from the retaining bracket.

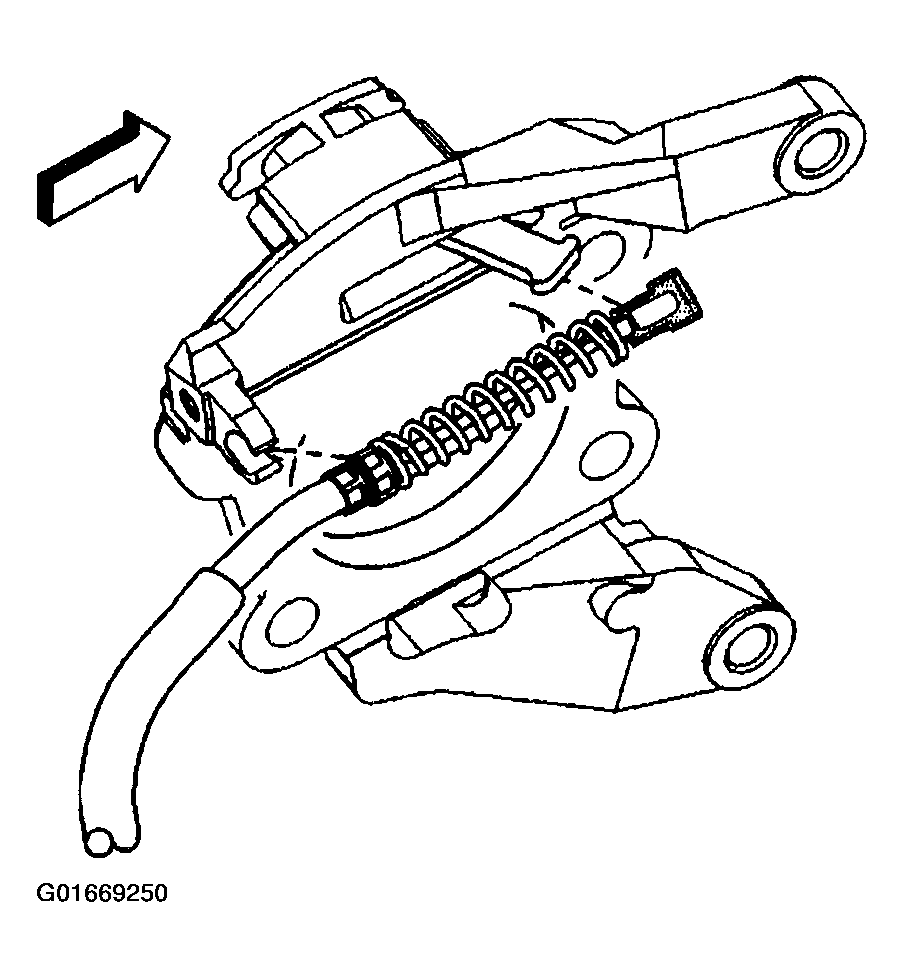

Fig 6: Park Brake Cable Retaining Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the cable.
