Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake.
  2. Raise and support the vehicle.
  3. Remove the nut from the threaded end of the intermediate cable.
  4. Disconnect the equalizer from the rear park brake cables.
    Fig 1: Park Brake Cable Equalizer
    G01669219Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the intermediate cable from the front cable.
  6. Remove the intermediate cable.

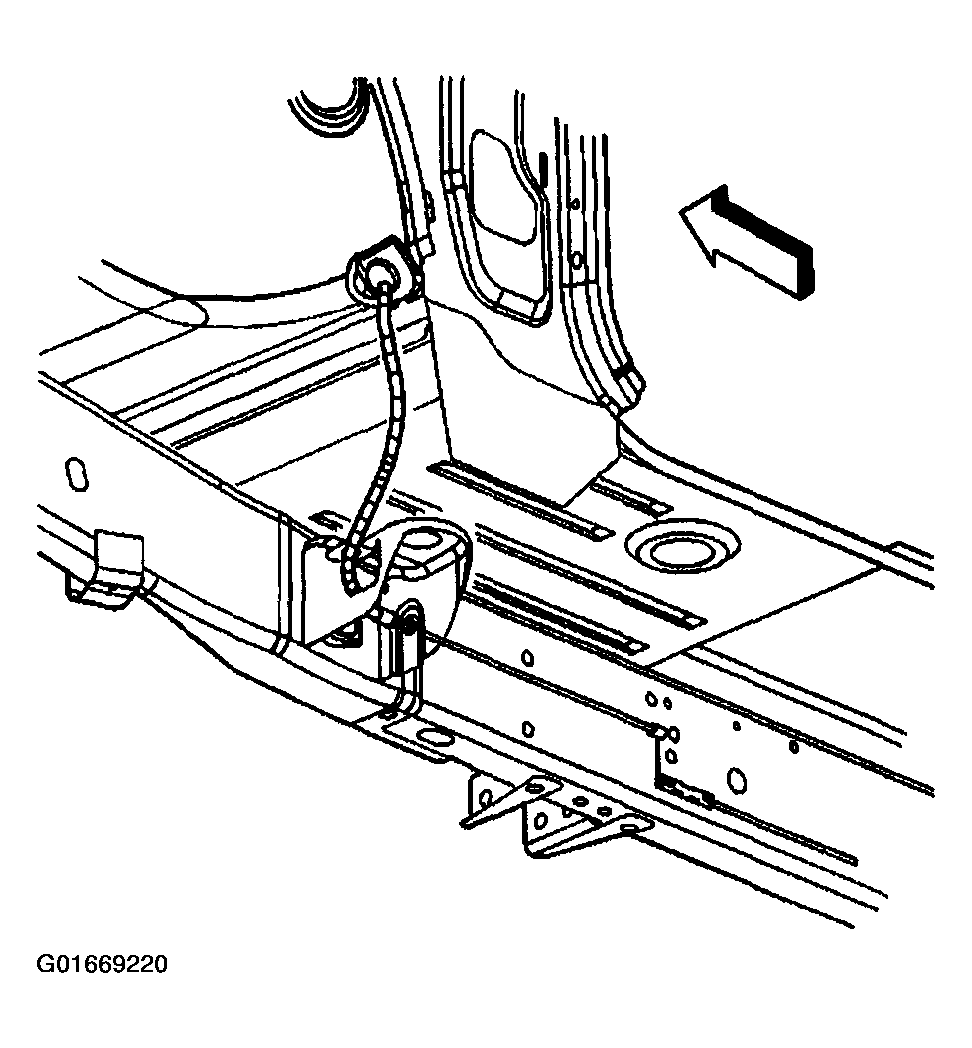

    Fig 2: Park Brake Intermediate Cable
    G01669220Courtesy of GENERAL MOTORS CORP.
