Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Release the park brake.
Remove the park brake pedal. Refer to Park Brake Pedal Assembly Replacement .
Roll the carpet back to access cable grommet.

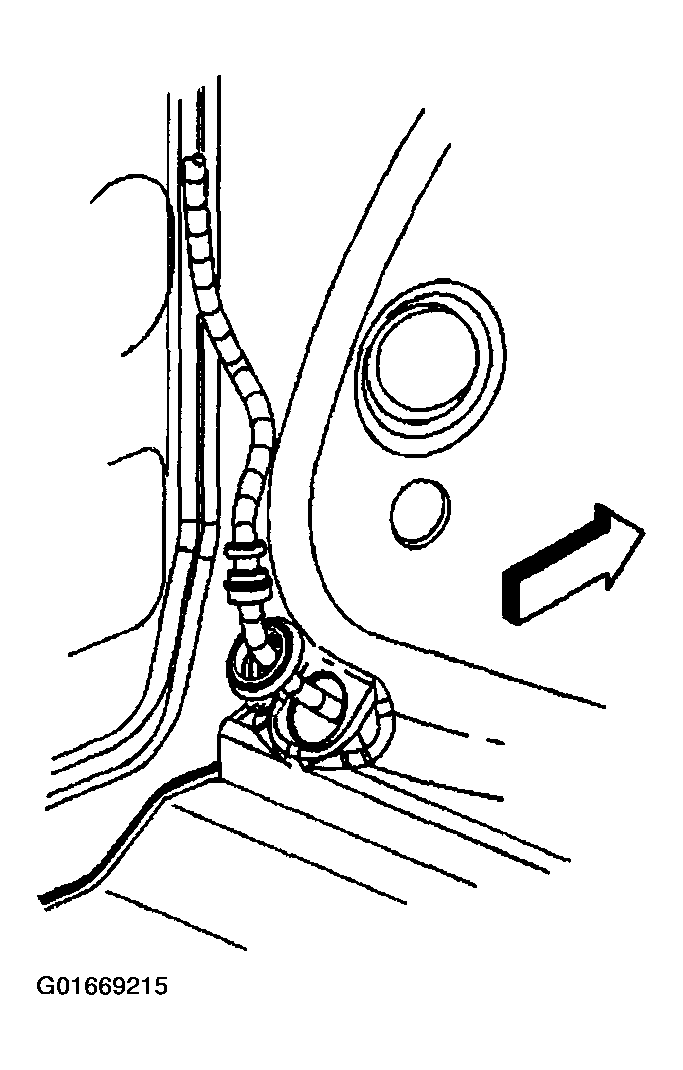

Fig 1: Cable Grommet

Courtesy of GENERAL MOTORS CORP.

Raise and support the vehicle.
Disengage the grommet and the cable from the floor pan.
Disconnect the front cable from the intermediate cable.
Remove the cable from the body mount by depressing the retaining tabs.
Remove the cable.

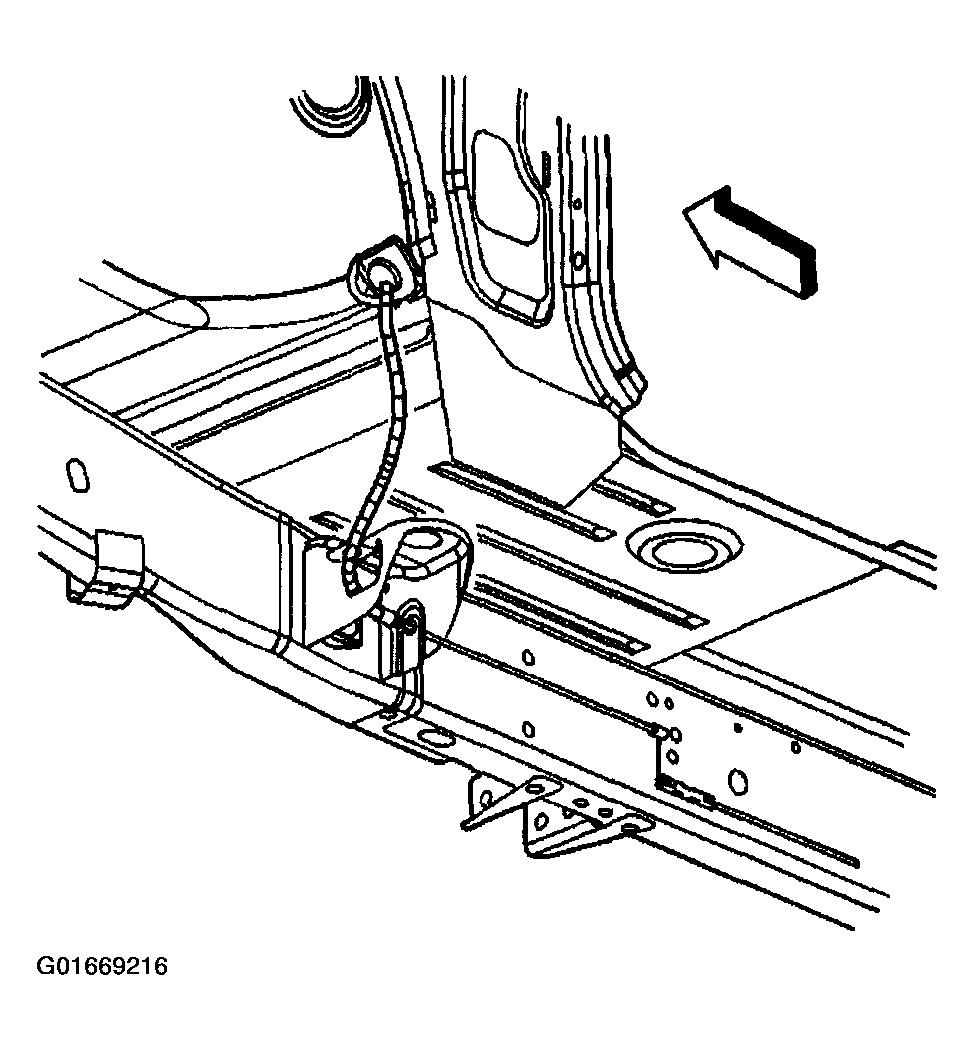

Fig 2: Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
