Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake.
  2. Raise and support the vehicle.
  3. Release the tension on the cables by loosening the nut at the equalizer.
  4. Disconnect the rear cables from the equalizer.
  5. Remove the rear cables from the mounting bracket by depressing the retaining tabs and pulling rearward.

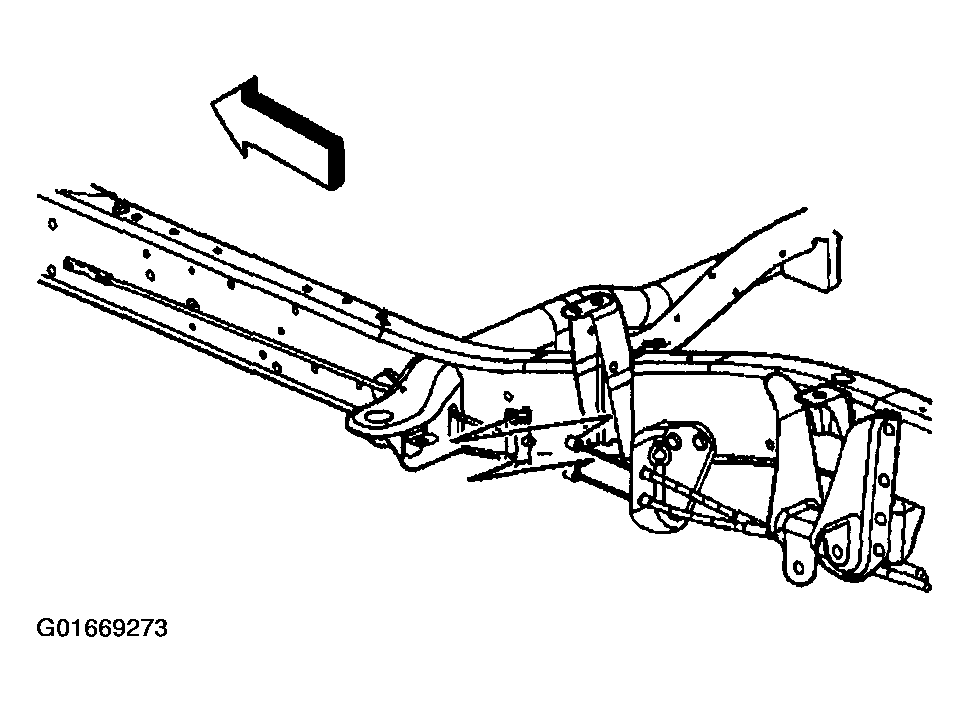

    Fig 1: Park Brake Cable Mounting Bracket
    G01669273Courtesy of GENERAL MOTORS CORP.
  6. Remove the cable support bracket nuts.
  7. Remove the cable support bracket.

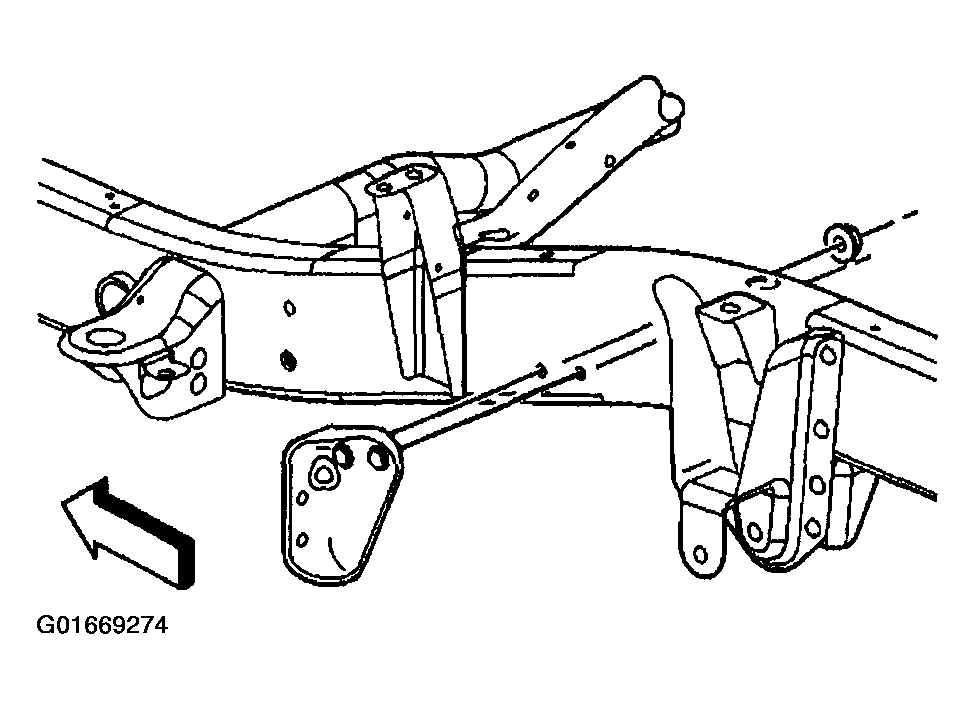

    Fig 2: Park Brake Cable Bracket
    G01669274Courtesy of GENERAL MOTORS CORP.
