Park Brake System Diagnosis

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

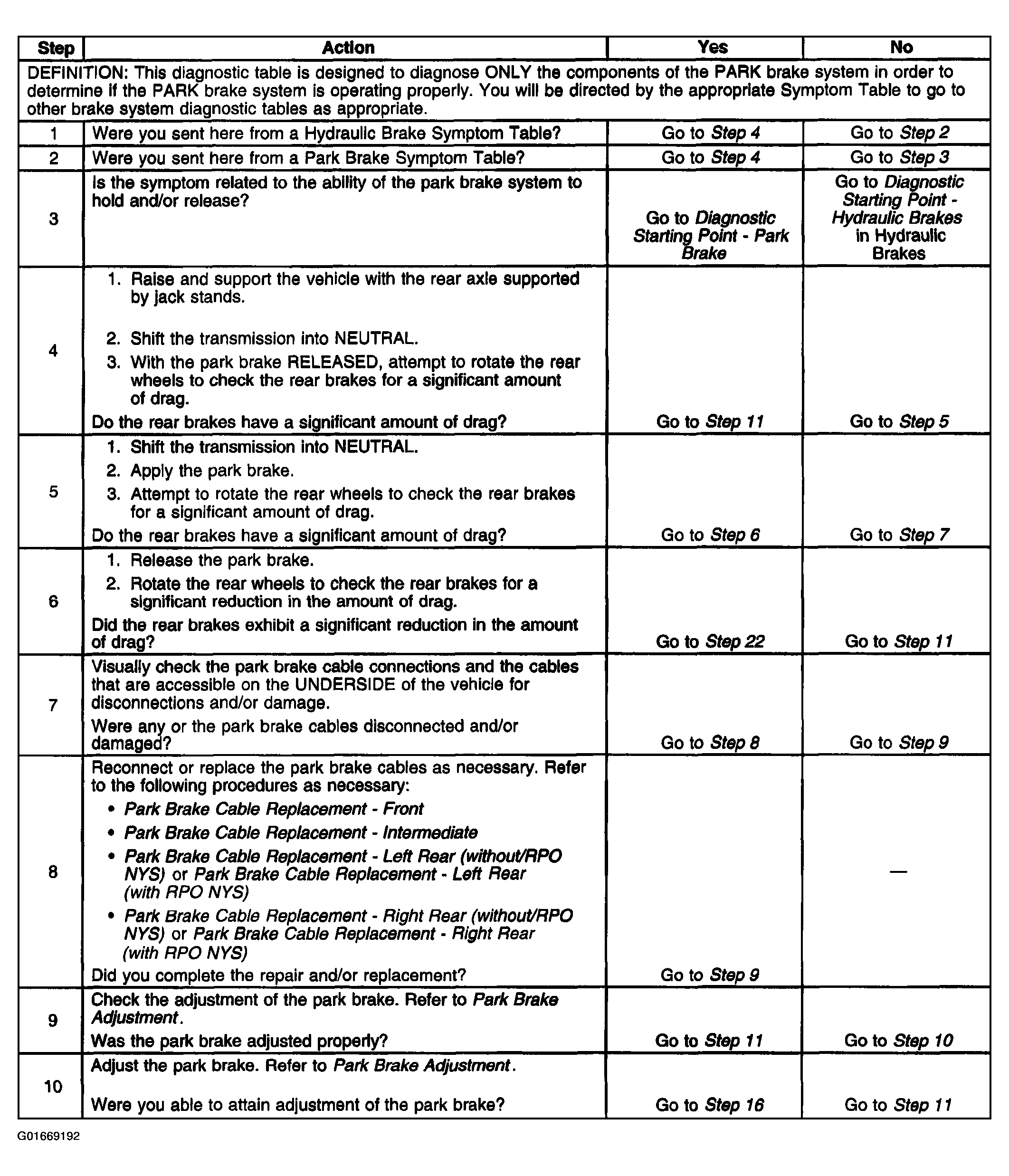

Fig 1: Park Brake System Diagnosis (Steps 1-10)

Courtesy of GENERAL MOTORS CORP.

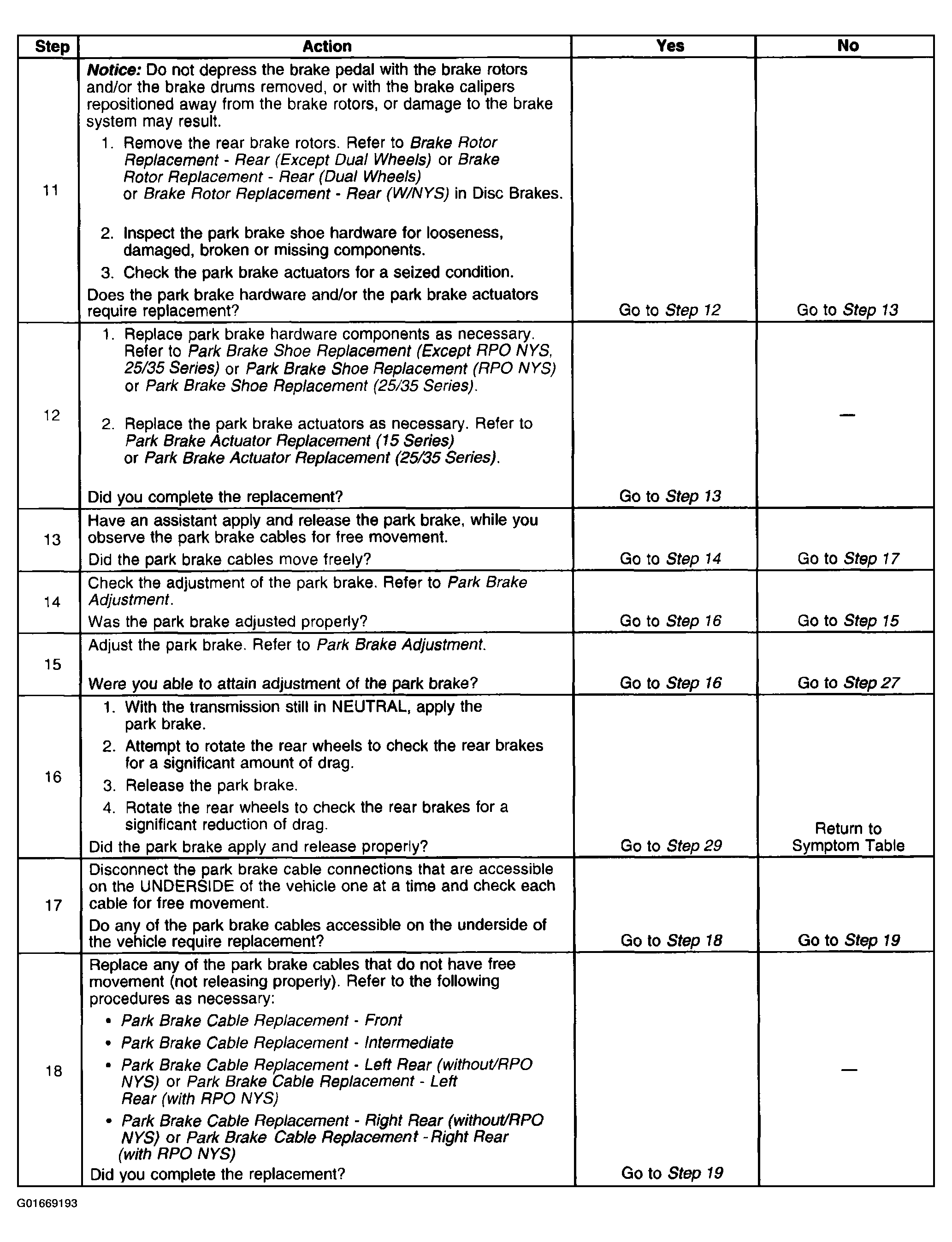

Fig 2: Park Brake System Diagnosis (Steps 11-18)

Courtesy of GENERAL MOTORS CORP.

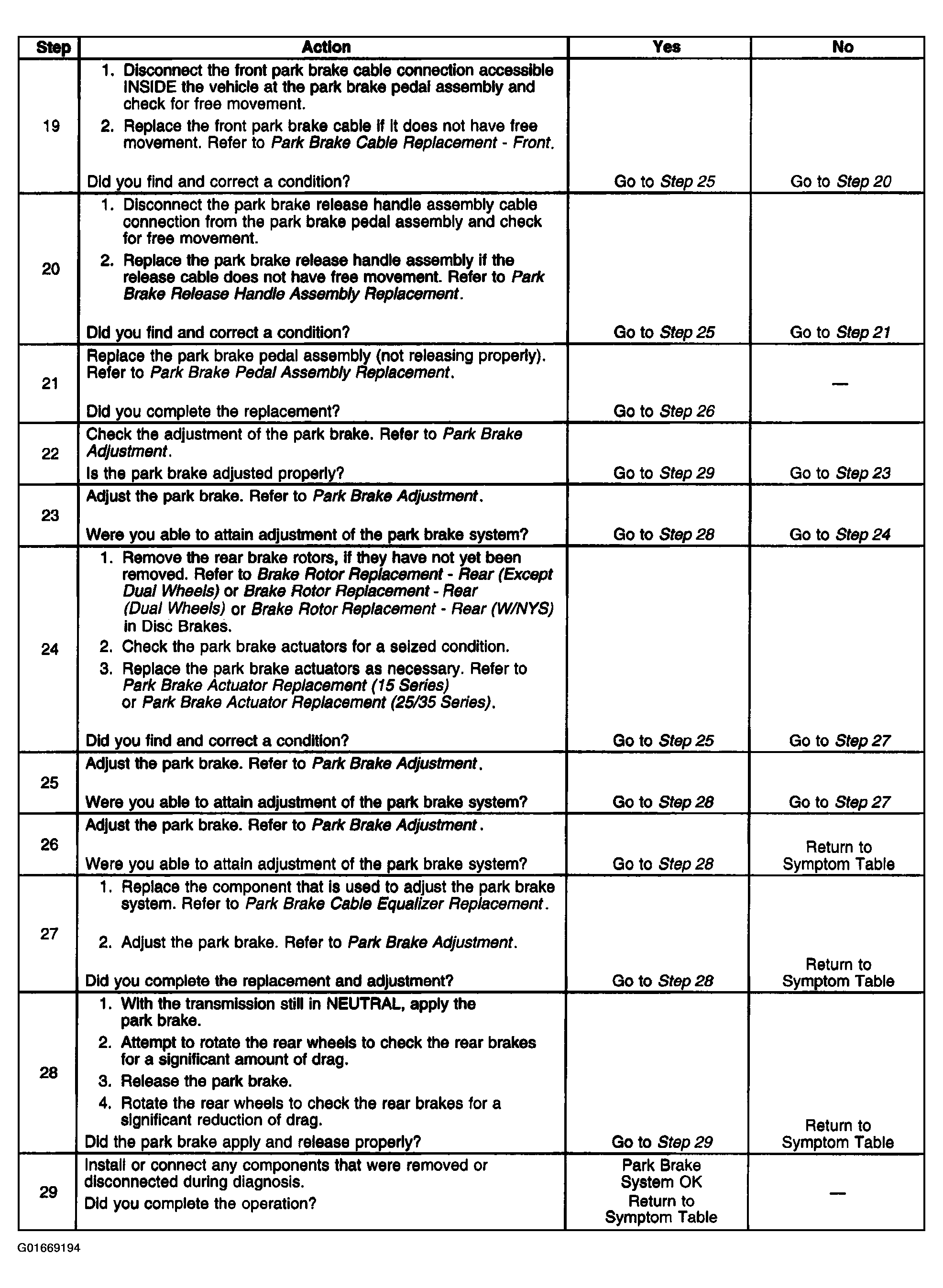

Fig 3: Park Brake System Diagnosis (Steps 19-29)

Courtesy of GENERAL MOTORS CORP.
