Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the stop lamp switch (2).
  2. Remove the pushrod retaining clip (4).
  3. Remove the stop lamp switch (2).

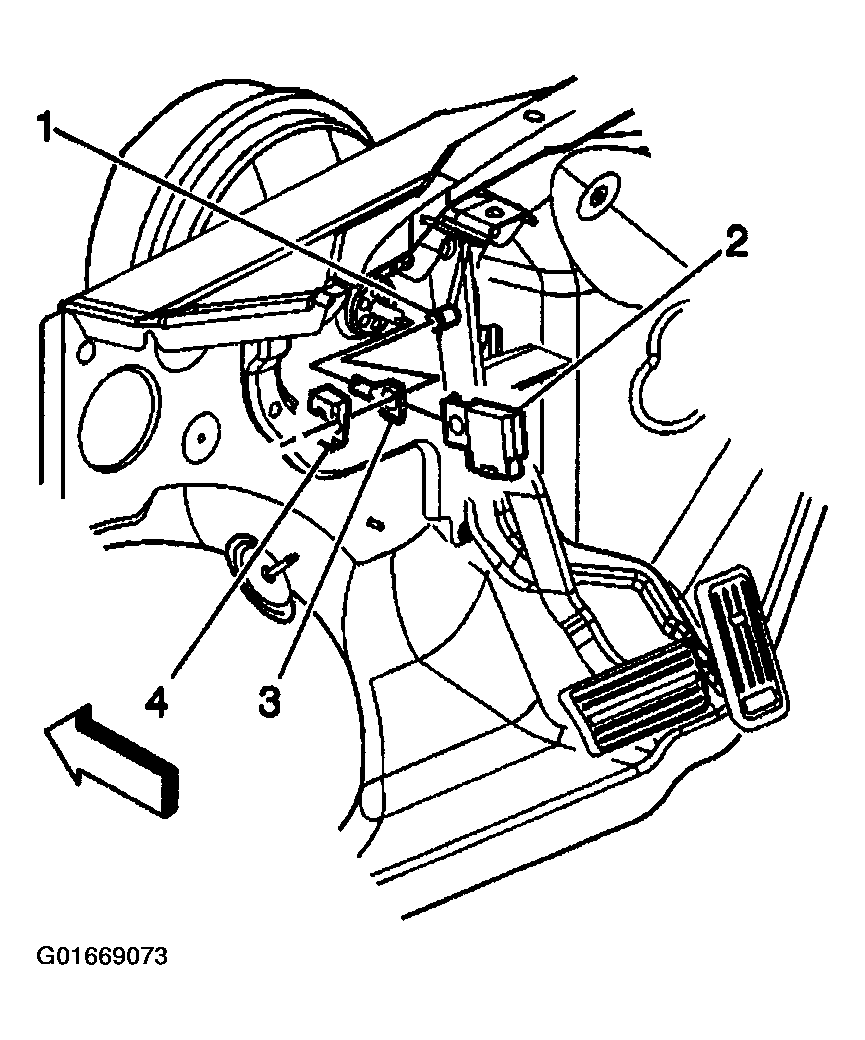

    Fig 1: Locating Stop Lamp Switch
    G01669073Courtesy of GENERAL MOTORS CORP.
