Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake and block the wheels.
  2. Disconnect the electrical connector from the brake fluid level sensor.
  3. Disconnect the brake pipes from the master cylinder.

    Important:  Install a rubber cap or plug to the exposed brake pipe fitting ends in order to prevent brake fluid loss and contamination.

  4. Plug the open brake pipe ends.

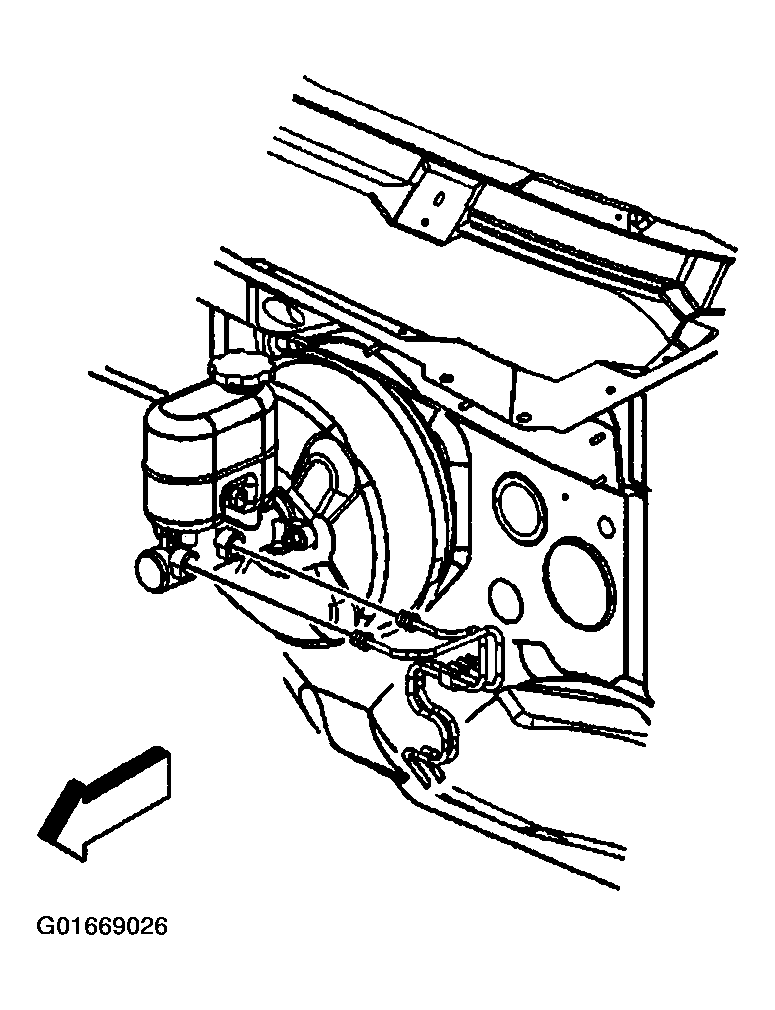

    Fig 1: Disconnecting Brake Pipes From Master Cylinder
    G01669026Courtesy of GENERAL MOTORS CORP.
  5. Remove the master cylinder mounting nuts.
  6. Remove the master cylinder from the vehicle.
  7. Remove the master cylinder reservoir. Refer to Master Cylinder Reservoir Replacement .
