Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the fluid level sensor.
  2. Remove the fluid level sensor (1). Use a needle nose pliers in order to compress the locking tabs at the opposite side of the master cylinder.

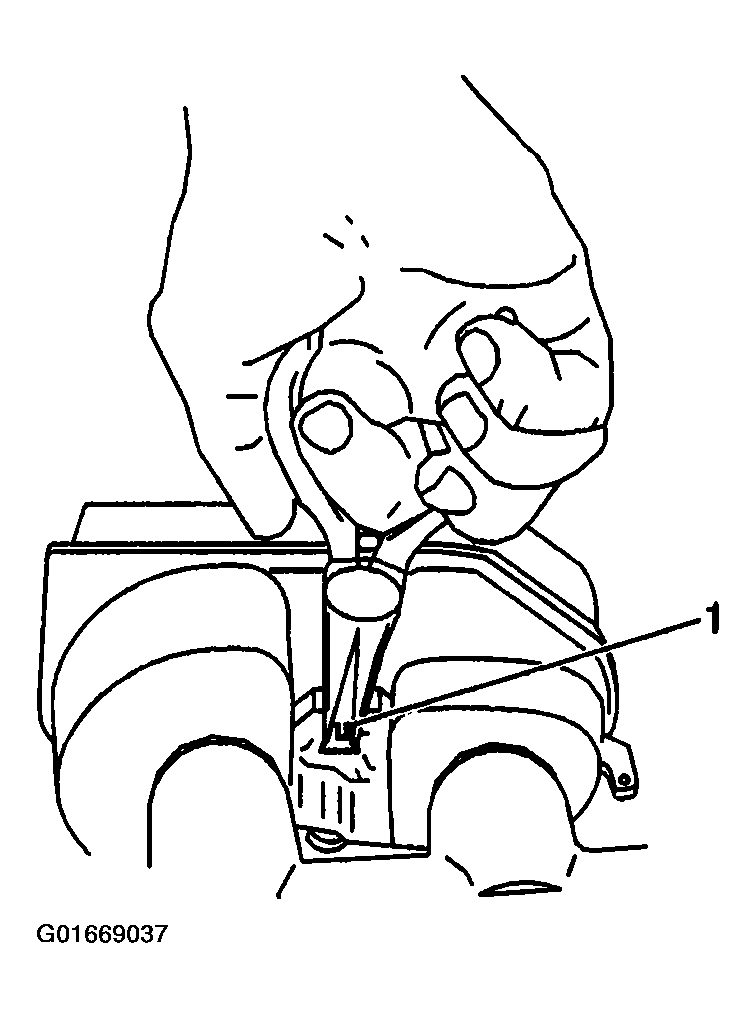

    Fig 1: Locating Fluid Level Sensor
    G01669037Courtesy of GENERAL MOTORS CORP.
