Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pushrod retaining clip (4).
  2. Remove the stoplamp switch (2) and the pushrod (3) from the brake pedal stud (1).

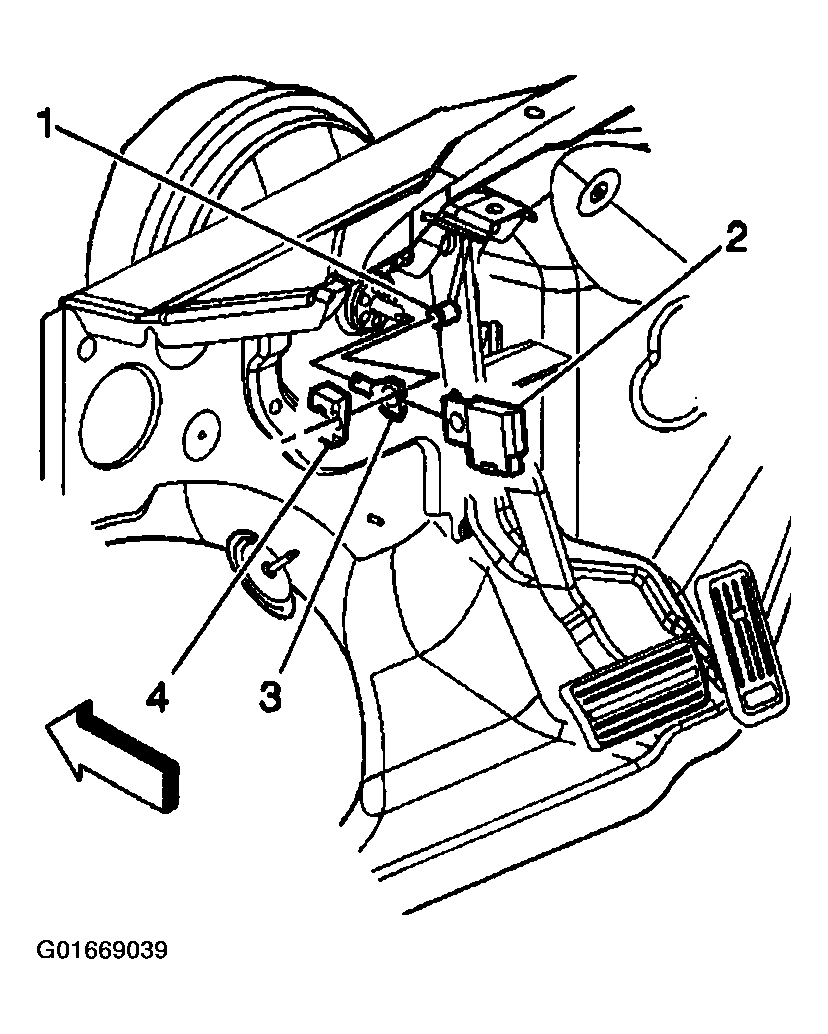

    Fig 1: Locating Stoplamp Switch
    G01669039Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the brake pedal bolt.

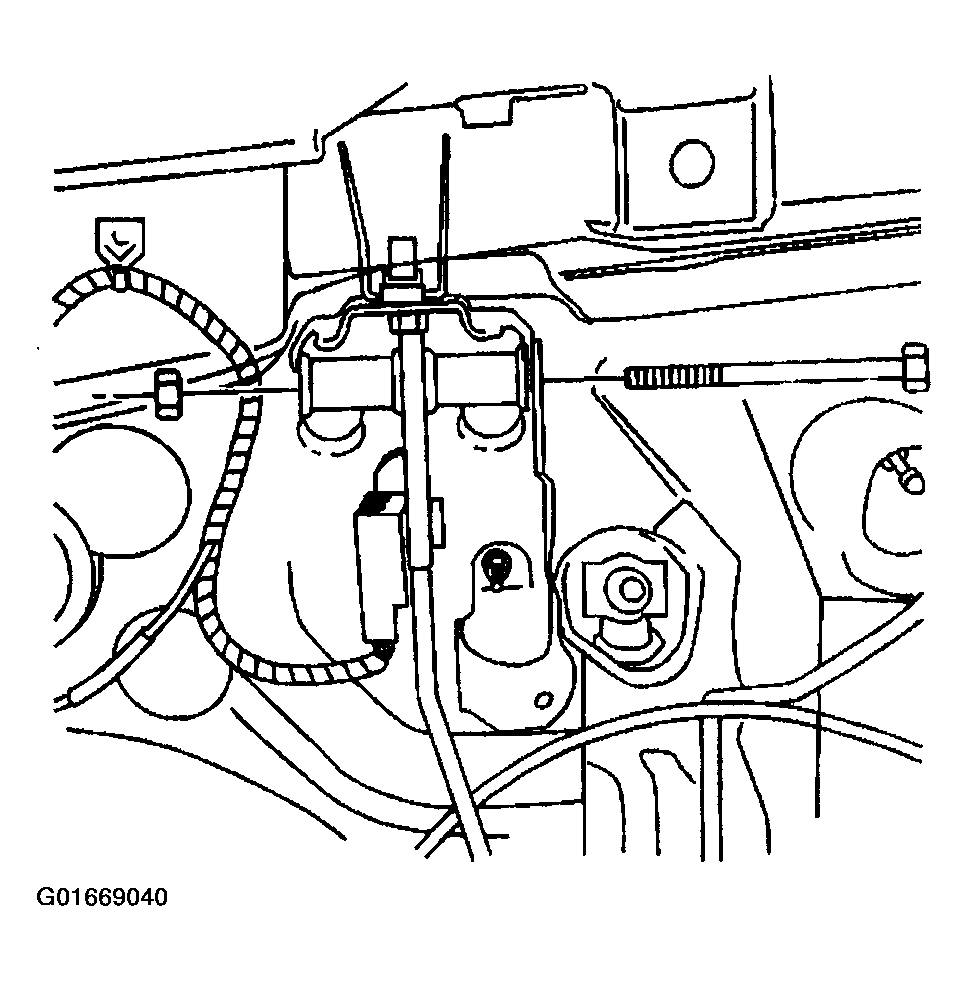

    4. Fig 2: Brake Pedal Bolt
    G01669040Courtesy of GENERAL MOTORS CORP.
  4. Remove the brake pedal bolt.
  5. Remove the brake pedal.
