Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Clean all dirt and foreign material from the brake hose and brake pipe fittings.

    Important:  Install a rubber cap or plug to the exposed brake pipe fitting ends in order to prevent brake fluid loss and contamination.

  4. Use a backup wrench on the hose fitting, disconnect the brake pipe fitting from the brake hose, then cap or plug the brake pipe fitting end.
  5. Remove the brake hose retaining clip from the hose mounting bracket.
  6. Remove the brake hose to caliper bolt from the brake caliper.

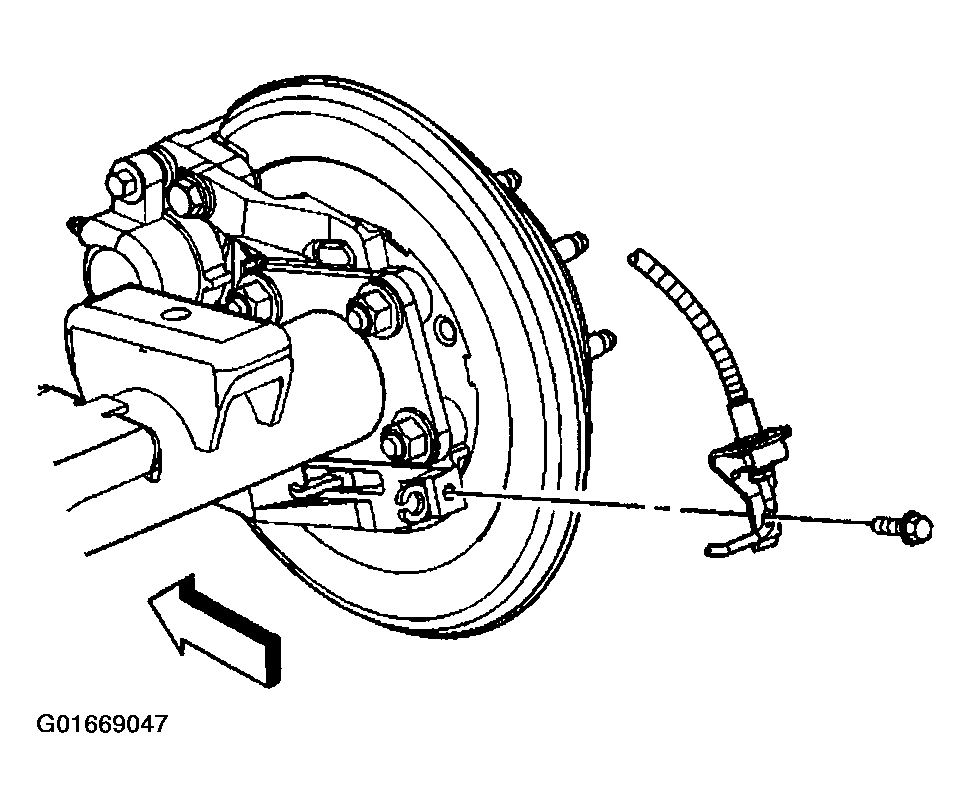

    7. Fig 1: Brake Hose Bracket At Rear Brake Caliper
    G01669047Courtesy of GENERAL MOTORS CORP.
  7. Remove the brake hose from the brake caliper.
  8. Remove and discard the 2 copper brake hose gaskets. These gaskets may be stuck to the brake caliper housing or the brake hose end.

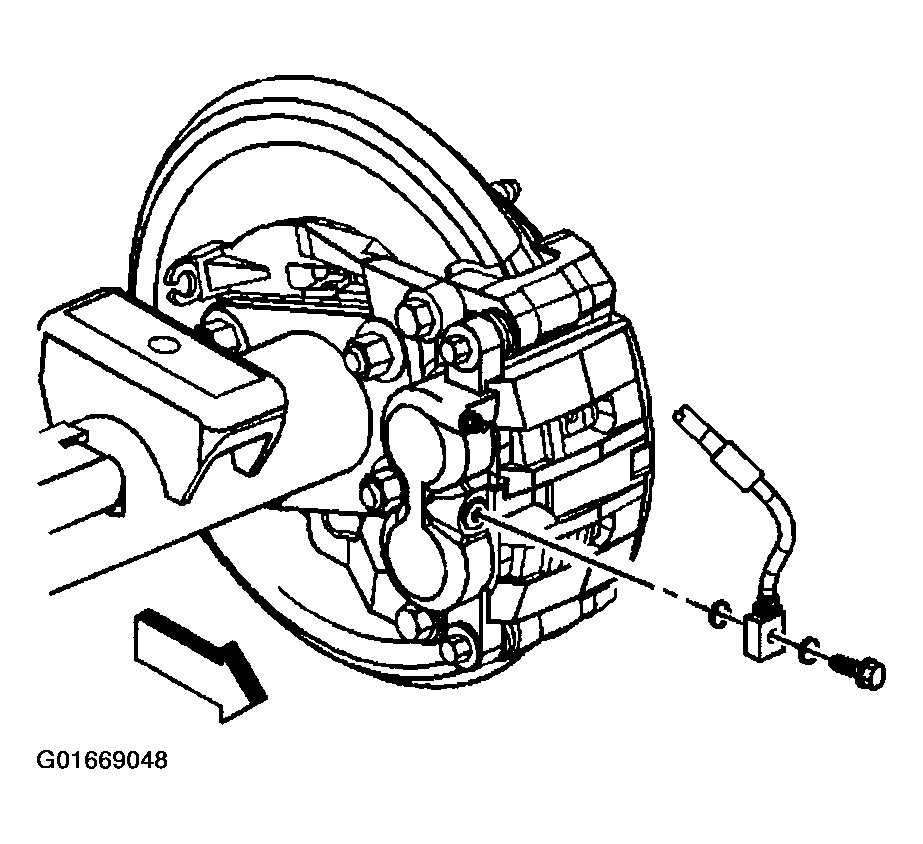

    Fig 2: Brake Hose At Rear Brake Caliper
    G01669048Courtesy of GENERAL MOTORS CORP.
