Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left windshield garnish molding.
  2. Remove the left center pillar assist handle.
  3. Remove the left sunshade.
  4. Remove the retaining screws from the headliner.
  5. Gently pull down the headliner.
  6. Remove the inside air temperature sensor from the headliner.
  7. Disconnect the electrical connector from the inside air temperature sensor.
    Fig 1: Inside Air Temperature Sensor Electrical Connector
    G01666843Courtesy of GENERAL MOTORS CORP.
  8. Remove the inside air temperature sensor from the headliner.

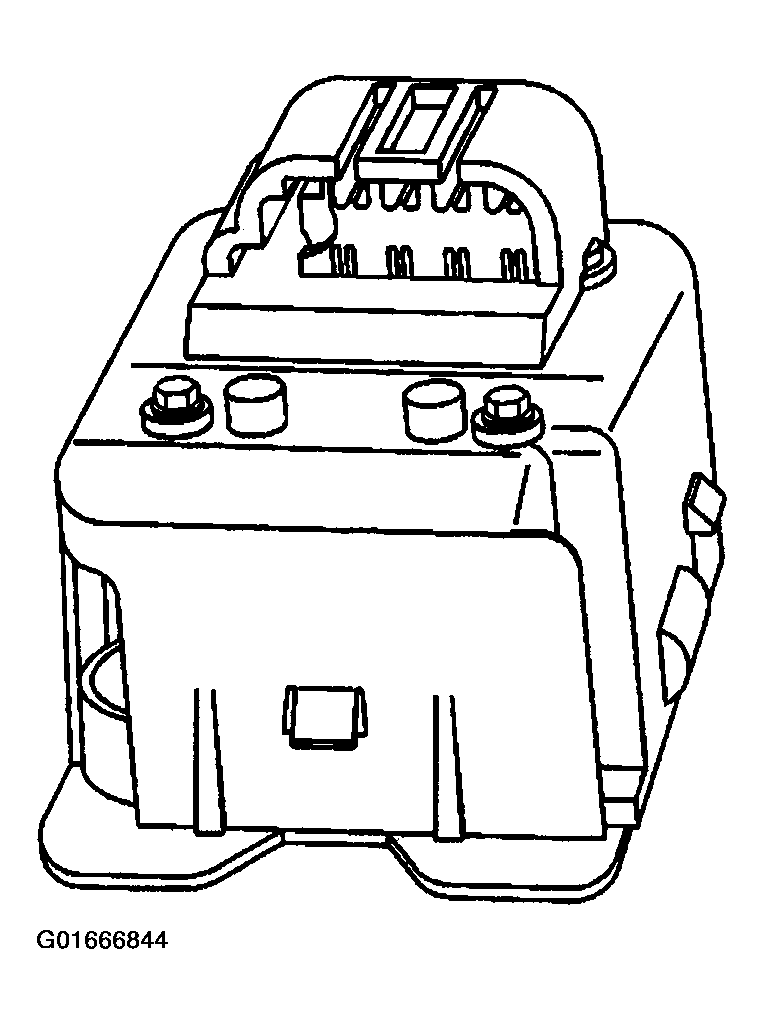

    Fig 2: Inside Air Temperature Sensor
    G01666844Courtesy of GENERAL MOTORS CORP.
