Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Park/Turn Signal.
  2. Disconnect the electrical connector from the ambient air temperature sensor (3).
  3. Remove the ambient air temperature sensor (3).

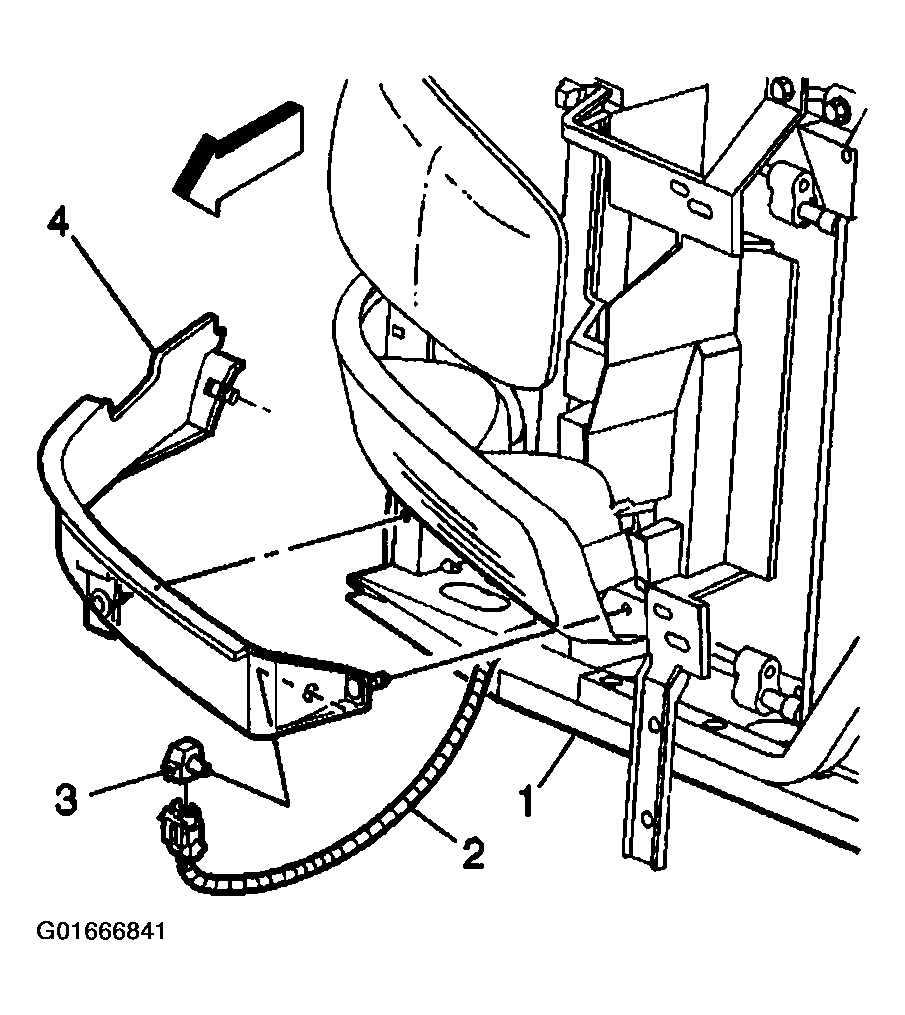

    Fig 1: Ambient Air Temperature Sensor
    G01666841Courtesy of GENERAL MOTORS CORP.
