Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio.
  2. Disconnect the electrical connector from the upper duct air temperature sensor.
  3. Remove the upper duct air temperature sensor from the air duct by prying out of the duct.

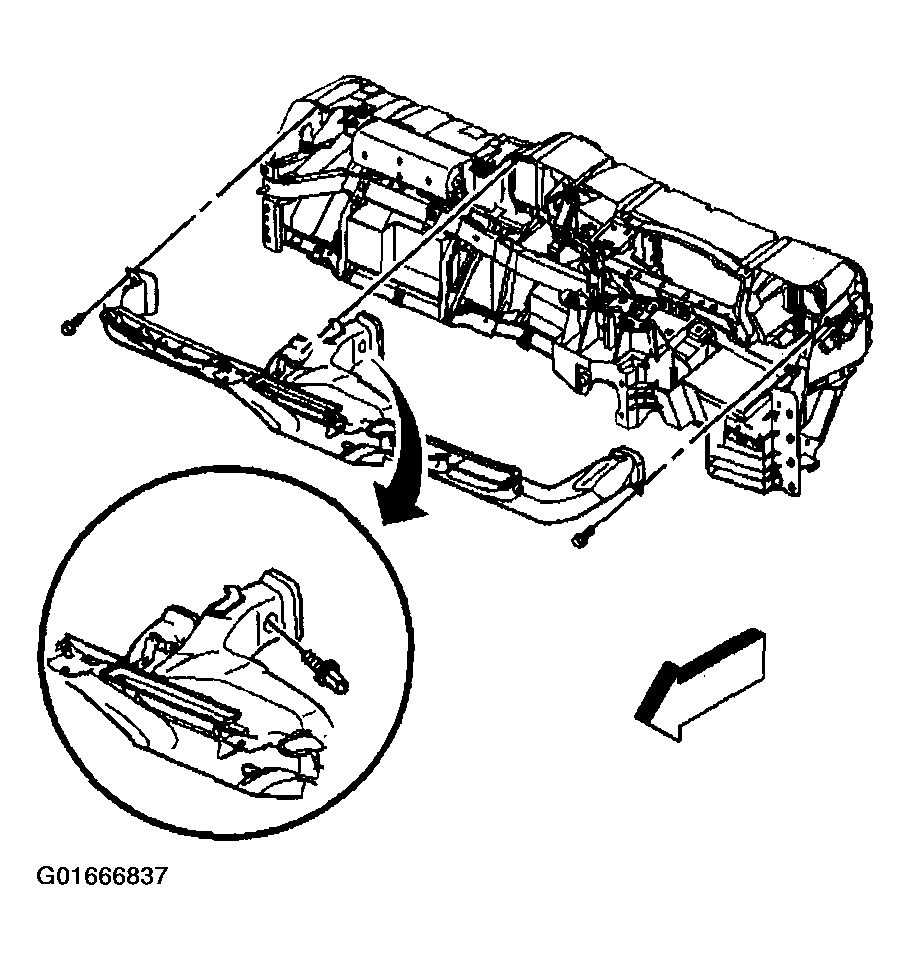

    Fig 1: Upper Duct Air Temperature Sensor
    G01666837Courtesy of GENERAL MOTORS CORP.
