Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower duct air temperature sensor (3) and wiring harness assembly from the floor air outlet (2).
  2. Disconnect the electrical connector from the lower duct air temperature sensor (3).

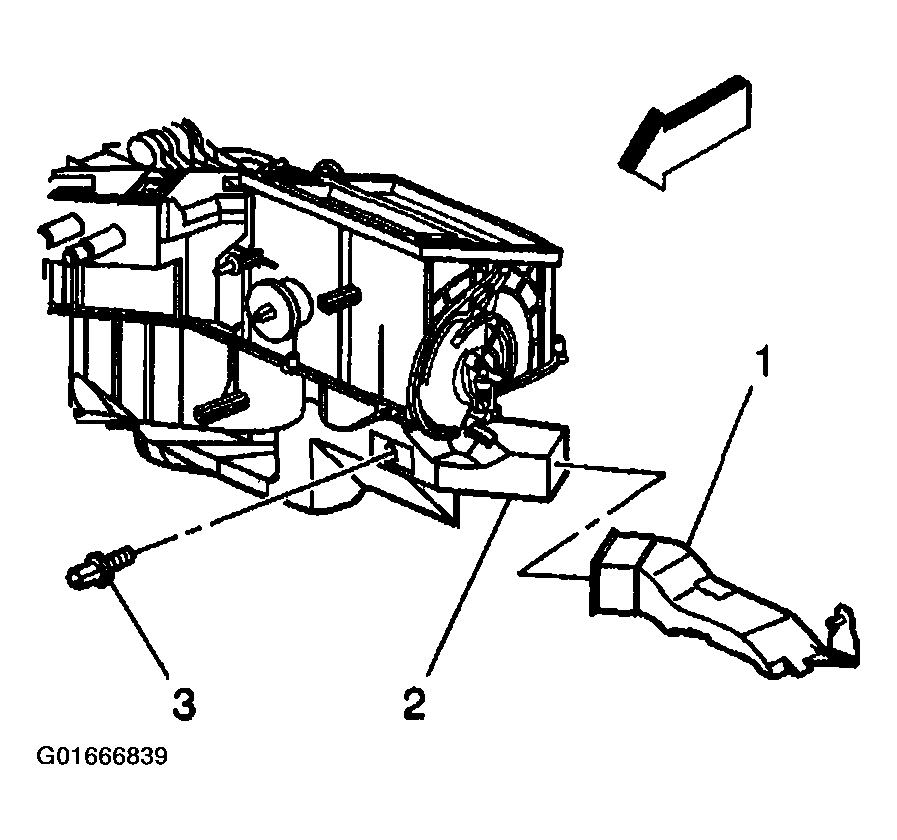

    Fig 1: Air Temperature Sensor
    G01666839Courtesy of GENERAL MOTORS CORP.
