Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP insulator.
  2. Disconnect the electrical connector (8) from the air temperature actuator (9).

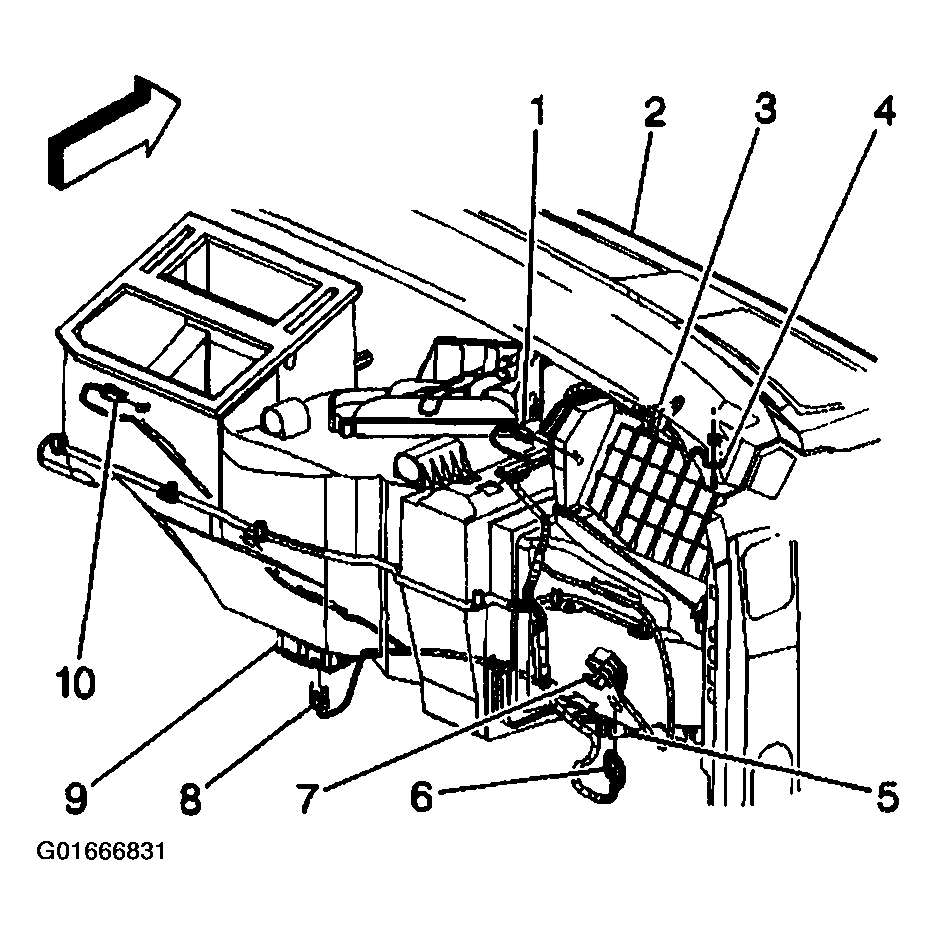

    Fig 1: Air Temperature Actuator Electrical Connector
    G01666831Courtesy of GENERAL MOTORS CORP.
  3. Remove the air temperature actuator retaining screws.

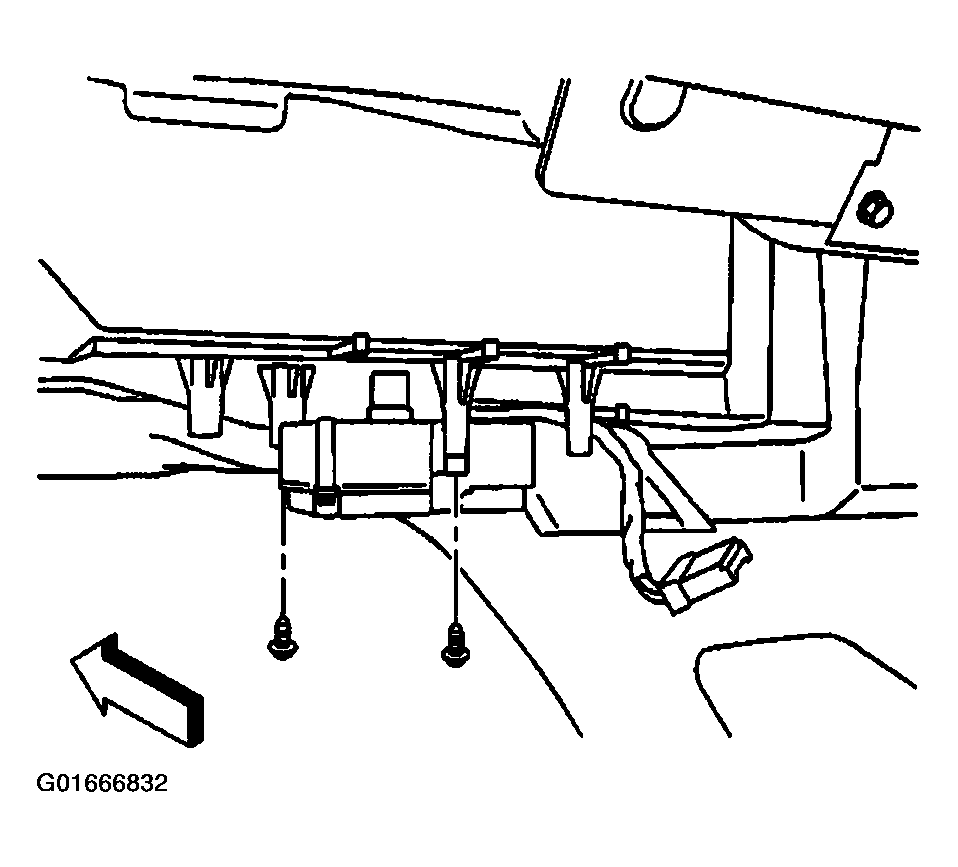

    Fig 2: Air Temperature Actuator Retaining Screws
    G01666832Courtesy of GENERAL MOTORS CORP.
  4. Remove the air temperature actuator.

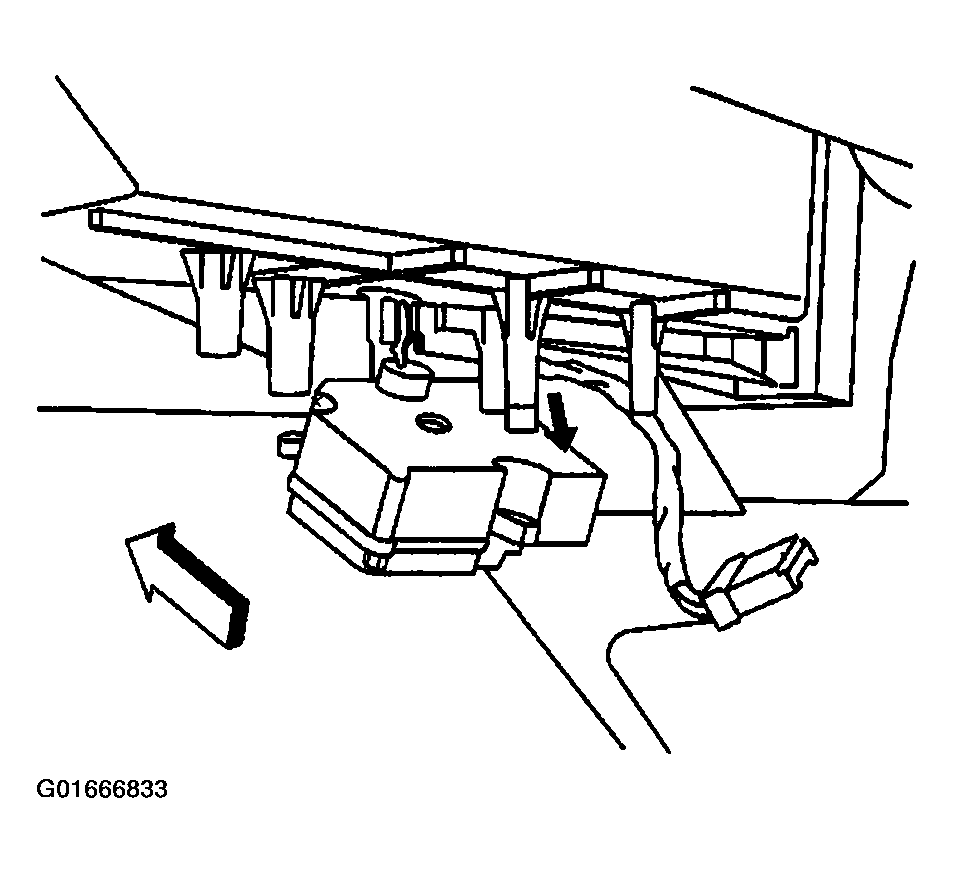

    Fig 3: Air Temperature Actuator
    G01666833Courtesy of GENERAL MOTORS CORP.
