Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2) - The DTCs listed may set, if there is a concern with the actuator, when a calibration of the actuators is performed.
10) - This action ensures that the internal fan of the inside air temperature sensor assembly is providing air flow across the internal sensor.

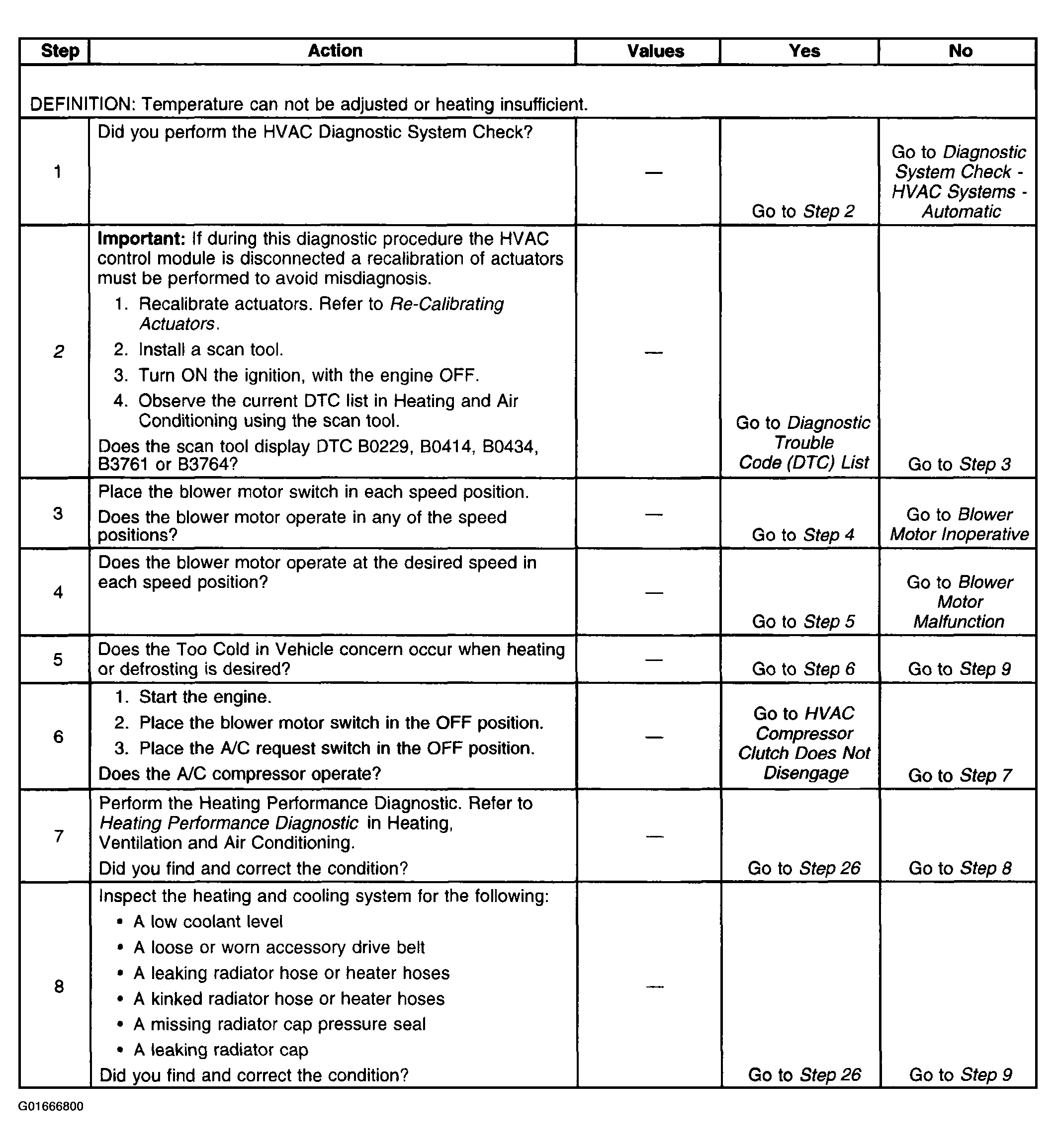

Fig 1: Too Cold In Vehicle Diagnosis (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

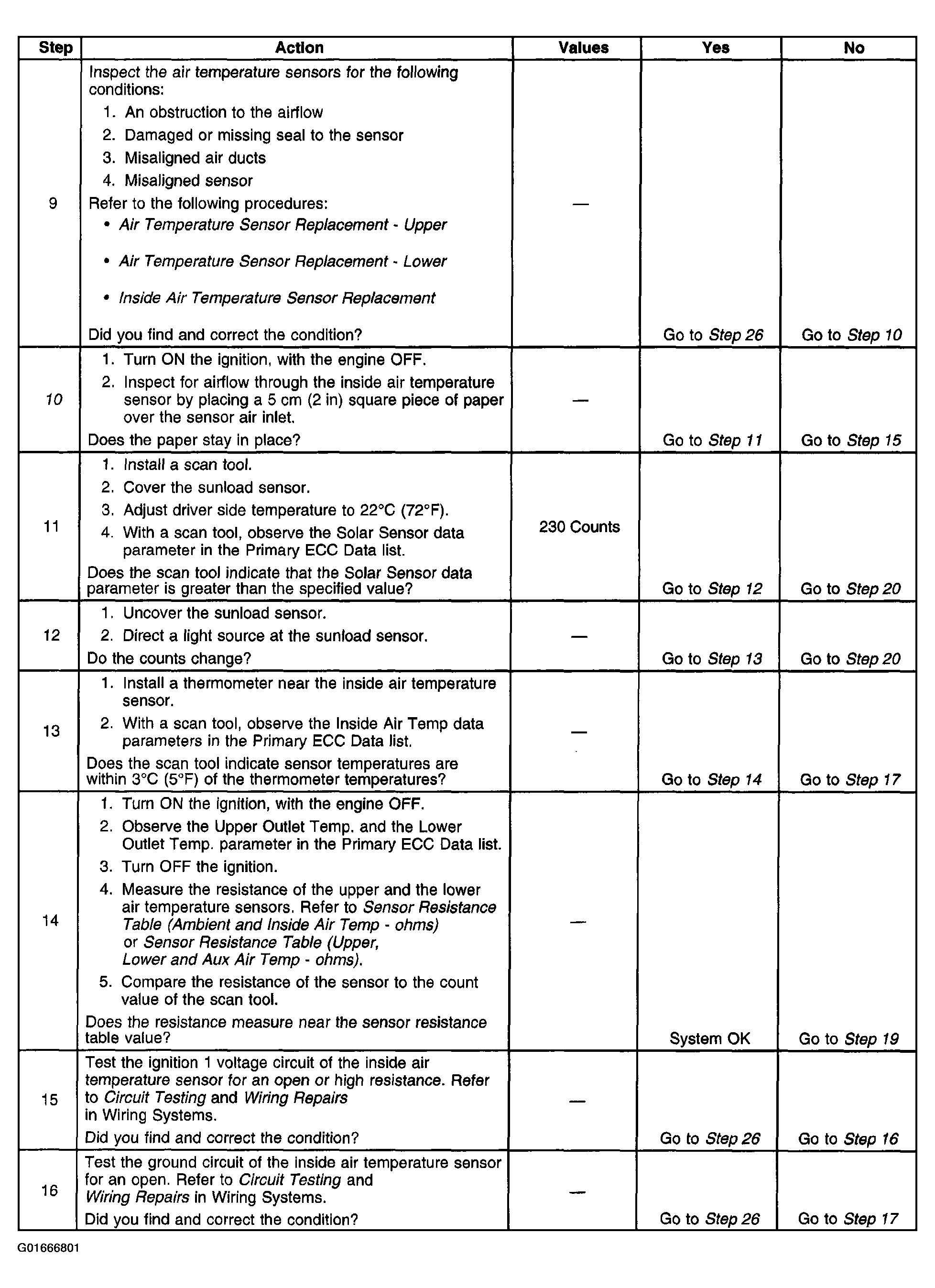

Fig 2: Too Cold In Vehicle Diagnosis (Steps 9-16)

Courtesy of GENERAL MOTORS CORP.

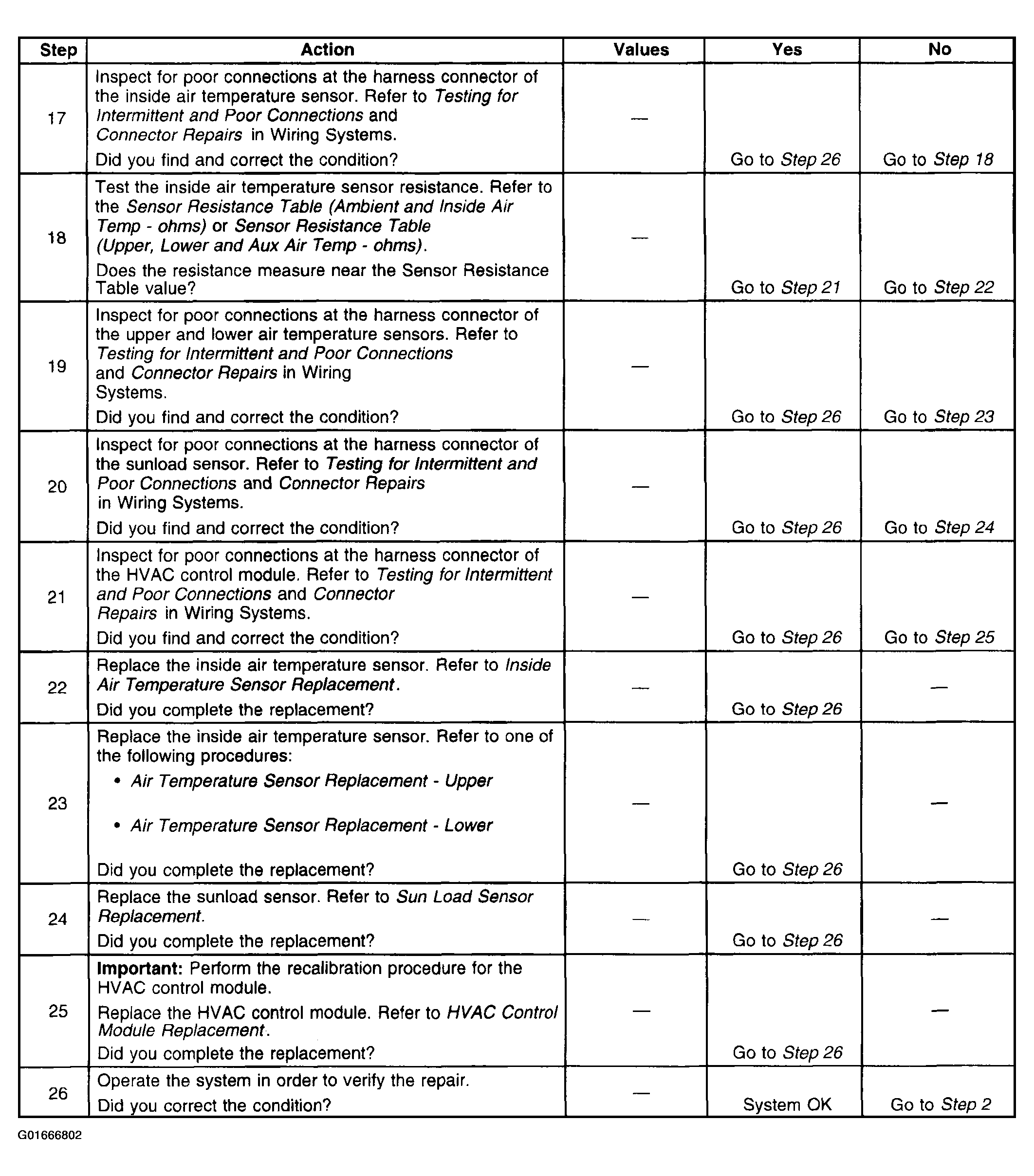

Fig 3: Too Cold In Vehicle Diagnosis (Steps 17-26)

Courtesy of GENERAL MOTORS CORP.
