Special Tools & Equipment

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

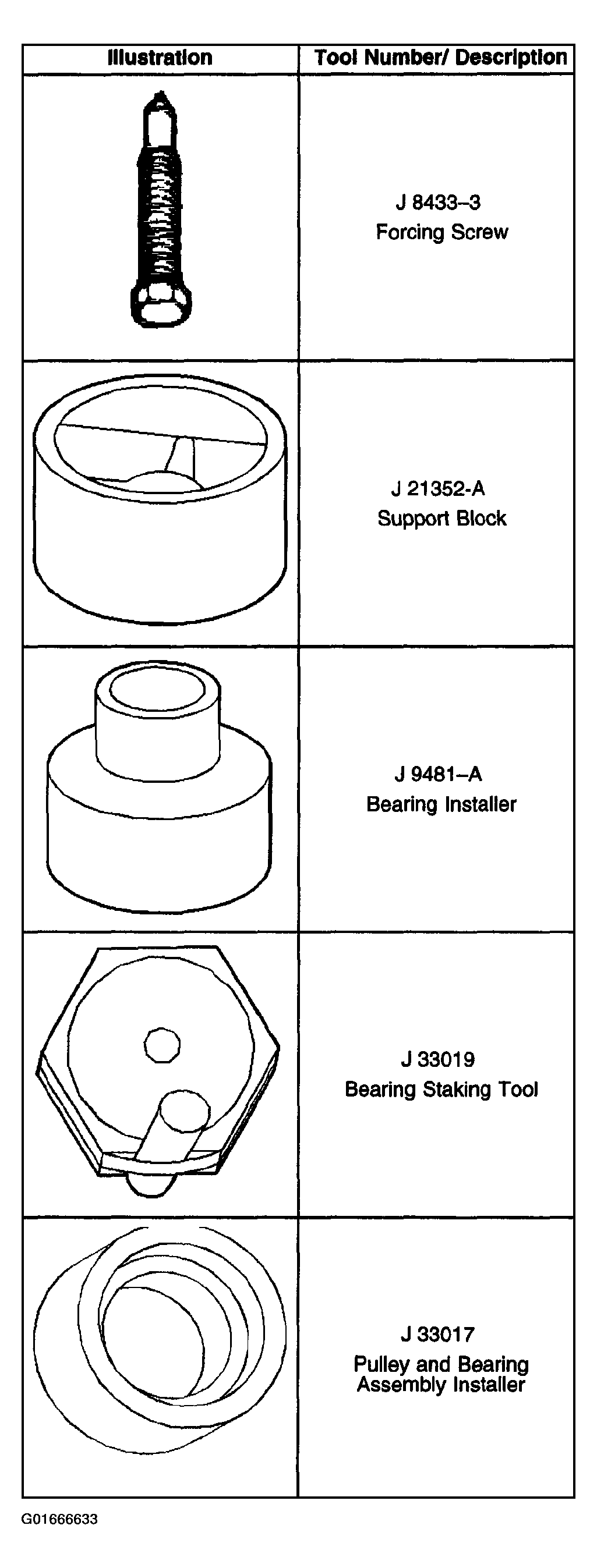

Fig 1: Special Tools & Equipment (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

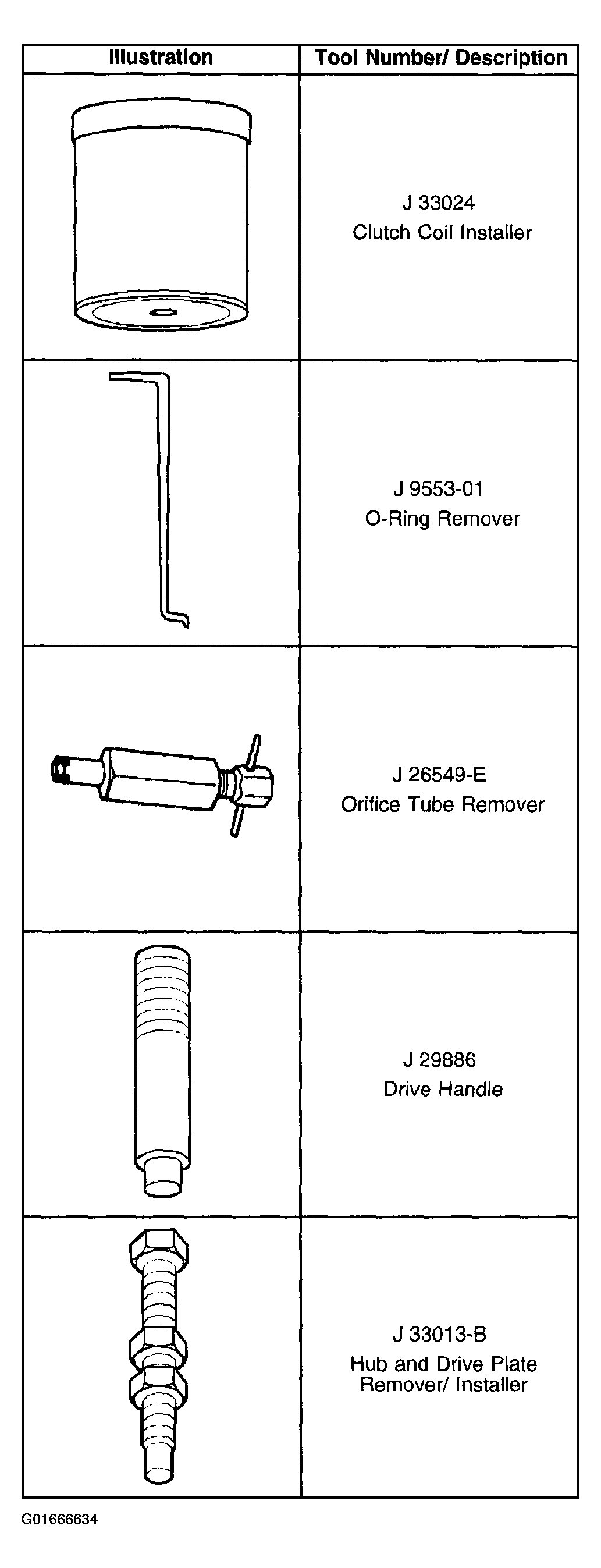

Fig 2: Special Tools & Equipment (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

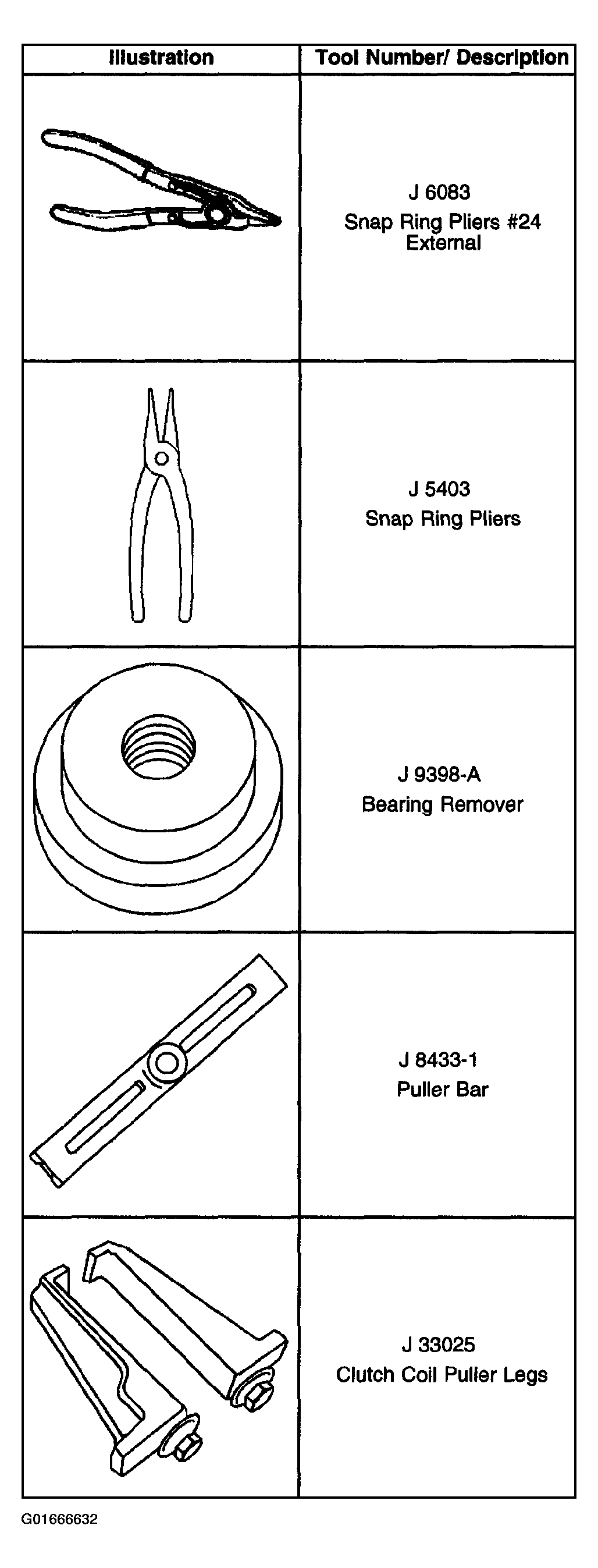

Fig 3: Special Tools & Equipment (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

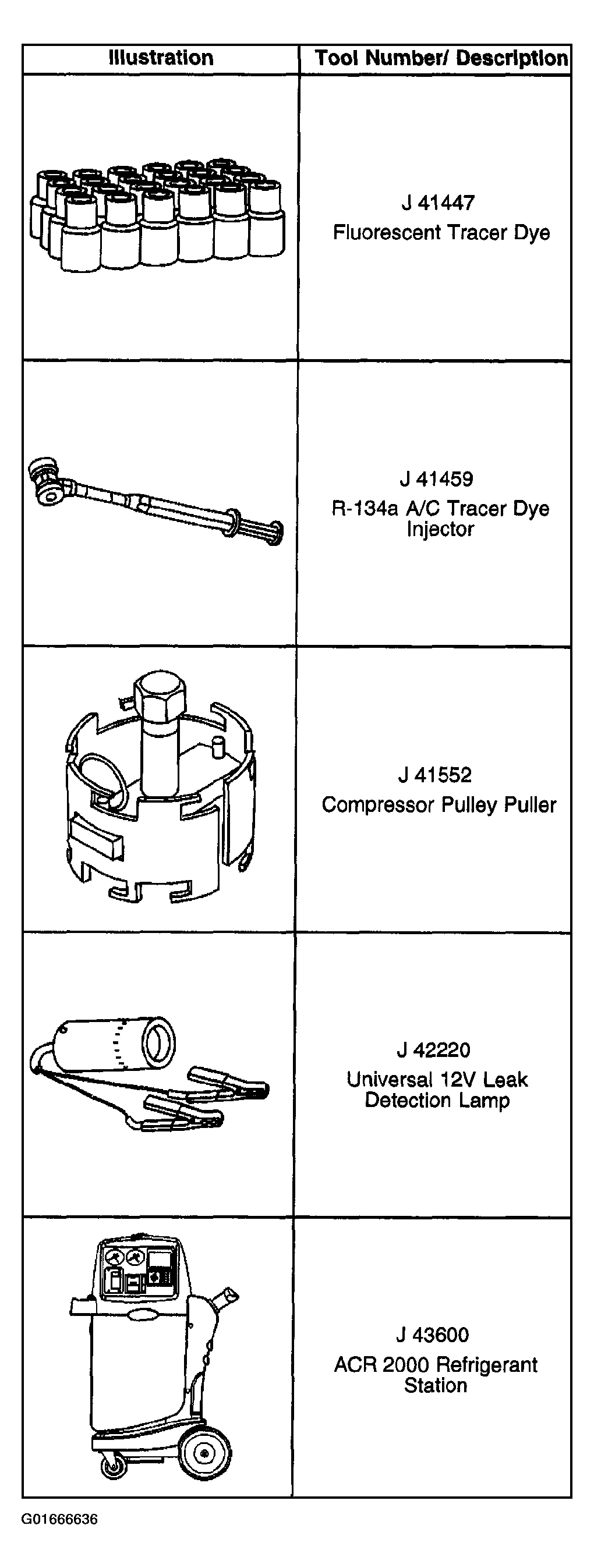

Fig 4: Special Tools & Equipment (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

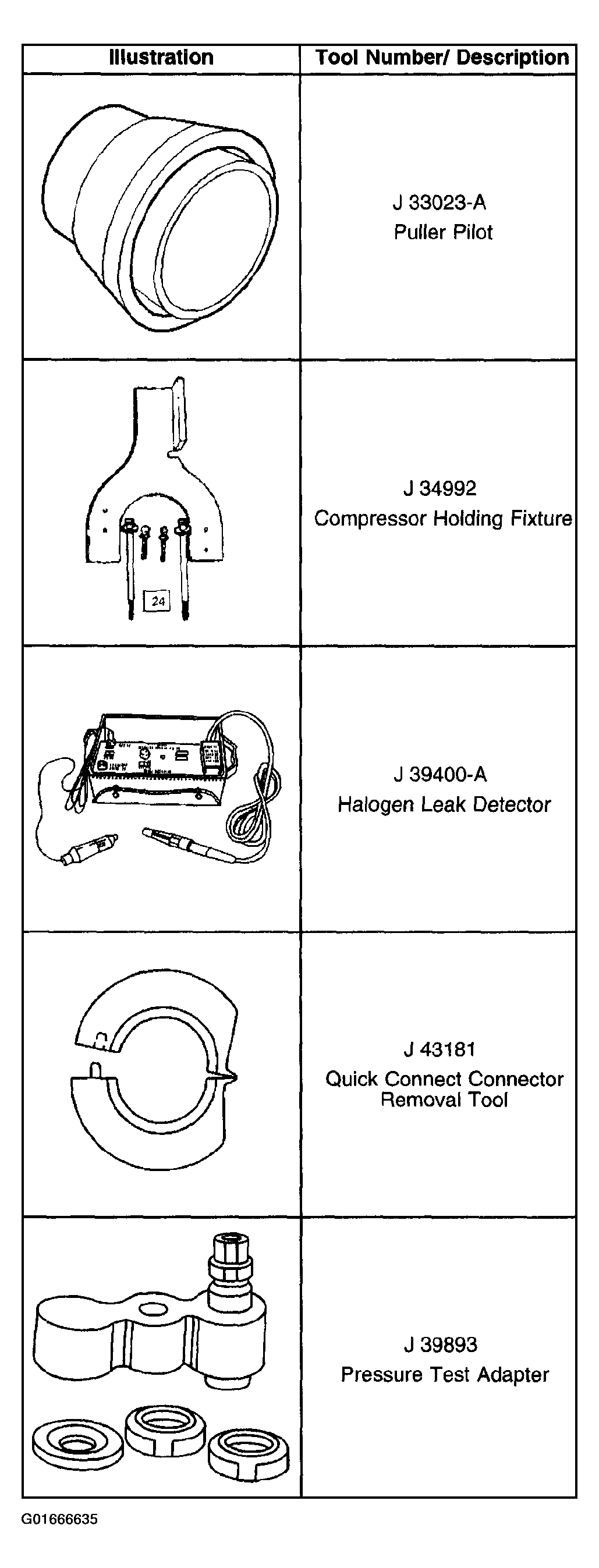

Fig 5: Special Tools & Equipment (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

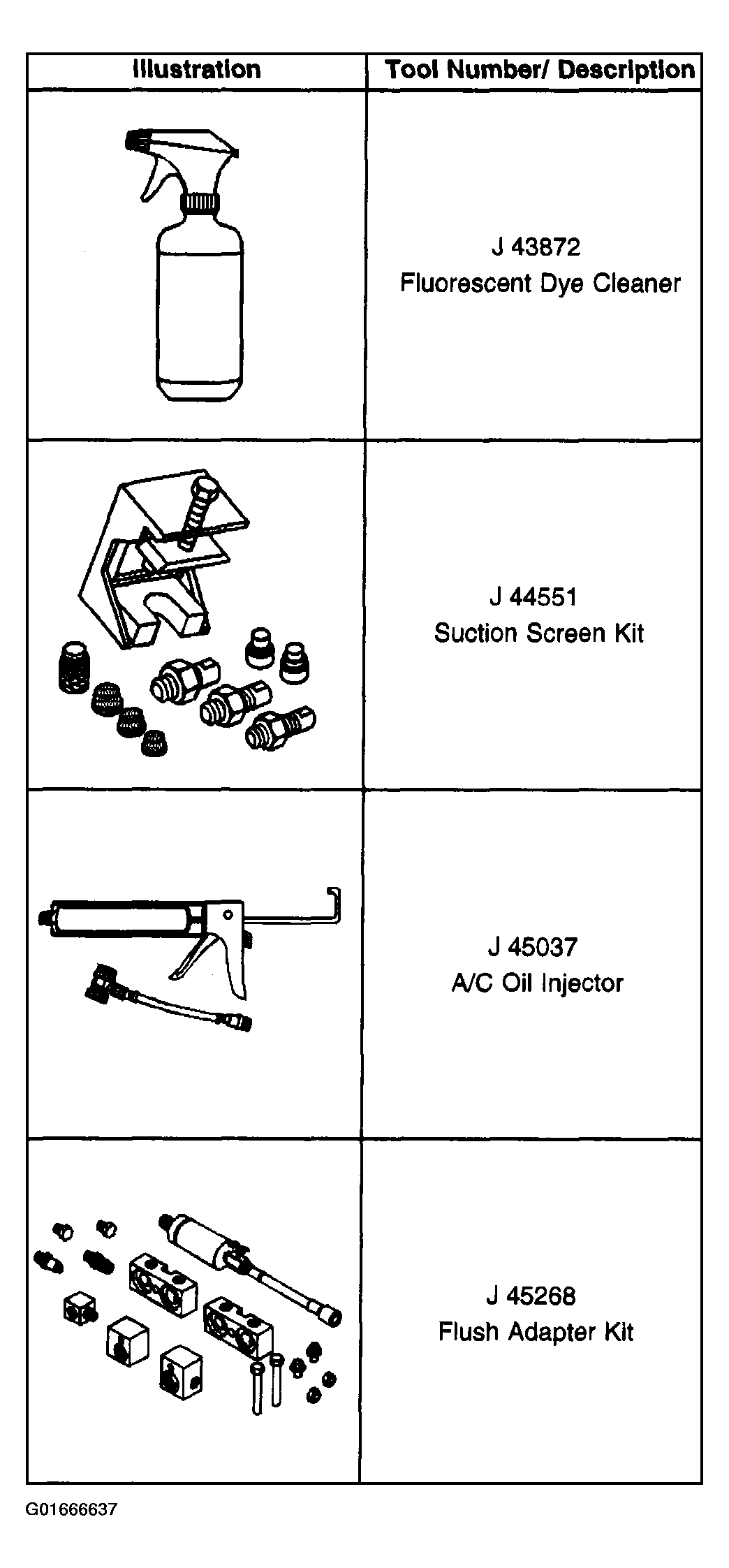

Fig 6: Special Tools & Equipment (6 Of 6)

Courtesy of GENERAL MOTORS CORP.
