Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to Heater/Vent Module Replacement .
  2. Disconnect the recirculation actuator electrical connection (1).

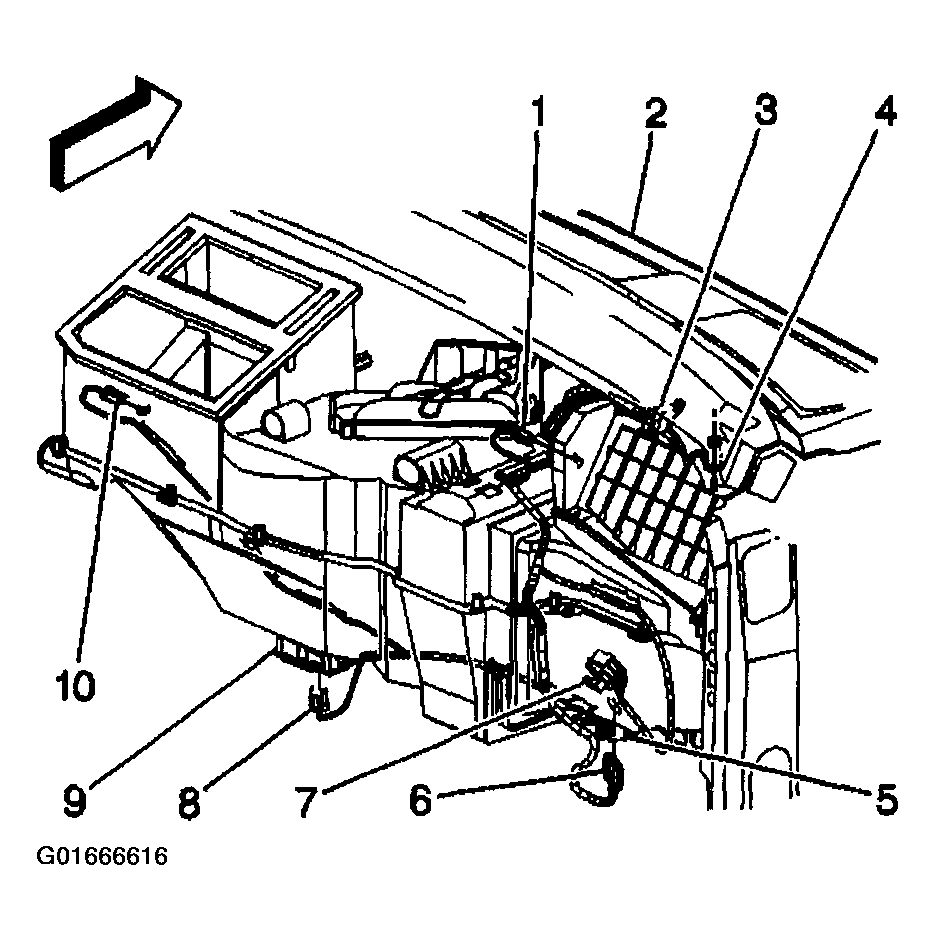

    Fig 1: Recirculation Actuator Electrical Connection
    G01666616Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator mounting screws.

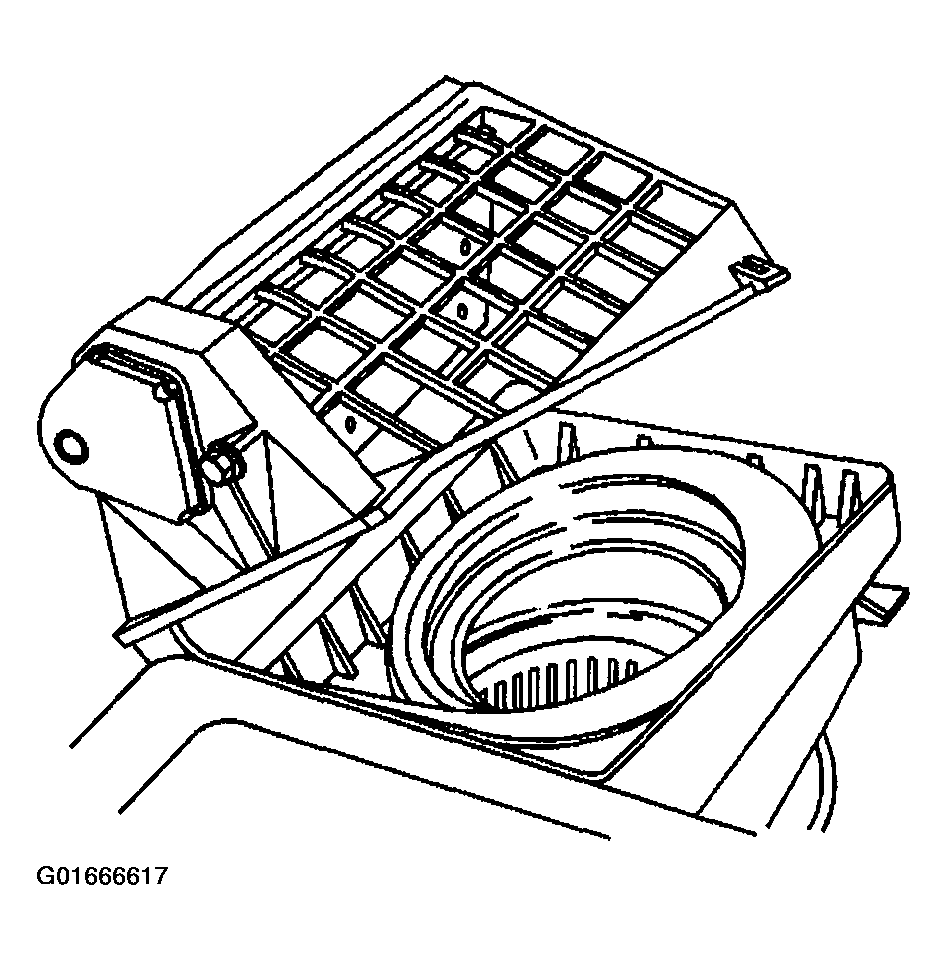

    Fig 2: Recirculation Actuator
    G01666617Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator.
  5. Remove the recirculation door.

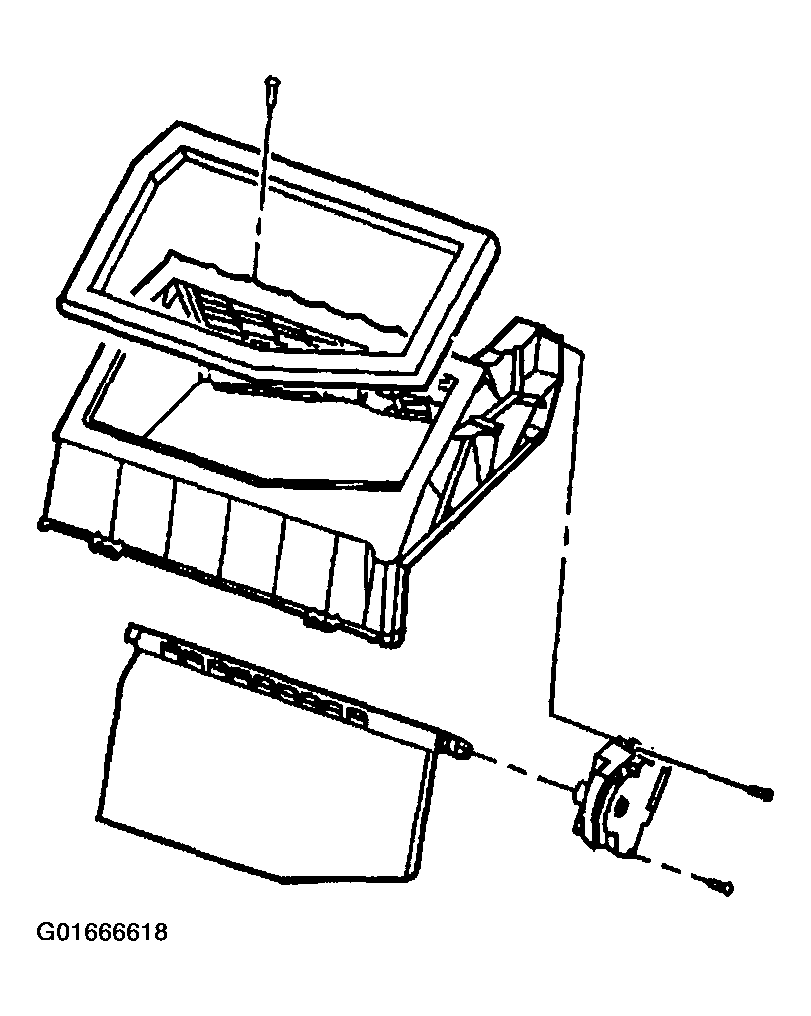

    Fig 3: Recirculation Door
    G01666618Courtesy of GENERAL MOTORS CORP.
