Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble the A/C refrigerant components. Refer to the appropriate repair procedure
- For compression style fittings use a back-up wrench on the fitting (2) and loosen the fitting nut (1).
- For banjo style fittings remove the bolt retaining the banjo type fitting.

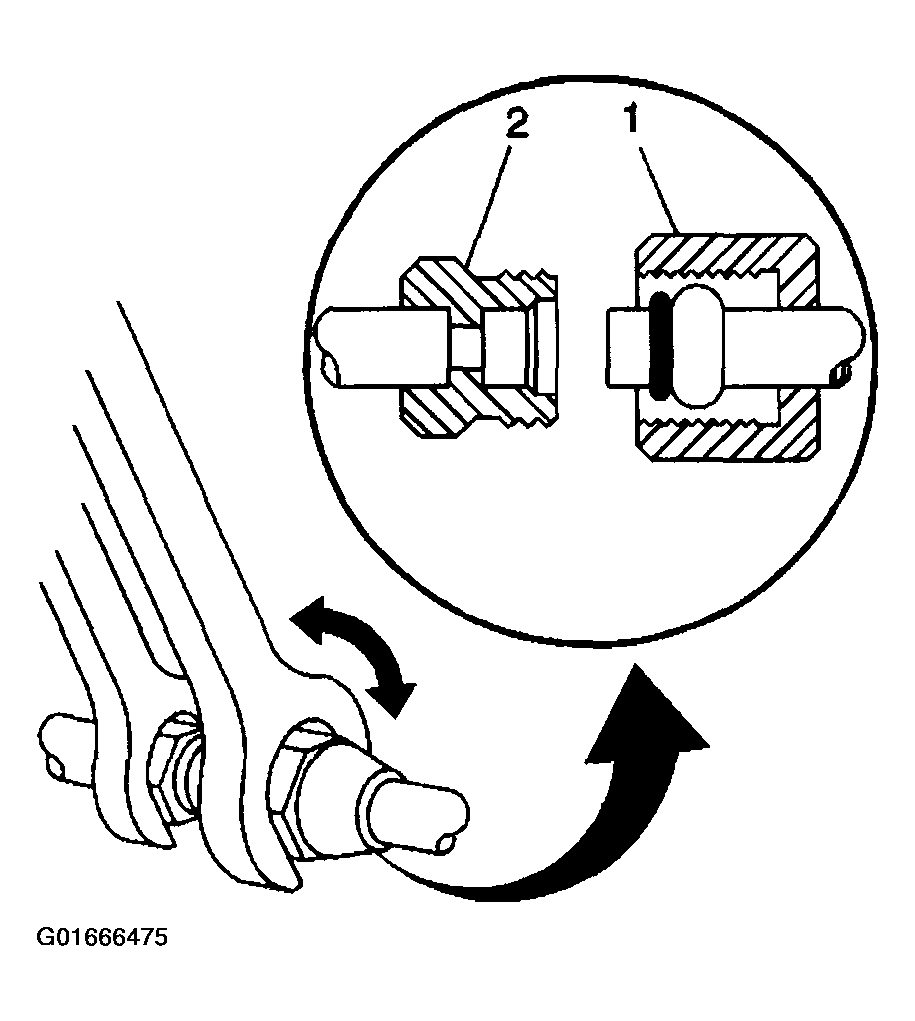

Fig 1: Compression Style Fitting

Courtesy of GENERAL MOTORS CORP.

Remove the O-ring seal from the A/C refrigerant component.
Inspect the O-ring seal for signs of damage to help determine the root cause of the failure.
Inspect the A/C refrigerant components for damage or burrs. Repair if necessary.
Important: Cap or tape the open A/C refrigerant components immediately to prevent system contamination.
Cap or tape the A/C refrigerant components.
Discard the O-ring seal.
