Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to Heater/Vent Module Replacement .
  2. Remove the heater core cover screws.
  3. Remove the heater core cover.

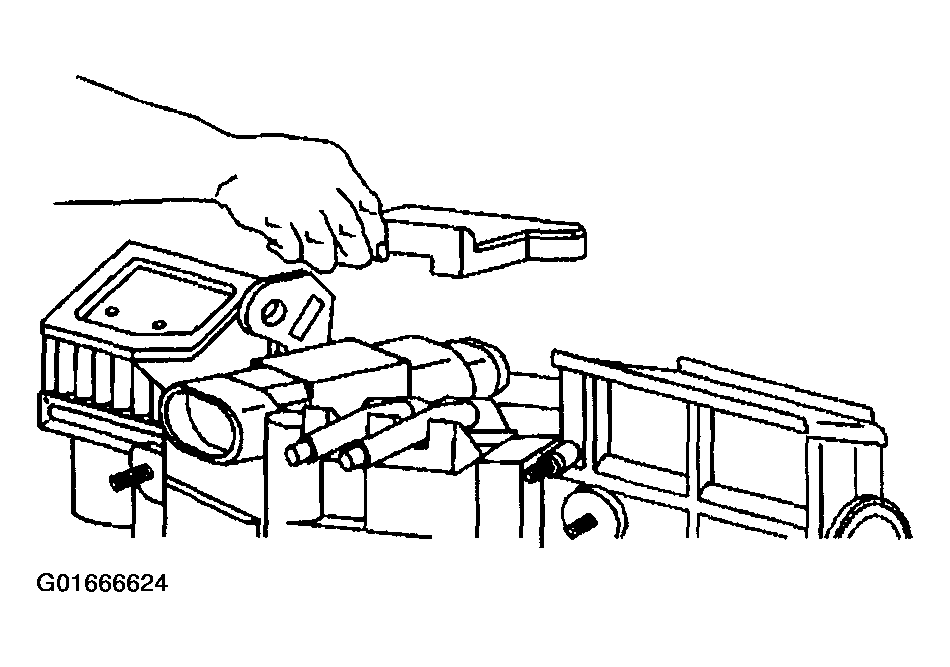

    Fig 1: Heater Core Cover
    G01666624Courtesy of GENERAL MOTORS CORP.
  4. Remove the heater core.

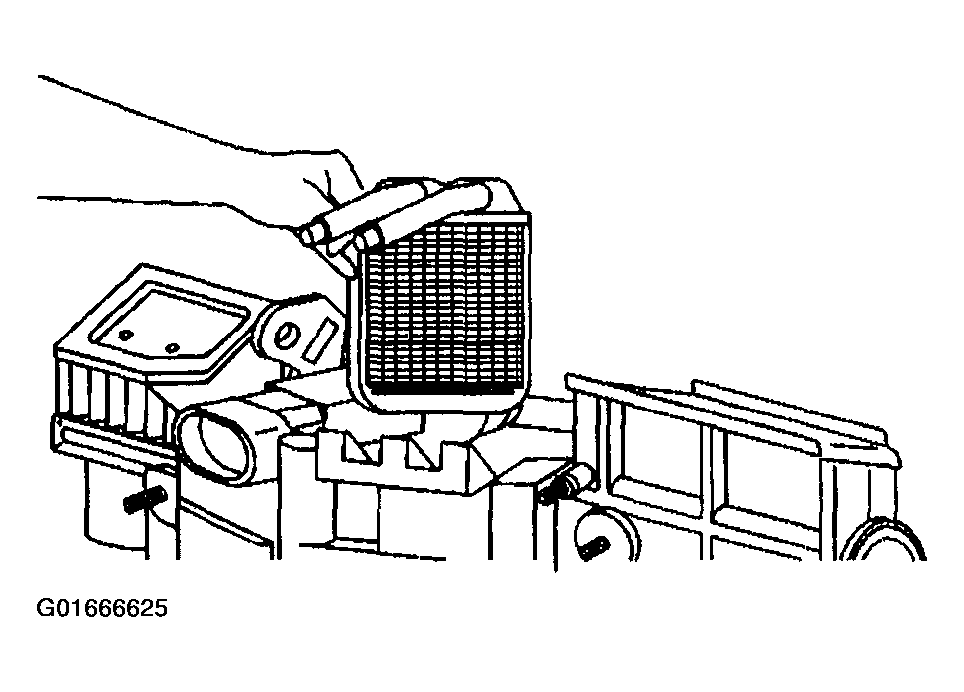

    Fig 2: Heater Core
    G01666625Courtesy of GENERAL MOTORS CORP.
