Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat blade tool in order to remove the deflector from the instrument panel.
  2. Remove the deflector.

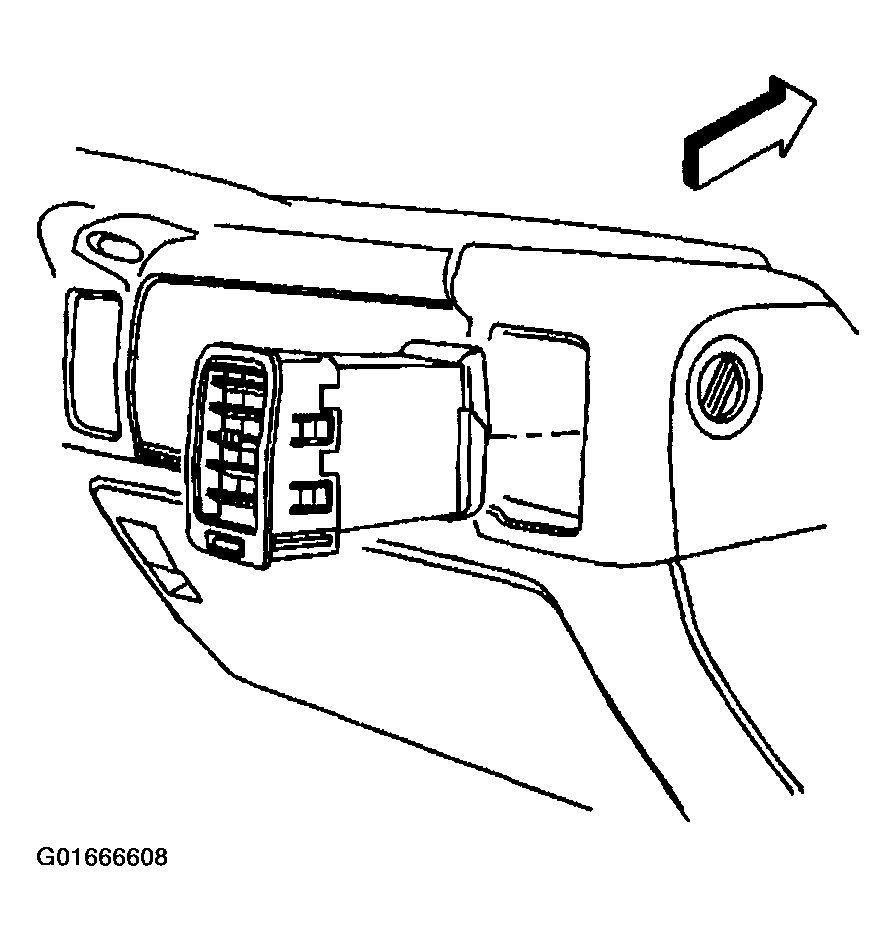

    Fig 1: Right Air Deflector
    G01666608Courtesy of GENERAL MOTORS CORP.
