Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) bezel.
  2. Remove the air deflector housing from the I/P by prying it out.
  3. Disconnect the electrical connectors.
  4. Remove the air deflector screws.
  5. Remove the air deflector from the housing.

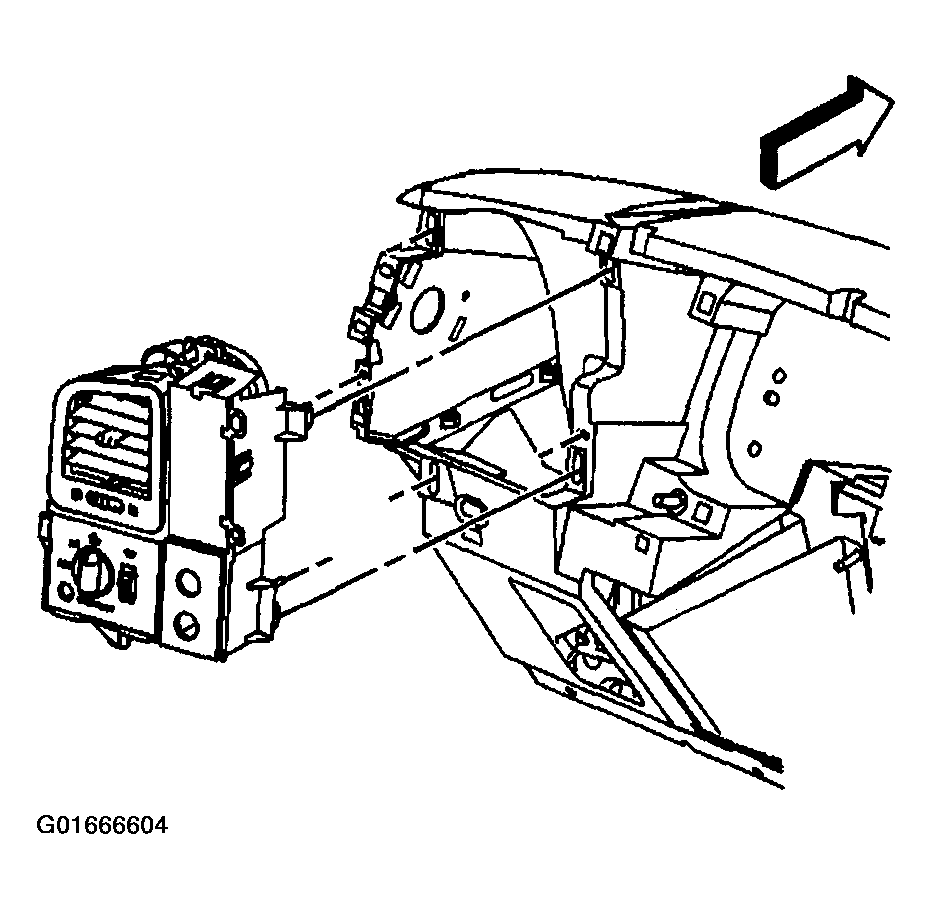

    Fig 1: Left Air Deflector
    G01666604Courtesy of GENERAL MOTORS CORP.
