Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery & Recharging .
  2. Install a ratchet into the belt tensioner adapter opening.
  3. Rotate the belt tensioner counterclockwise in order to relieve the tension on the belt.

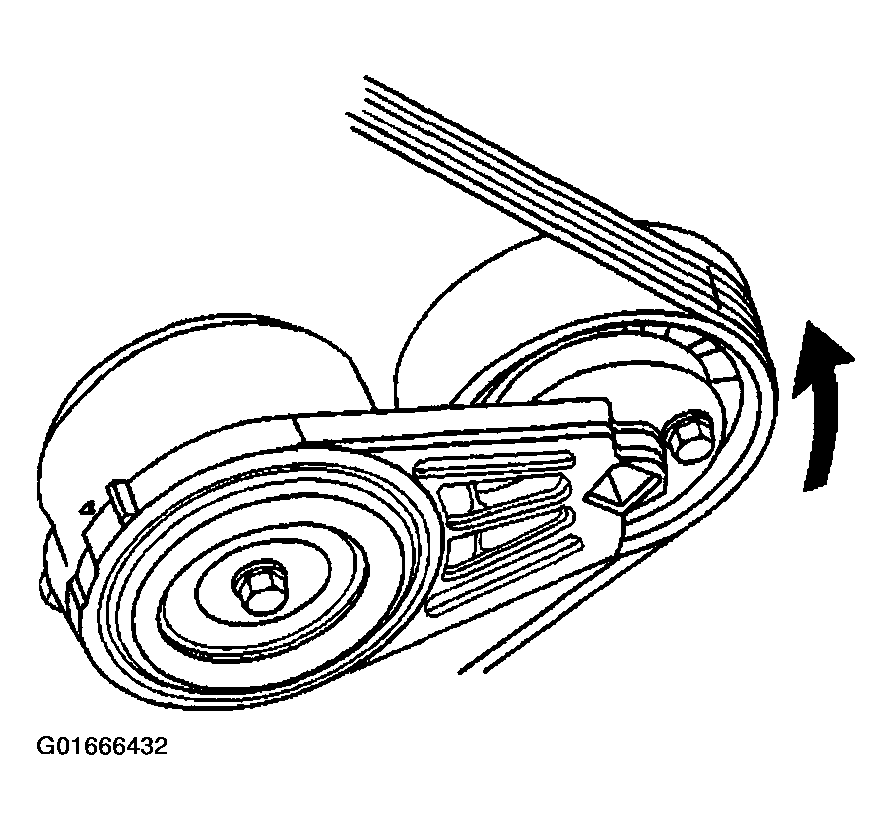

    4. Fig 1: Belt Tensioner
    G01666432Courtesy of GENERAL MOTORS CORP.
  4. Remove the belt from the A/C compressor.
  5. Slowly release the tension on the belt tensioner.
  6. Remove the discharge hose bolt from the A/C compressor.
  7. Remove the discharge hose from the A/C compressor.
  8. Remove the suction hose bolt from the A/C compressor.
  9. Remove the suction hose from the A/C compressor.
  10. Discard the sealing washers. Cap all of the openings.
  11. Disconnect the electrical connections.
  12. Remove the A/C compressor mounting bolts.

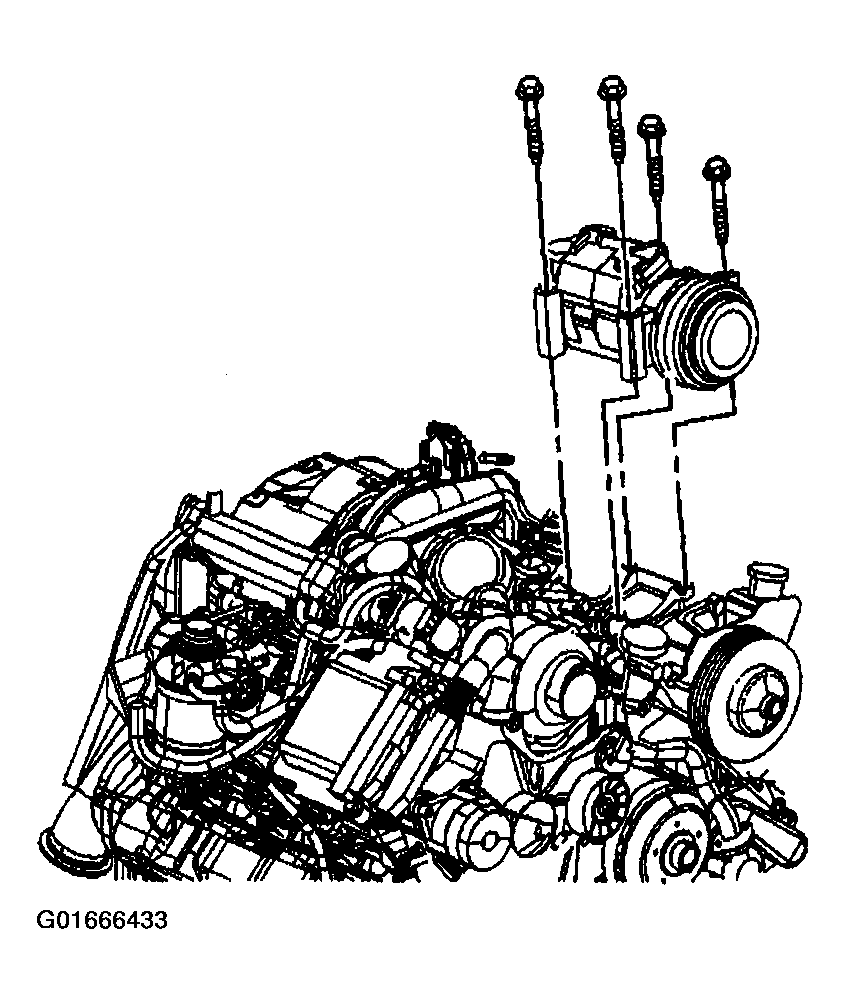

    13. Fig 2: A/C Compressor
    G01666433Courtesy of GENERAL MOTORS CORP.
  13. If replacing the A/C compressor, drain and measure as much of the oil as possible from the removed compressor.
    1. 13.1. Drain the oil from both the suction and discharge ports of the removed A/C compressor into a clean container.
    2. 13.2. Measure and record the amount of oil drained from the removed A/C compressor. This measurement will be used during installation of the replacement A/C compressor.
    3. 13.3. Properly discard the used PAG oil.
