Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. Refer to Compressor Replacement (L35 W/Harrison) , Compressor Replacement (LB7 w/Denso) , Compressor Replacement (LB7 w/Harrison) , Compressor Replacement (LR4, LM7, LQ4, L18 w/Denso)  or Compressor Replacement (L18 w/Harrison)  .
  2. Remove the A/C belt tensioner bolts.
  3. Remove the A/C belt tensioner.
  4. Remove the A/C compressor bracket mounting bolts.
  5. Remove the A/C compressor bracket.

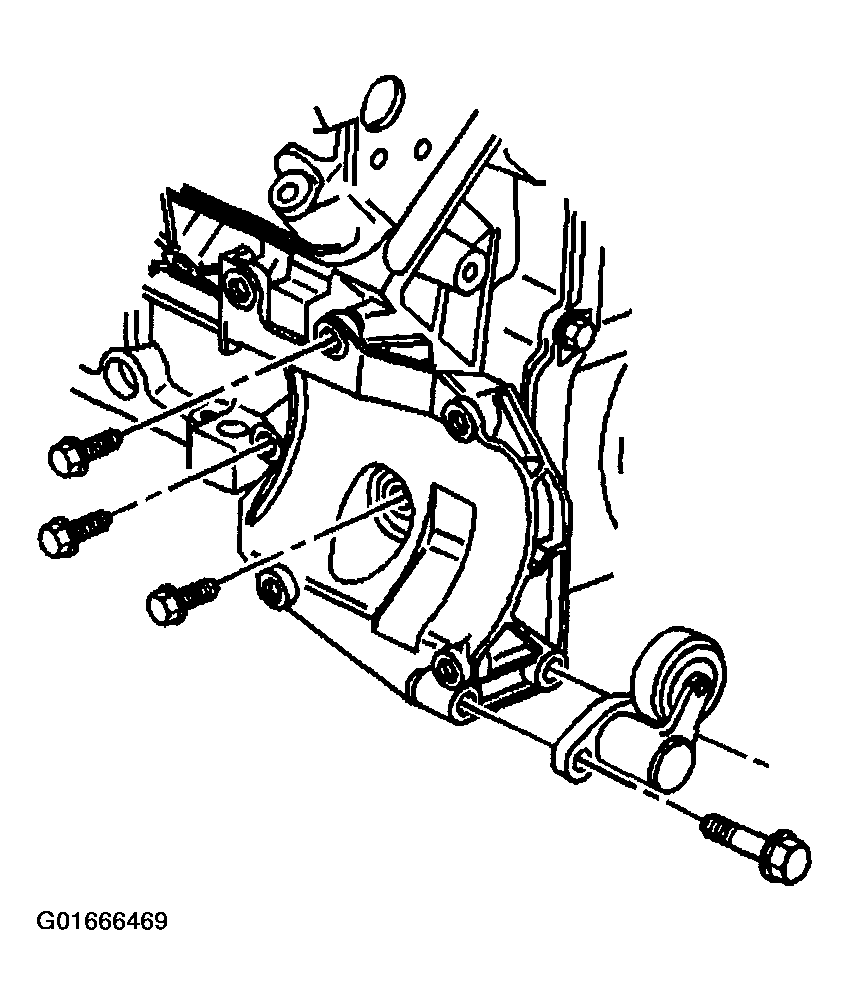

    Fig 1: A/C Compressor Bracket
    G01666469Courtesy of GENERAL MOTORS CORP.
