Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery & Recharging .
  2. Remove the compressor hose assembly mounting bolt from the A/C compressor.
  3. Remove the compressor hose assembly from the A/C compressor.
  4. Remove the compressor hose assembly nut from the accumulator.

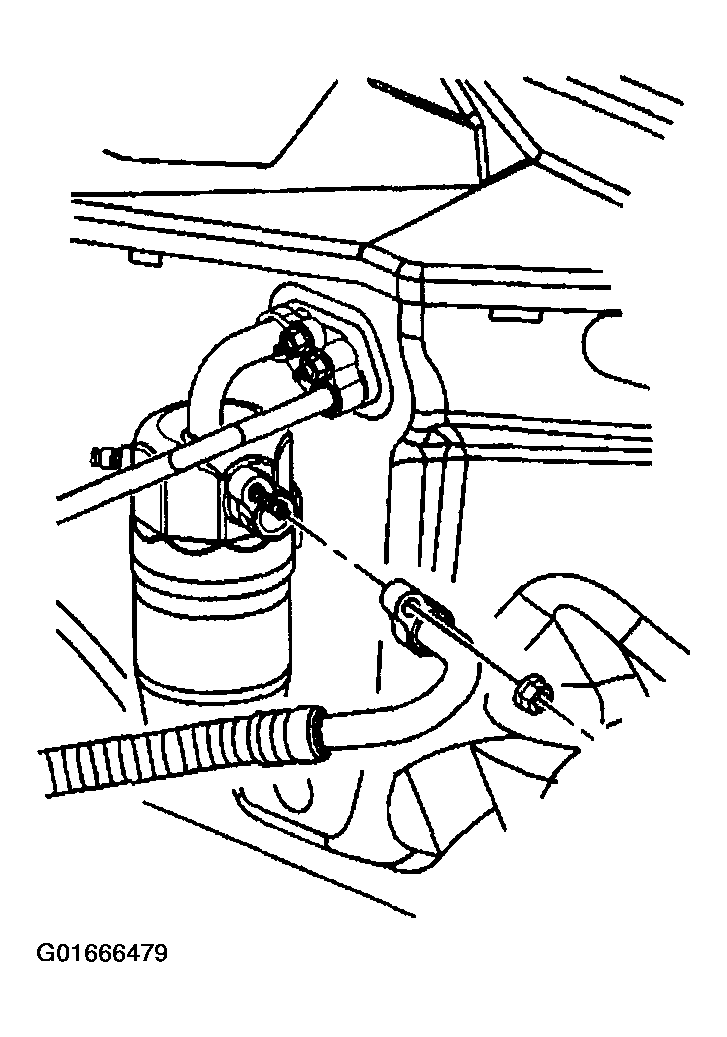

    5. Fig 1: Compressor Hose Assembly Nut From Accumulator
    G01666479Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor hose assembly from the accumulator.
  6. Remove the upper radiator baffle.
  7. Remove the compressor hose assembly nut at the condenser.

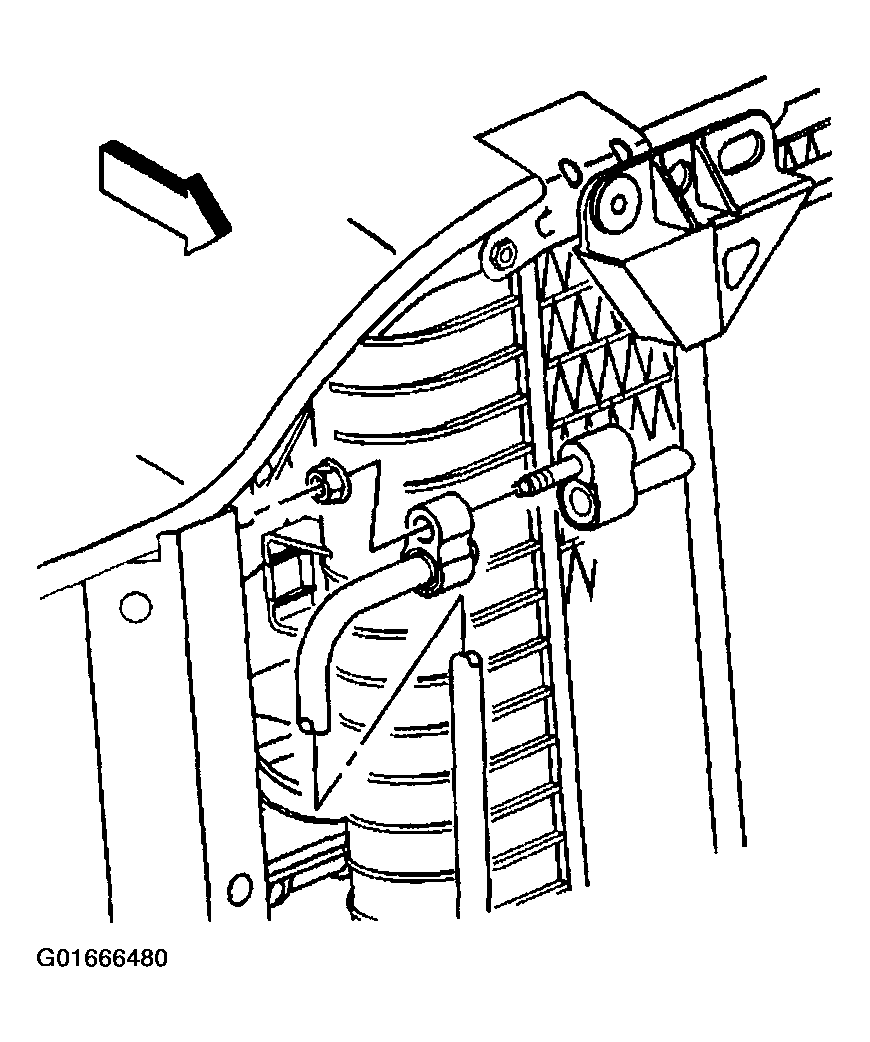

    8. Fig 2: Compressor Hose Assembly Nut At Condenser
    G01666480Courtesy of GENERAL MOTORS CORP.
  8. Remove the compressor hose assembly from the condenser.
  9. Disconnect the electrical connector from the A/C recirculation switch.
  10. Remove the A/C compressor hose assembly.
  11. Discard all of the used sealing washers. Cap the system openings.

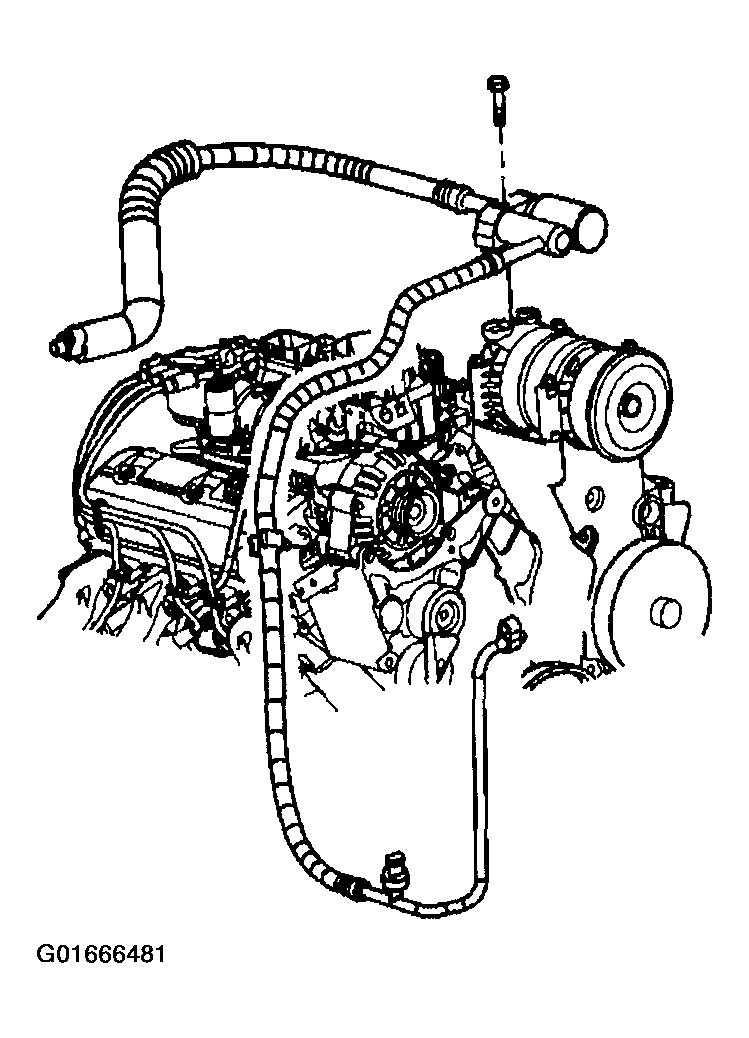

    Fig 3: A/C Compressor Hose Assembly
    G01666481Courtesy of GENERAL MOTORS CORP.
