Compressor Clutch Coil Removal (Denso)

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch plate retaining bolt (1).
  2. Remove the clutch plate assembly.
  3. Remove the clutch hub/bearing snap ring.
  4. Remove the clutch hub/bearing assembly.
  5. Remove the clutch coil connector bracket retaining screw.
  6. Remove the clutch coil snap ring.
  7. Remove the clutch coil assembly.

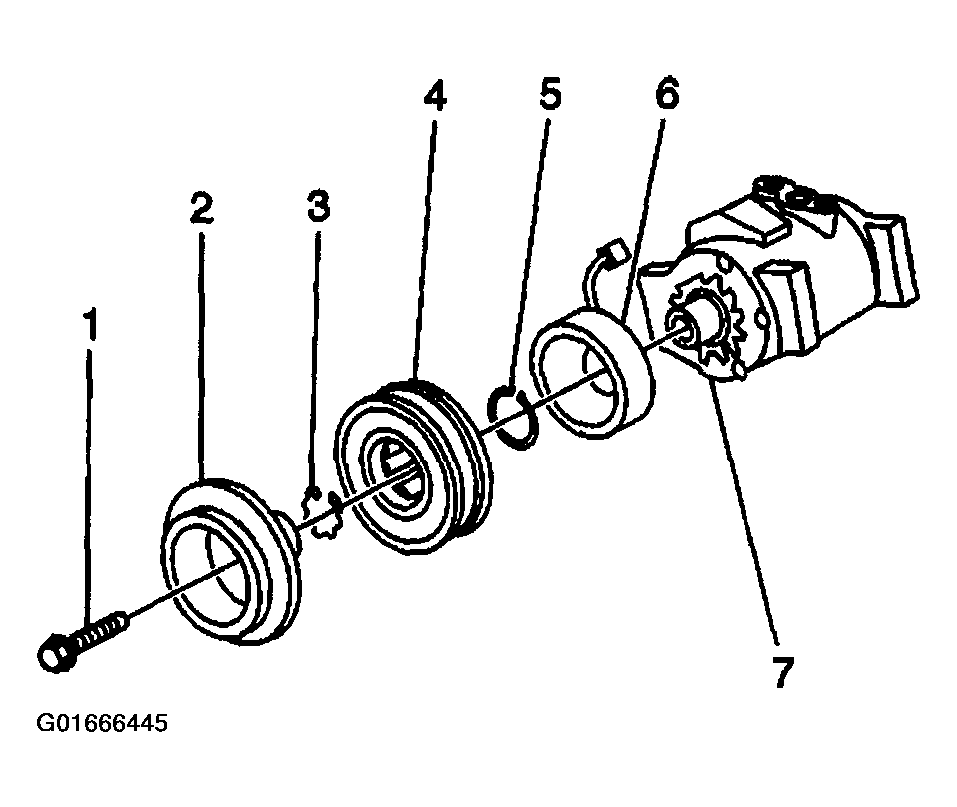

    Fig 1: Compressor Clutch Coil Components
    G01666445Courtesy of GENERAL MOTORS CORP.
