Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

If equipped, remove the IP sound insulator.
Disconnect the electrical connection from the blower motor.

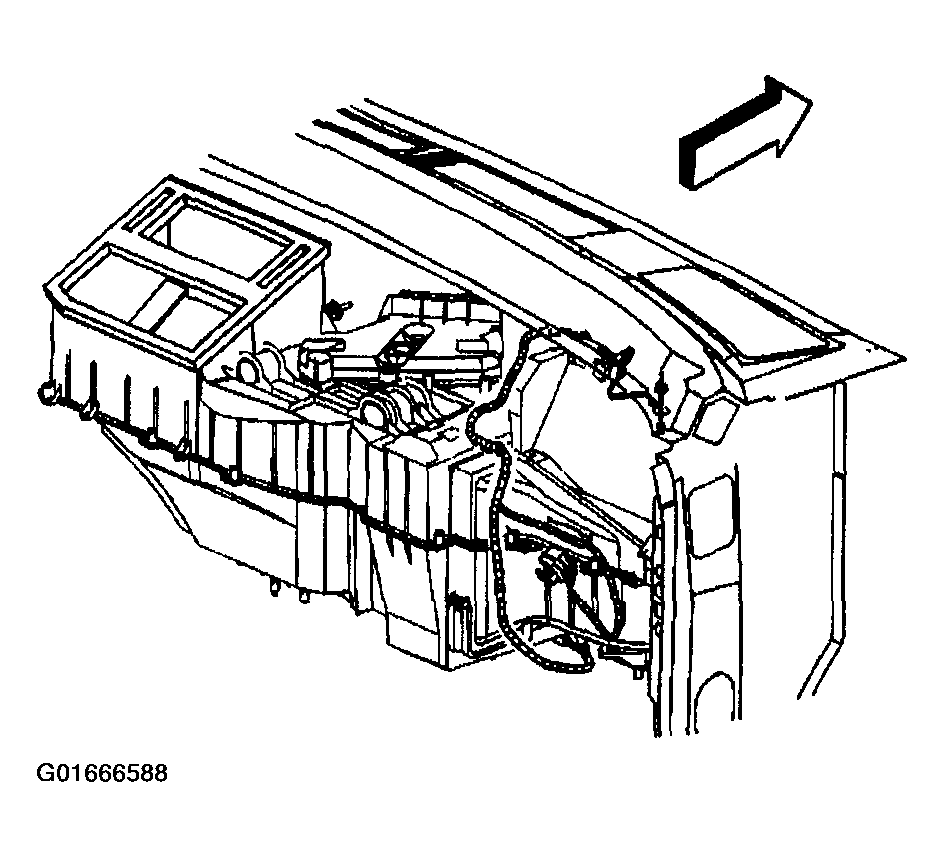

Fig 1: Locating Blower Motor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connection from the blower motor resistor.
Remove the blower motor resistor retaining screws.

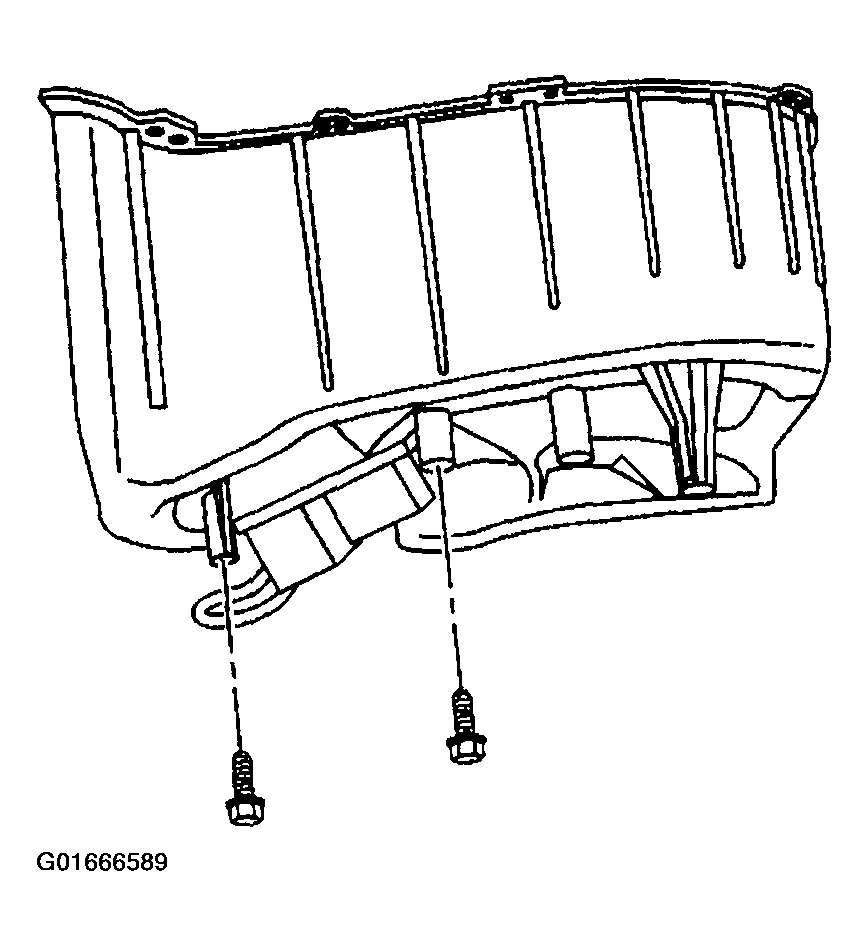

Fig 2: Blower Motor Resistor Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Remove the blower motor resistor.

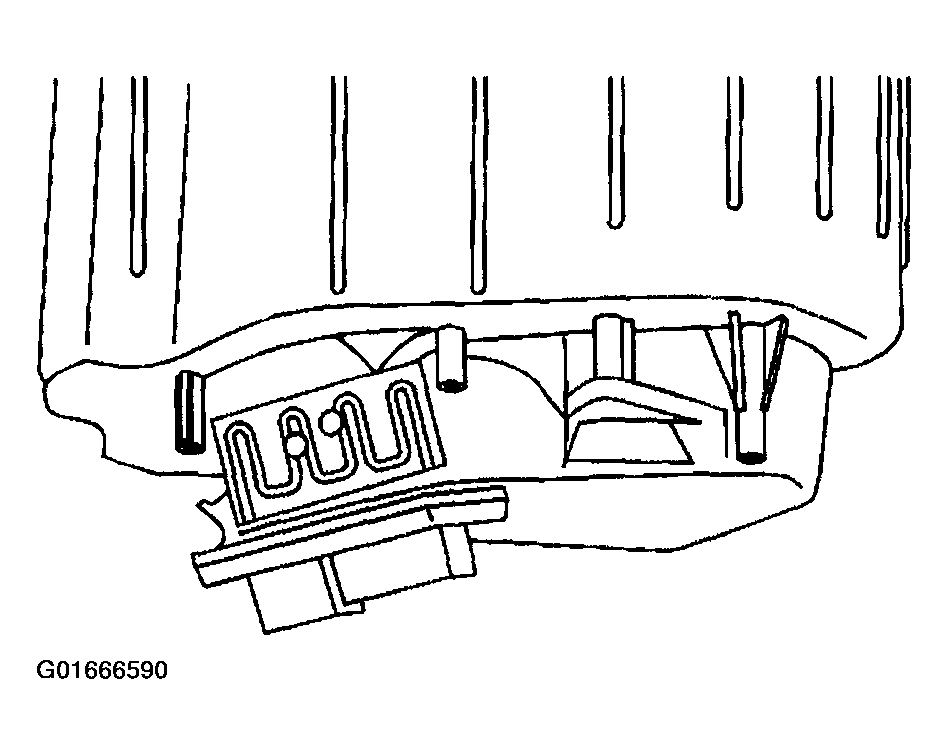

Fig 3: Blower Motor Resistor
Courtesy of GENERAL MOTORS CORP.
