Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the sound insulator panel.
  2. Remove the blower motor insulating cover screws.
  3. Disconnect the electrical connector from the blower motor.

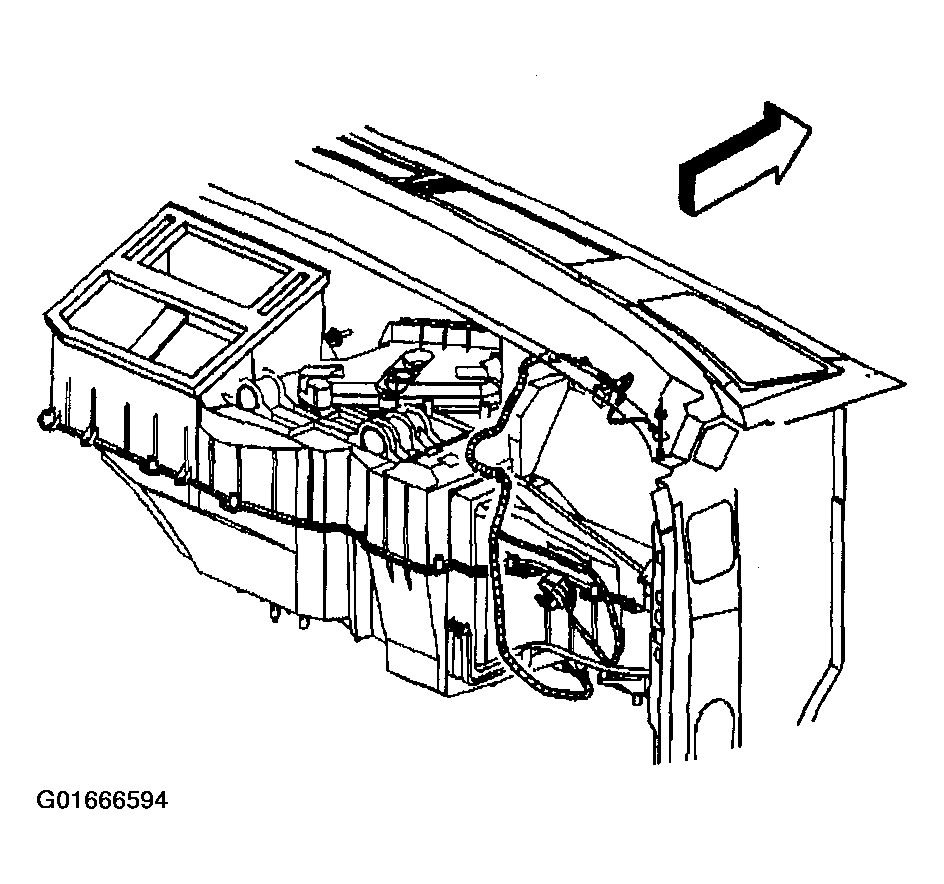

    4. Fig 1: Blower Motor Electrical Connector
    G01666594Courtesy of GENERAL MOTORS CORP.
  4. Remove the blower motor insulating cover.
  5. Pull the retaining tab down while turning the blower motor counter-clockwise in order to disengage the blower motor from the heater/ventilation module.

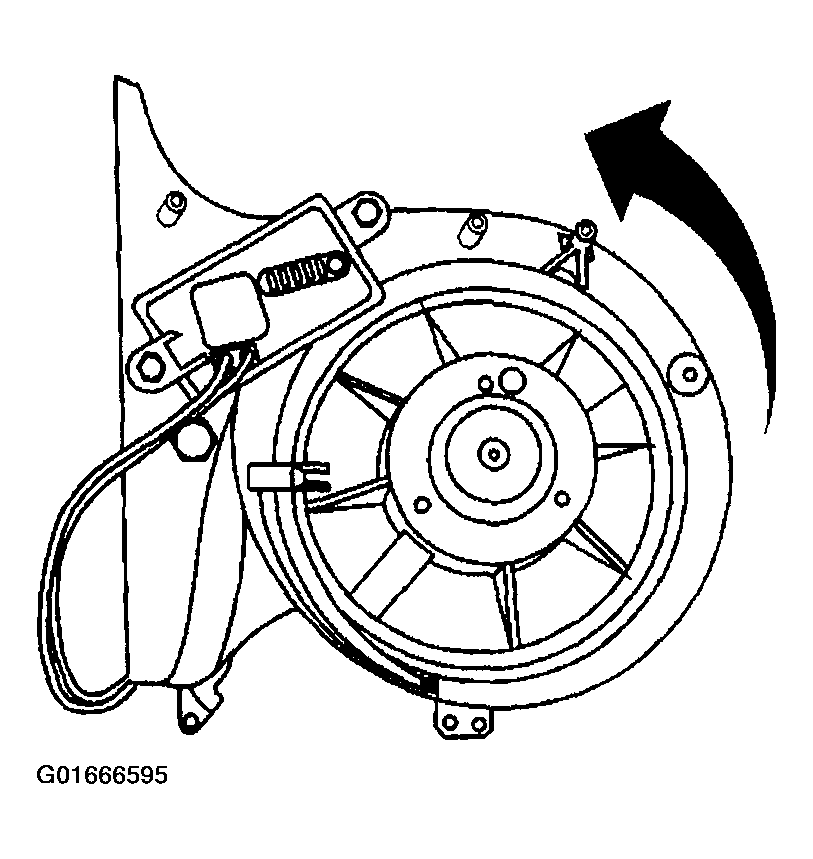

    Fig 2: Disengaging Blower Motor From Heater/Ventilation Module
    G01666595Courtesy of GENERAL MOTORS CORP.
  6. Remove the blower motor.

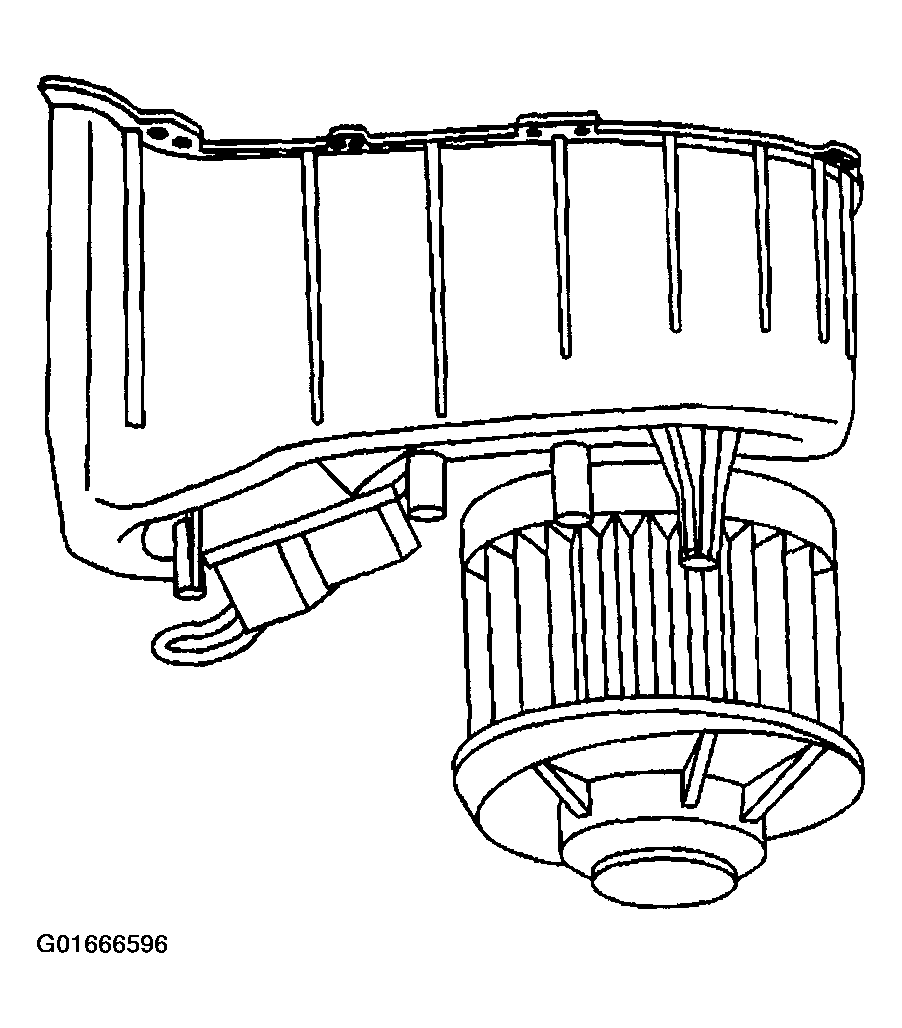

    Fig 3: Removing Blower Motor
    G01666596Courtesy of GENERAL MOTORS CORP.
