Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier.
  2. Remove the air tube from the side window outlet duct.

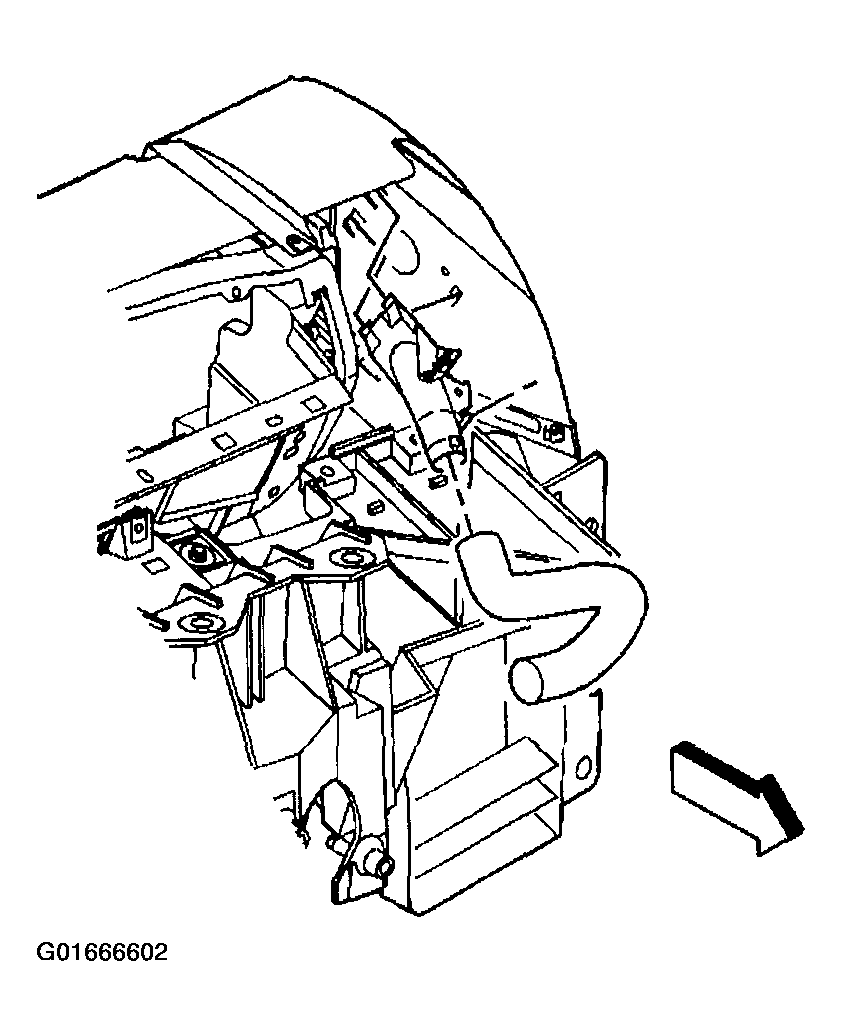

    3. Fig 1: Air Tube From Side Window Outlet Duct
    G01666602Courtesy of GENERAL MOTORS CORP.
  3. Remove the side window air outlet duct.
