Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier.
  2. Remove the air distribution duct retaining screws.
  3. Remove the air distribution duct.

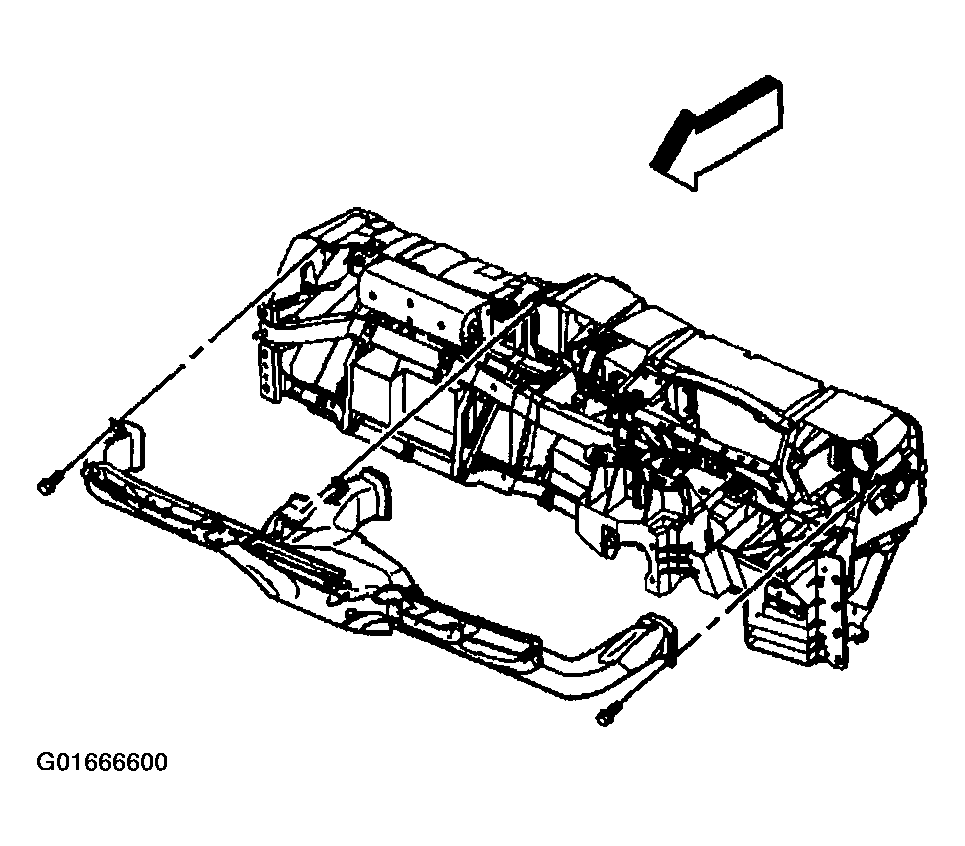

    Fig 1: Air Distribution Duct
    G01666600Courtesy of GENERAL MOTORS CORP.
