Heating Performance Diagnostic

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

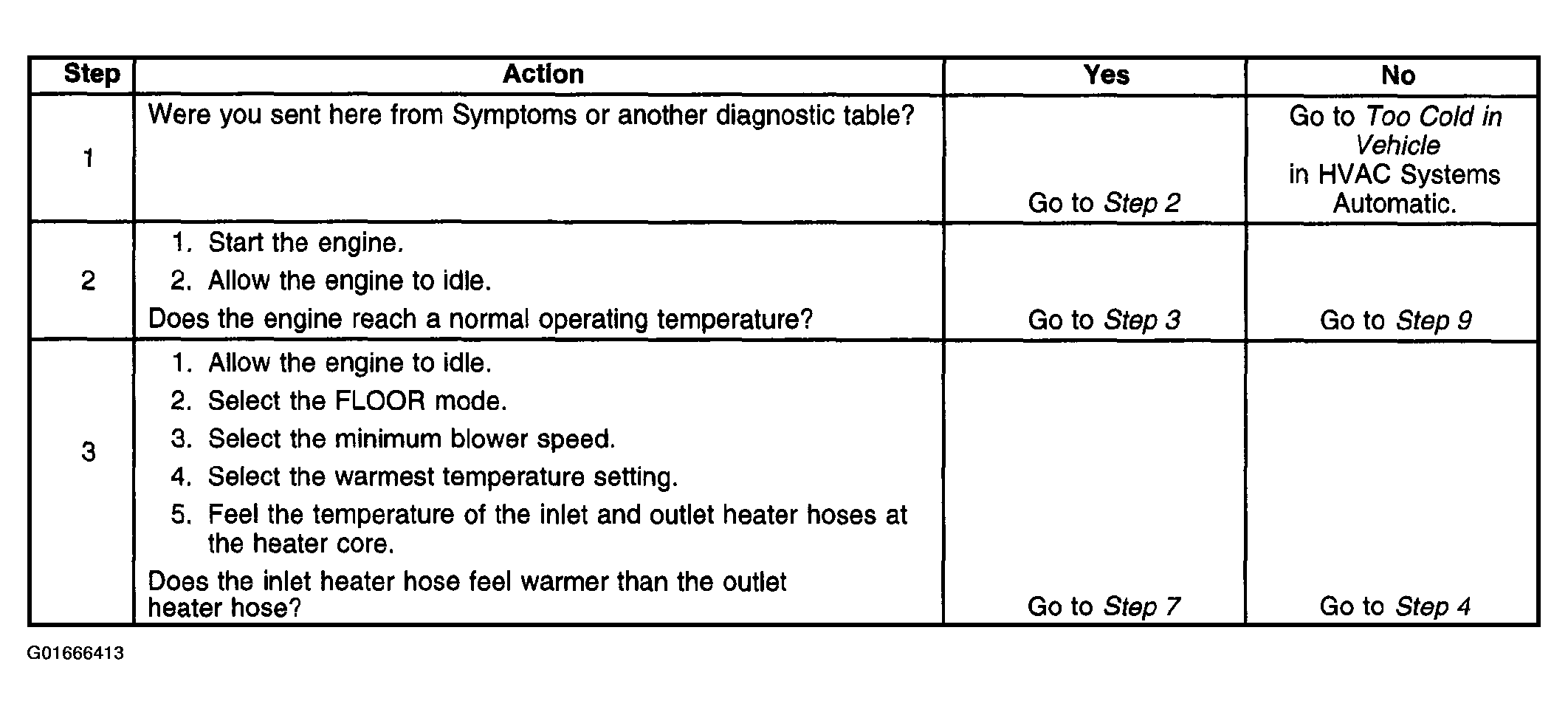

Fig 1: Heating Performance Diagnostic (Steps 1-3)
G01666413Courtesy of GENERAL MOTORS CORP.

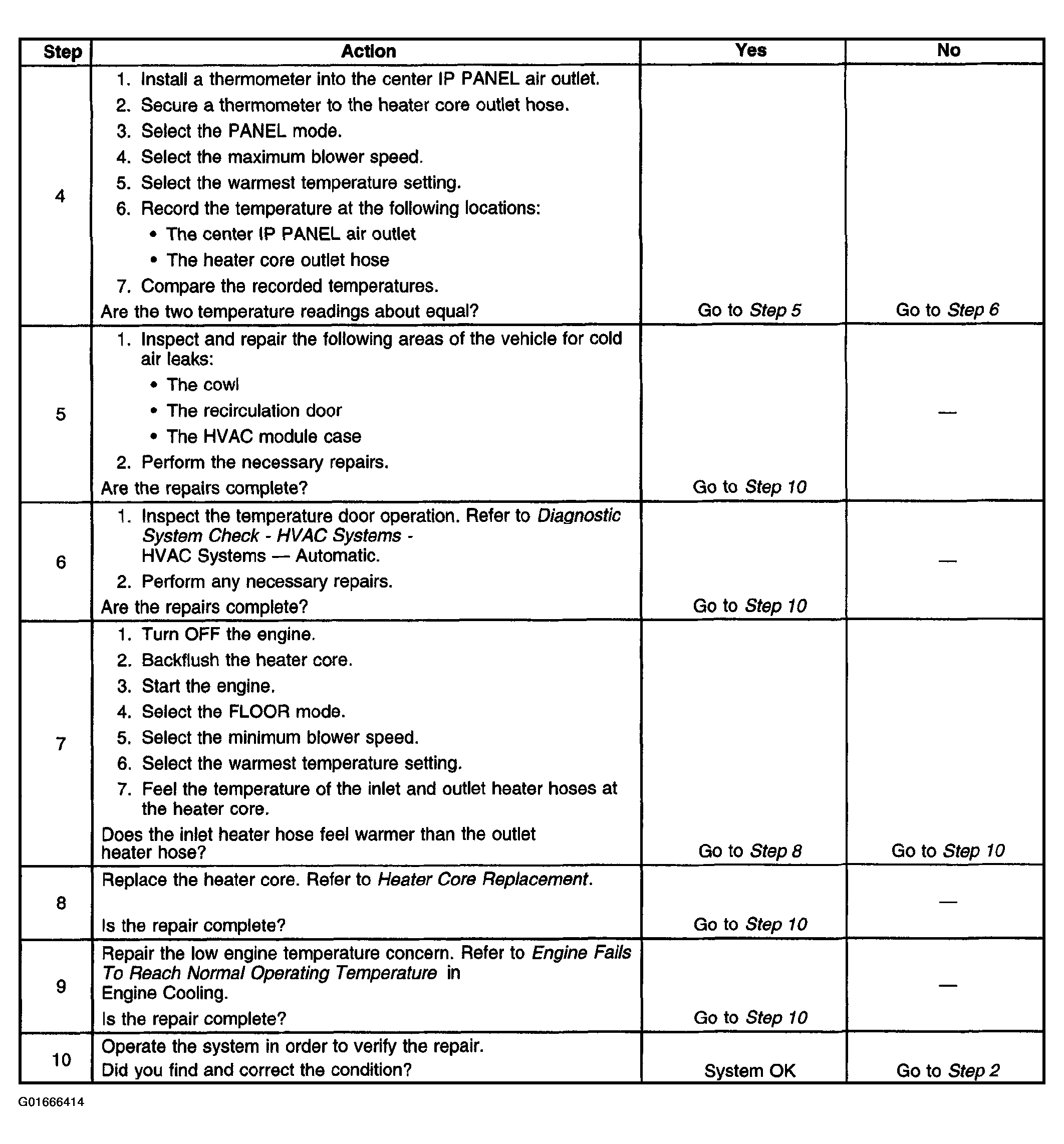

Fig 2: Heating Performance Diagnostic (Steps 4-10)
G01666414Courtesy of GENERAL MOTORS CORP.
