Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT .
  2. Disconnect the electrical connection from the recirculation actuator (1).

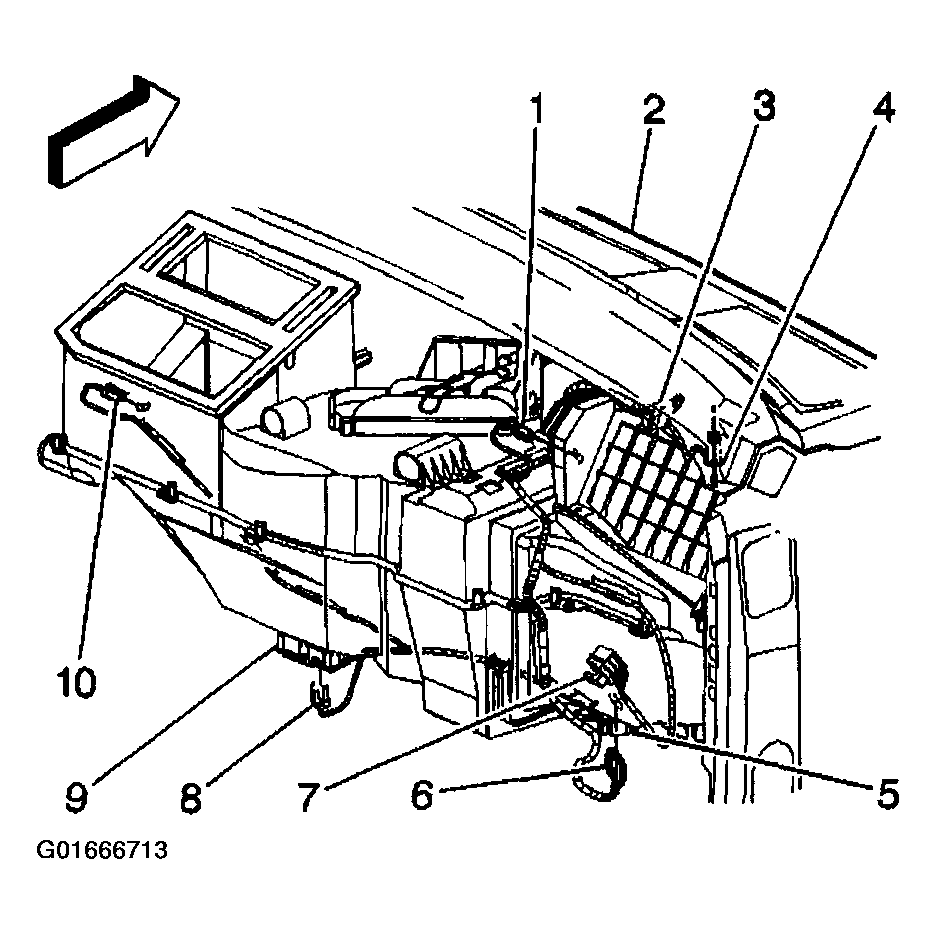

    Fig 1: Electrical Connection From Recirculation Actuator
    G01666713Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator retaining screws.
  4. Remove the recirculation actuator.

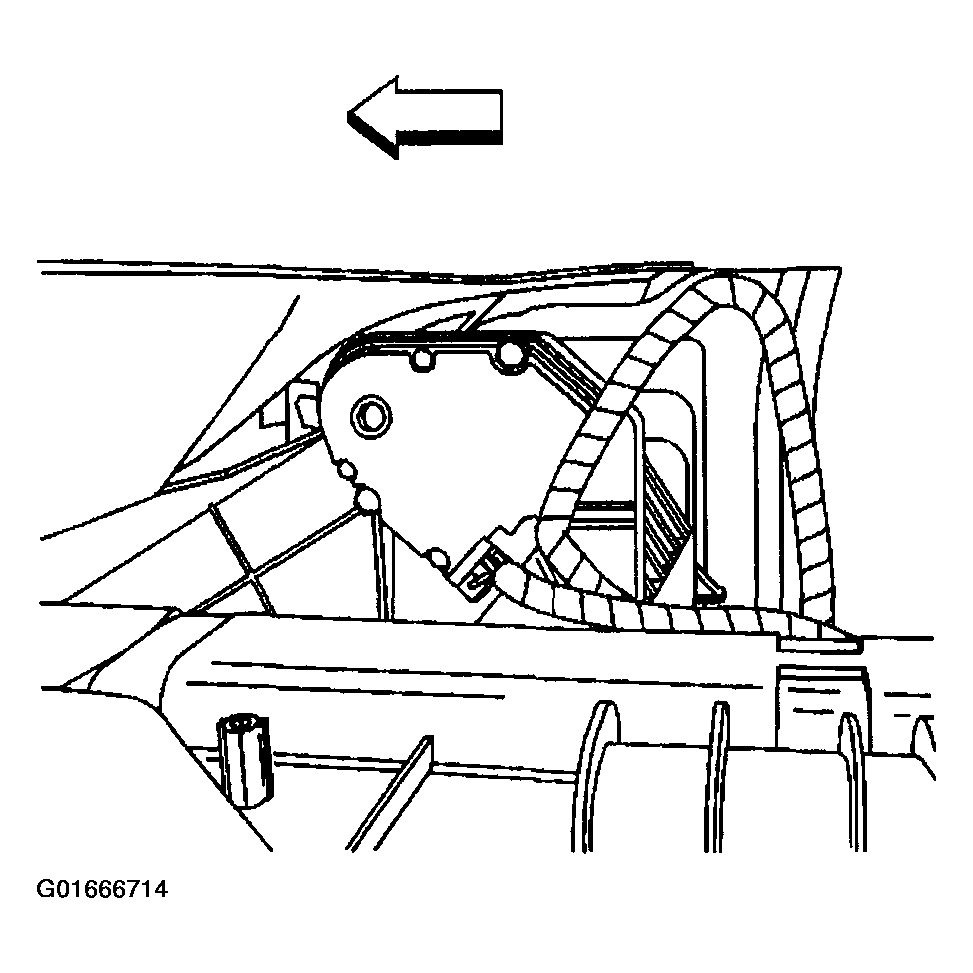

    Fig 2: Recirculation Actuator
    G01666714Courtesy of GENERAL MOTORS CORP.
