Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor air outlet duct extension (1) from the floor duct (2).

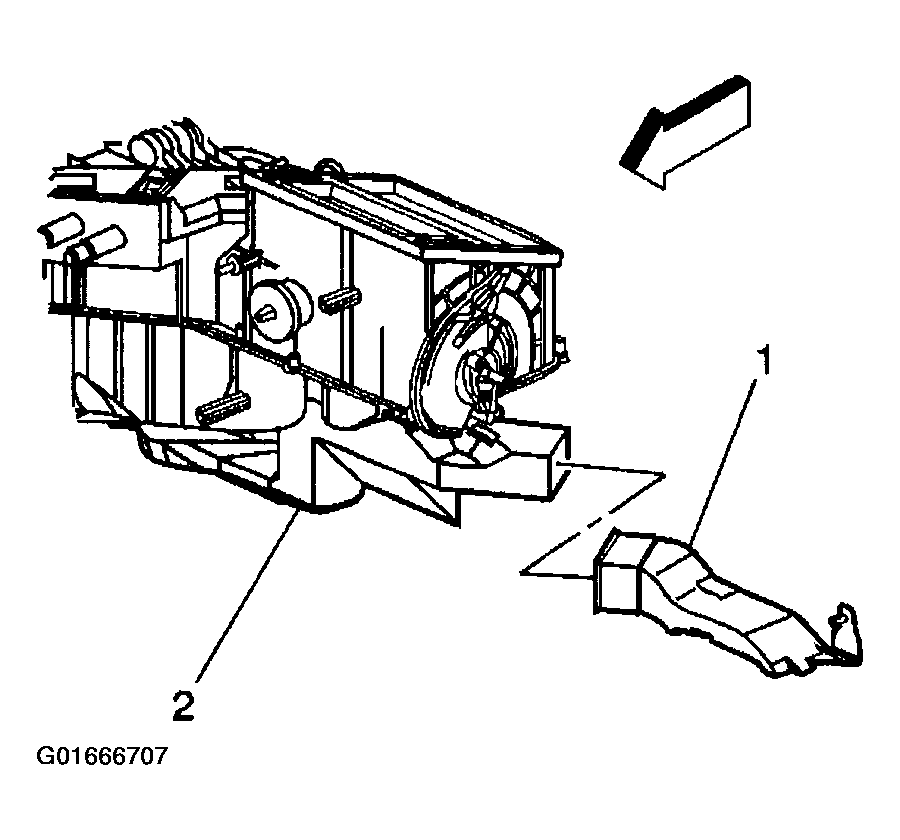

    2. Fig 1: Floor Air Outlet Duct Extension
    G01666707Courtesy of GENERAL MOTORS CORP.
  2. Remove the center console.
  3. Remove the screws from the center console duct.
  4. Remove the center console duct.
  5. Disconnect the electrical connection from the mode actuator (10).

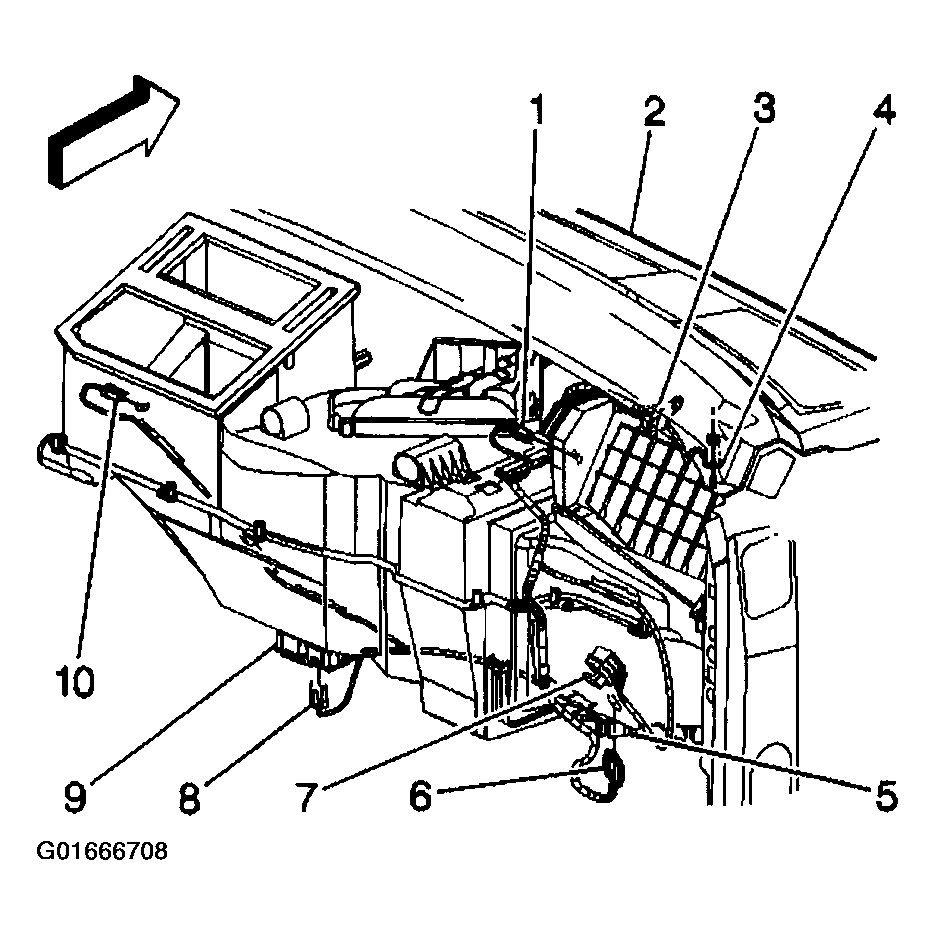

    Fig 2: Electrical Connection From Mode Actuator
    G01666708Courtesy of GENERAL MOTORS CORP.
  6. Remove the mode actuator mounting screws from the HVAC module.
  7. Remove the mode actuator as an assembly with the actuator cam.

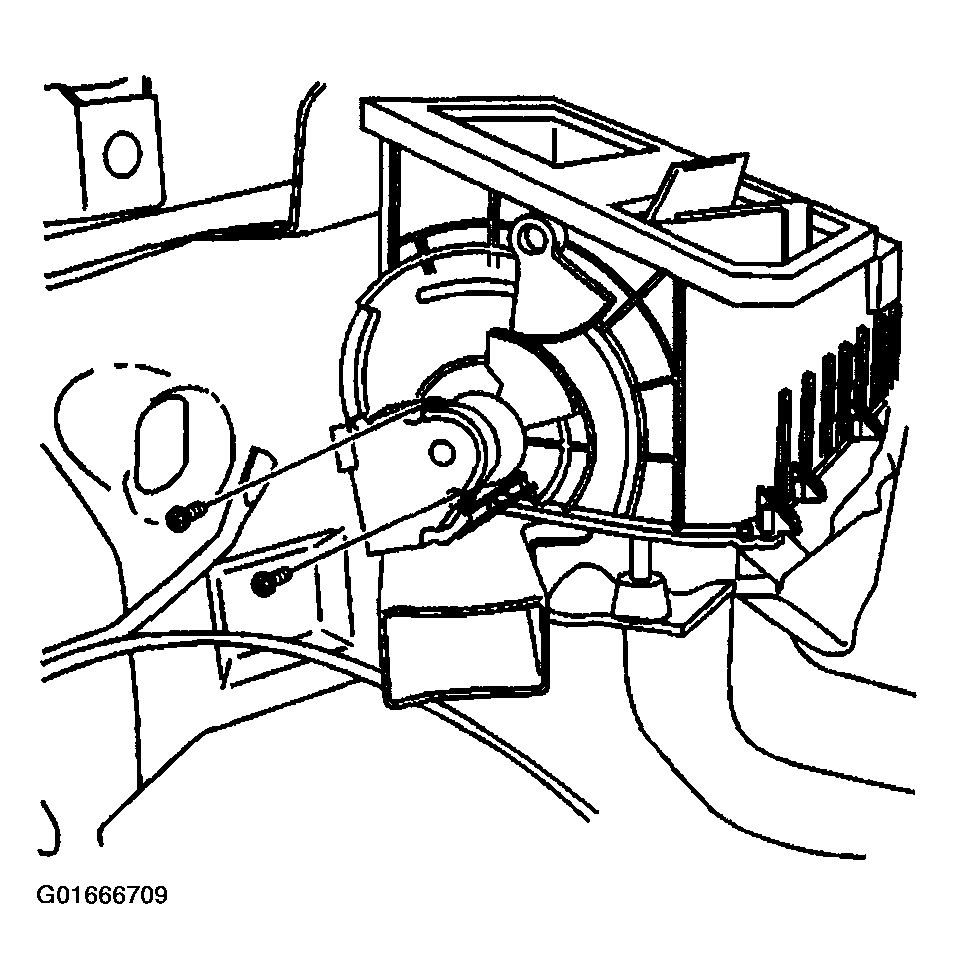

    Fig 3: Mode Actuator
    G01666709Courtesy of GENERAL MOTORS CORP.
