Wiper Blade Element Check

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper blades from the wiper arms. Refer to Wiper Arm Blade Replacement .
  2. Look down the length of the blade element.
  3. Replace the wiper blade element if the rubber element which contacts the glass is not on the centerline of the blade +/-15 degrees. Refer to Wiper Blade Element Replacement .

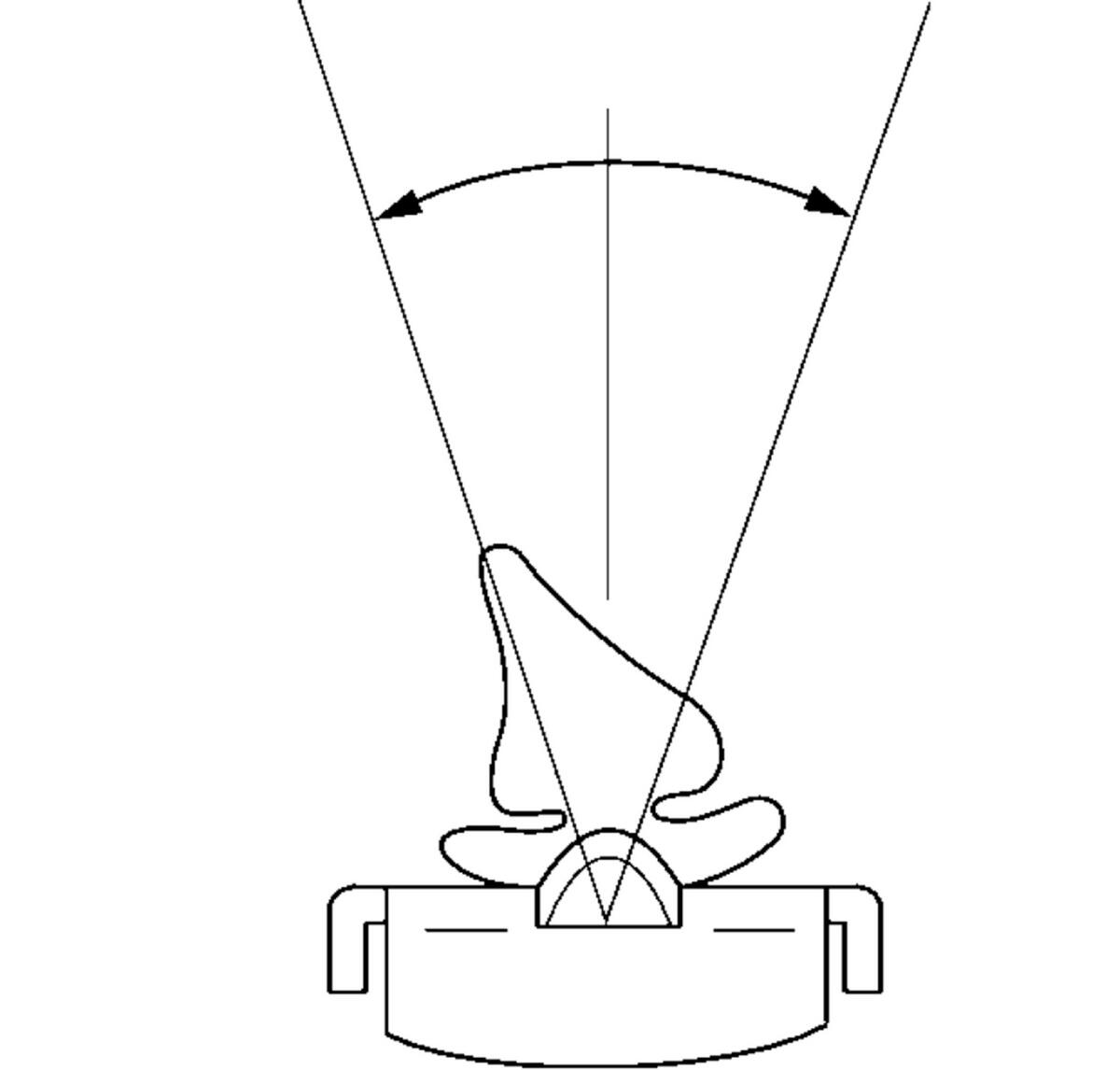

    Fig 1: Measuring Wiper Blade Element Centerline Contact
    GM334256Courtesy of GENERAL MOTORS CORP.
  4. Install the wiper blades on the wiper arms. Refer to Wiper Arm Blade Replacement .
