Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

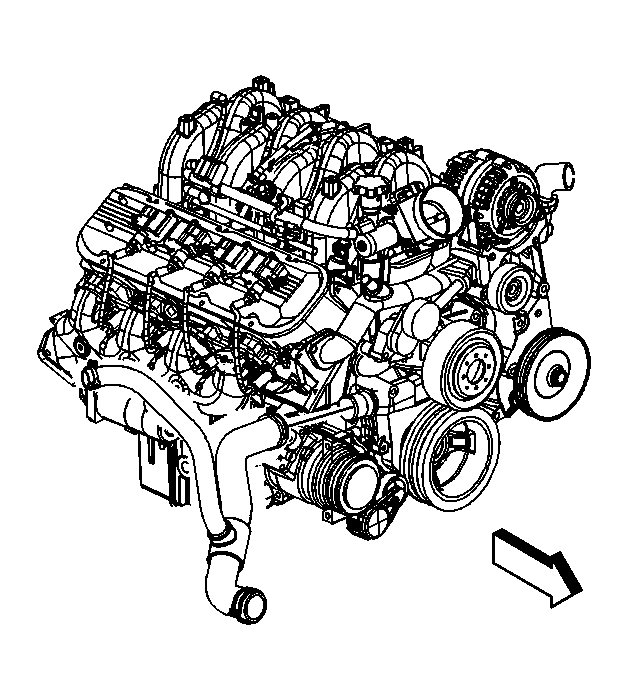

    Fig 1: Identifying Outlet Hose To The Water Pump
    GM751427Courtesy of GENERAL MOTORS CORP.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the drive belt. Refer to DRIVE BELT TENSIONER REPLACEMENT -- ACCESSORY .
  3. Remove the fan clutch. Refer to Fan Clutch Replacement .
  4. Reposition the outlet hose clamp at the water pump.
  5. Remove the outlet hose from the water pump.
    6. Fig 2: Thermostat Bypass Hose & Clamps
    GM470692Courtesy of GENERAL MOTORS CORP.
  6. Reposition the bypass hose clamps at the water pump and water crossover.
  7. Remove the bypass hose.
    8. Fig 3: View Of Water Pump & Gasket
    GM470790Courtesy of GENERAL MOTORS CORP.
  8. Remove the water pump bolts.
  9. Remove the water pump.
  10. Remove and discard the water pump gaskets.
