Engine Block Draining

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Left & Right Engine Block Coolant Drain Plugs
    GM260138Courtesy of GENERAL MOTORS CORP.
  1. Drain the cooling system, refer to the above procedure.
  2. If equipped with the 4.8L, 5.3L or 6.0L engine, remove the left and right engine block coolant drain plugs.

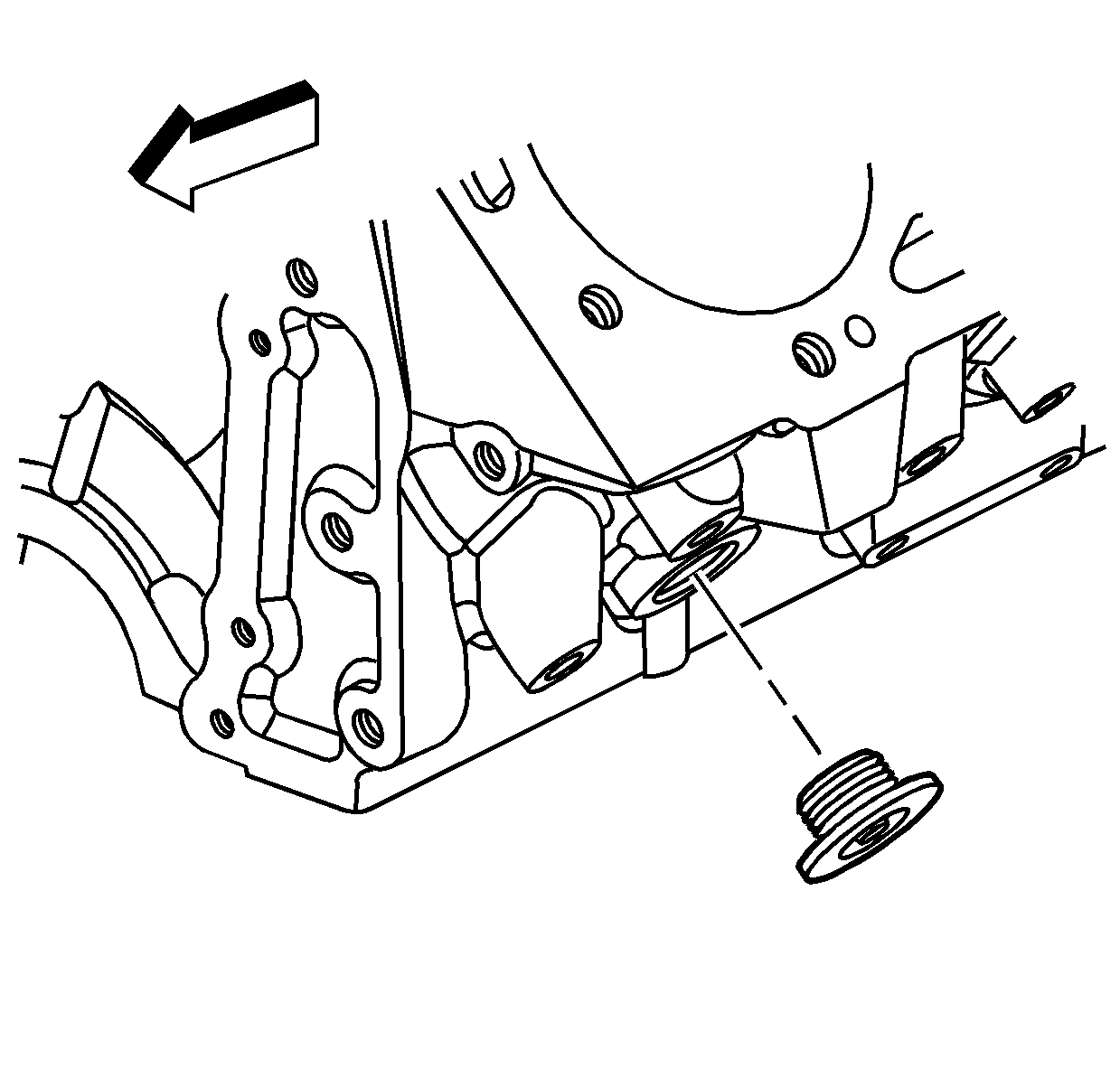

    3. Fig 2: View Of Engine Coolant Drain Hole Plug
    GM635657Courtesy of GENERAL MOTORS CORP.
  3. If equipped with the 8.1L engine, remove the left and right engine block coolant drain plugs.
  4. Remove the engine block coolant heater, if equipped. Refer to COOLANT HEATER REPLACEMENT (DEALER INSTALLATION - 6.0L Engine)  or Coolant Heater Replacement (4.8L, 5.3L, and 6.0L Engines)  or Coolant Heater Replacement (8.1L Engine) .
  5. Allow the engine block to drain completely.
  6. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the drain plugs.
  7. Reinstall the engine block coolant drain plugs.

    Tighten:

    • Tighten the 4.8L, 5.3L or 6.0L engine block coolant drain plug to 60 N.m (44 lb ft).
    • Tighten the 8.1L engine block coolant drain plug to 60 N.m (44 lb ft).

  8. Install the engine block coolant heater, if equipped. Refer to COOLANT HEATER REPLACEMENT (DEALER INSTALLATION - 6.0L Engine)  or Coolant Heater Replacement (4.8L, 5.3L, and 6.0L Engines)  or Coolant Heater Replacement (8.1L Engine) .
  9. Fill the cooling system, refer to the above procedure.
