Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia lower support to the front bumper fascia.

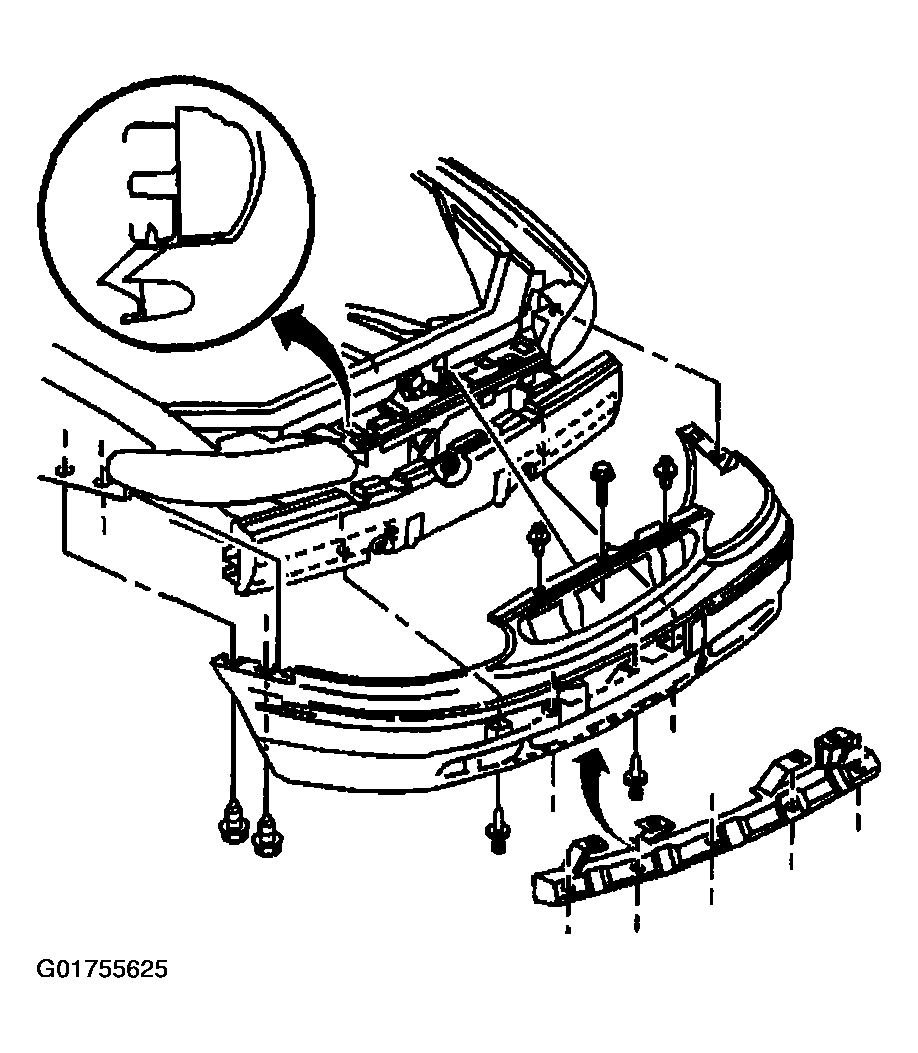

    2. Fig 1: Identifying Front Bumper Lower Fascia Support
    G01755625Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in retainers to the front bumper fascia lower support at the front bumper fascia.
  3. Install the push-in retainers to the front bumper impact bar.
