Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the push-in retainers from the front bumper energy absorber using the J 38778  .

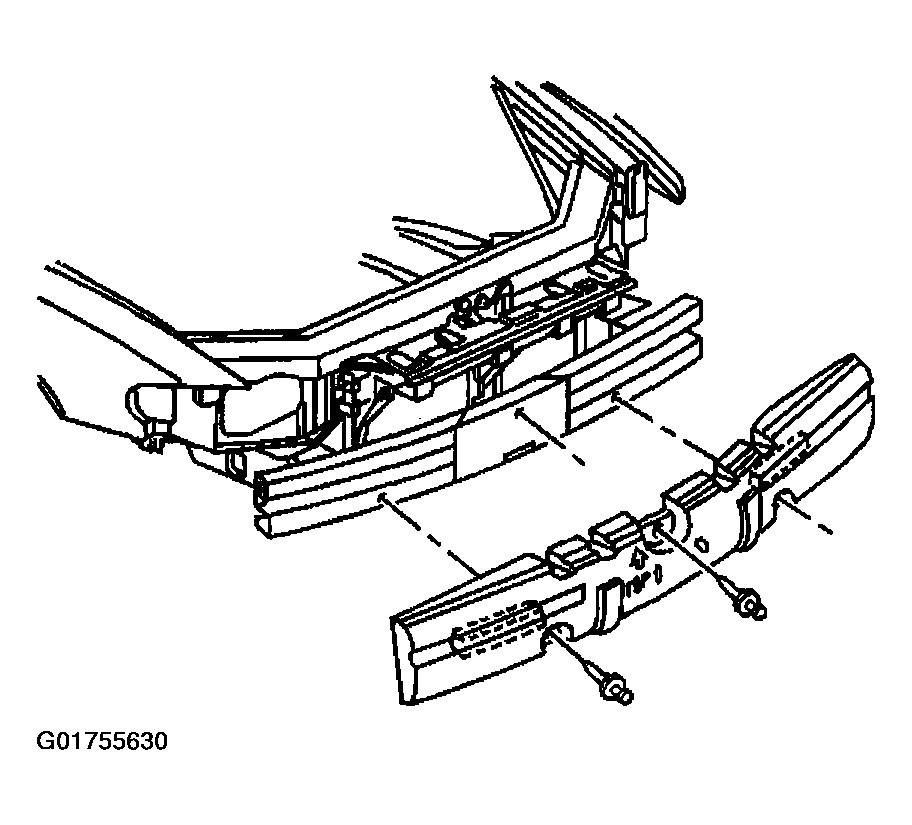

    3. Fig 1: Identifying Front Energy Absorber
    G01755630Courtesy of GENERAL MOTORS CORP.
  3. Remove the front bumper energy absorber from the front bumper impact bar.
