Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper energy absorber to the front bumper impact bar.

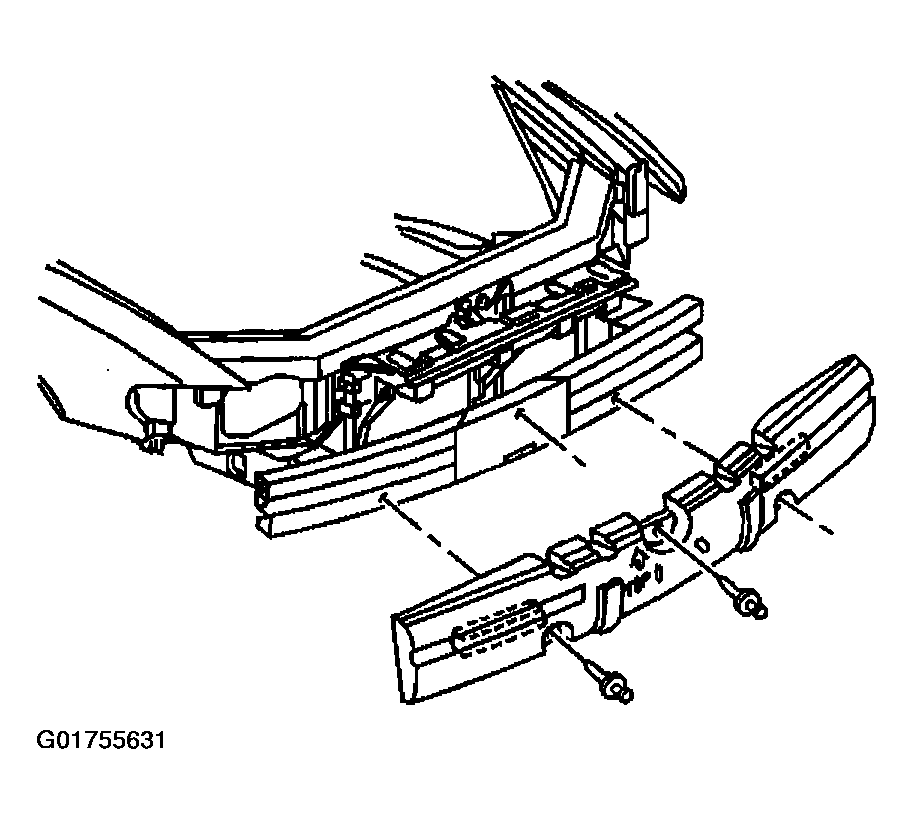

    2. Fig 1: Identifying Front Energy Absorber
    G01755631Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
