Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

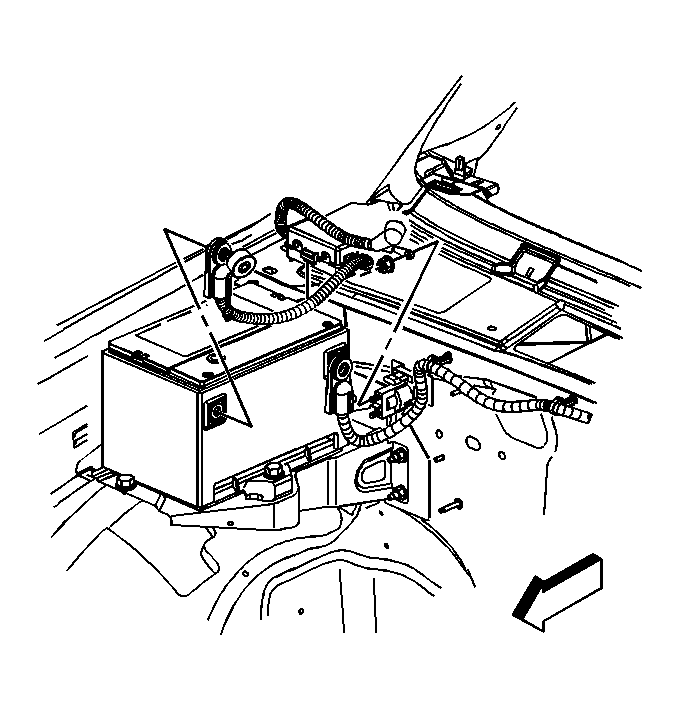

    Fig 1: Auxiliary Battery
    GM662692Courtesy of GENERAL MOTORS CORP.
  1. Remove the auxiliary battery. Refer to Battery Relay Replacement - Auxiliary .
  2. Reposition the boot to expose the stud.
  3. Remove the auxiliary battery positive cable nut.
  4. Unclip the mega fuse from the auxiliary battery tray.
  5. Remove the auxiliary battery positive cable.
