Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

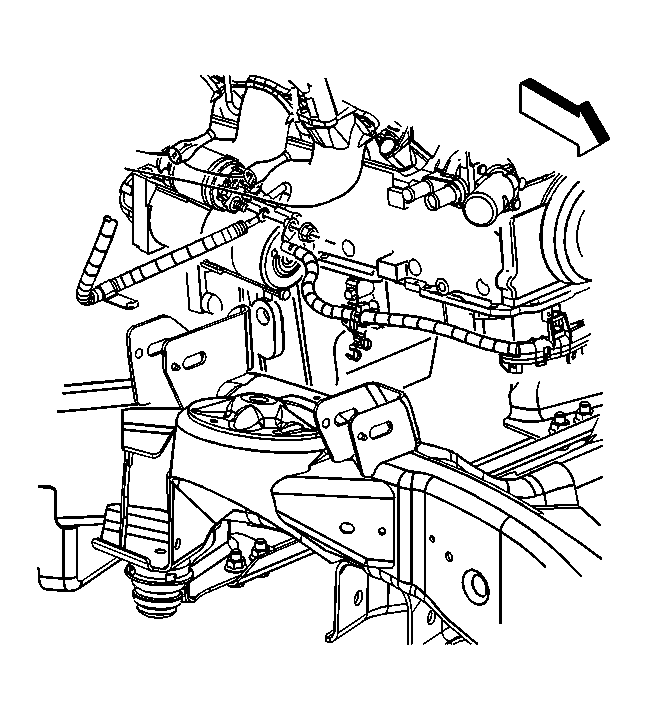

    Fig 1: View of Positive Cable Nut
    GM662690Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary positive battery cable.
  2. Install the auxiliary positive battery cable to the starter.
  3. Install the positive cable to the starter.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the positive cable nut.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    5. Fig 2: View of Auxiliary Battery Positive Cable Clip Bolt
    GM662688Courtesy of GENERAL MOTORS CORP.
  5. Install the auxiliary battery cable clip bolt to the frame.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  6. Lower the vehicle.
    7. Fig 3: View of Auxiliary Battery Positive Cable
    GM662684Courtesy of GENERAL MOTORS CORP.
  7. Install the auxiliary positive battery cable clip to the auxiliary battery tray.
  8. Install the auxiliary battery positive cable to the auxiliary battery relay.
  9. Install the auxiliary battery positive cable nut.

    Tighten:  Tighten the auxiliary battery positive cable nut to 8 N.m (71 lb in).

  10. Position the boot to cover the stud.
    11. Fig 4: View of Battery Ground Negative Cable
    GM662415Courtesy of GENERAL MOTORS CORP.
  11. Connect the auxiliary negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
