Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2:  Listen for an audible click when the Start 1 relay operates. Turn the ignition switch back and forth from the ON to START positions. Repeat this as necessary.
  2. 3:  Tests for voltage at the coil side of the Start 1 relay. The PCM IGN fuse supplies power to the coil side of the Start 1 relay.
  3. 4:  Verifies that the PCM is providing ground to the Start 1 relay.
  4. 5:  Tests if ground is constantly being applied to the Start 1 relay.

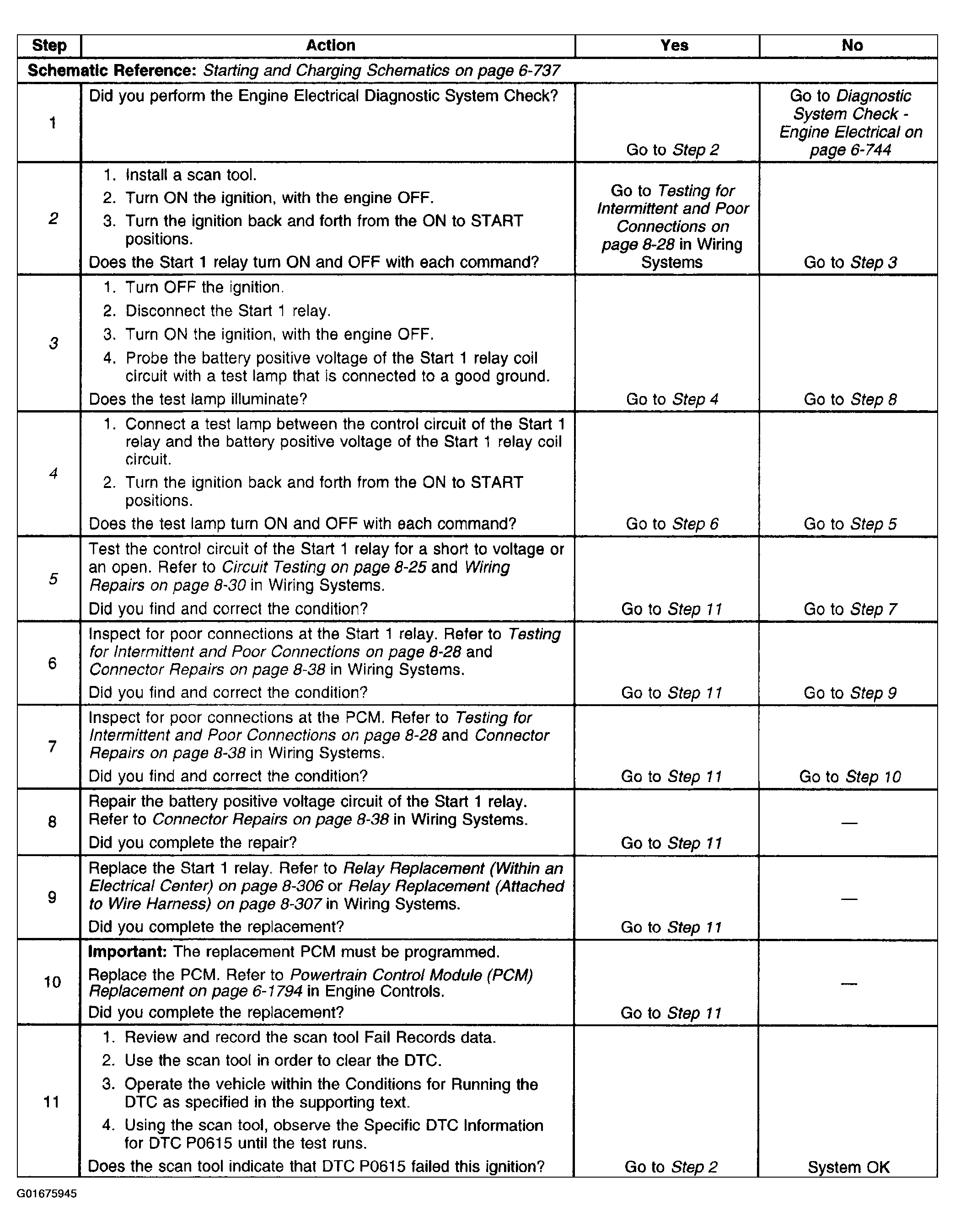

Fig 1: DTC P0615
G01675945Courtesy of GENERAL MOTORS CORP.
